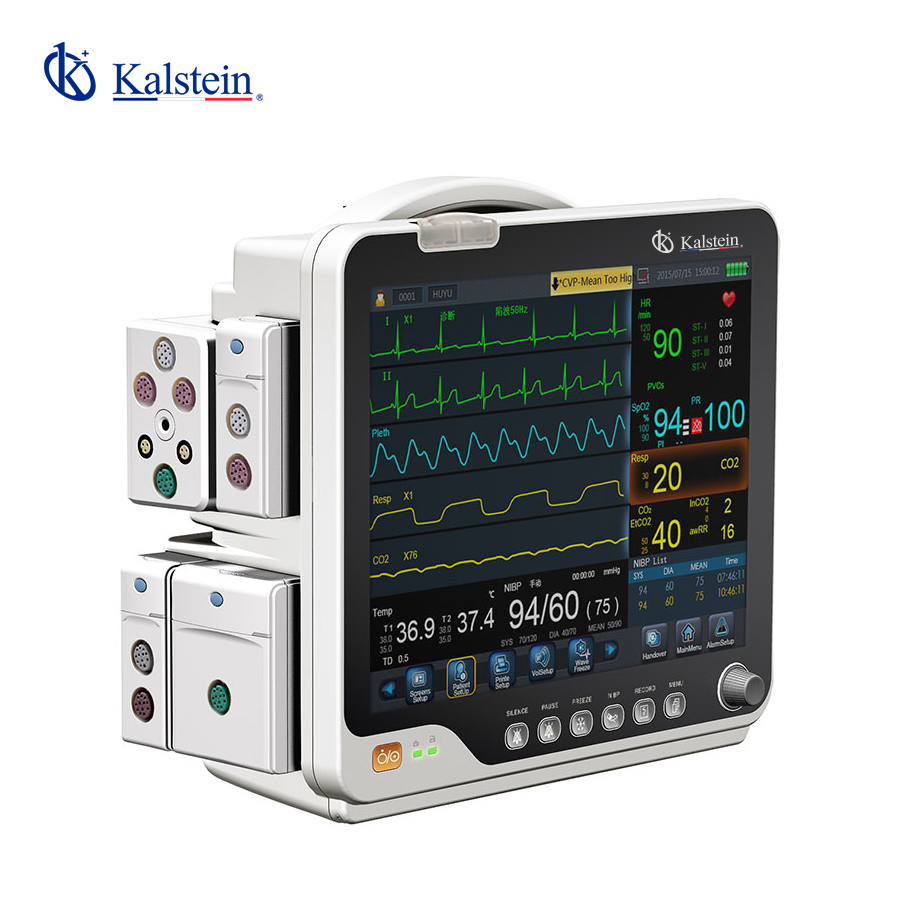

Patient Monitors YR02176

The Patient Monitor YR02176 is an essential tool in medical environments such as operating theaters and intensive care units. Featuring a 15-inch LCD screen and a full modular parameter design, this monitor is equipped with standard parameters like ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. It supports a standard configuration that includes a 5-lead ECG, dual temperature, SpO2, and non-invasive blood pressure measurement. Additionally, it offers optional features such as Masimo/Nellcor SpO2, dual-IBP, and more advanced capabilities like BIS and thermal recording. This versatility makes the YR02176 monitor adaptable to a diverse range of clinical applications, offering accurate, real-time data critical for patient care.

Price in the Market

The Patient Monitor YR02176, given its comprehensive features and advanced medical capabilities, is competitively priced in the market. Typically, such monitors range from approximately $4,200 to $5,000. This reflects the advanced technology and precision monitoring capabilities that the YR02176 offers, making it a valuable investment for medical facilities aiming to optimize patient monitoring and diagnostics.

Frequently Asked Questions

1. Can this monitor be used for both adult and pediatric patients? The YR02176 is designed to accommodate both adult and pediatric patients, supporting a wide range of heart rate monitoring capabilities. 2. What are the optional features available? Additional options include dual-IBP, AG, C.O., and a 3/12-lead ECG among others, allowing customization based on clinical needs.

Advantages and Disadvantages

The primary advantages of the YR02176 include its modularity, comprehensive parameter monitoring, and adaptability for various medical scenarios. It also offers detailed data capture with high accuracy. However, one of the potential disadvantages is the initial learning curve associated with its full feature use, particularly for staff not familiar with advanced monitors.

Usage in the Field

In practical scenarios, the YR02176 is utilized for continuous monitoring of vital signs in ICUs and during surgeries. Its robust ECG capabilities and optional upgrades provide critical data that assists healthcare providers in making informed decisions in real-time situations.

Recommendations

To ensure optimal performance, it’s beneficial to regularly calibrate and update the system as needed. Proper training on its various functionalities can significantly enhance the efficacy and speed of operation, thus improving patient outcomes.

Features

• 15-inch LCD screen
• Standard and optional configurations for versatility
• Real-time, accurate data processing
• Wide range of customizable parameters

Technical Specifications

Model		YR02176
ECG	Lead mode	5 Leads(RA,LA,LL,RL,V)
	Connection method	I, II, III,AVR,AVL,AVF,V
	Lead Mode	3 Leads (RA,LA,LL)
	Connection method	I, II,III
	Waveform	1ch
	Gain	x250, x500, x1000, x2000
	HR Range	Adult: 15~300bpm
	Neo/Ped	15~350bpm
	Accuracy	±1% or ±1bpm
	Resolution	1bpm
	Sensitivity	>200(uVp-p)
	Differential input impedance	≥5MΩ
	ST segment Monitoring Range
	Measure Range	-2.0~+2.0mV
	Measure Accuracy	-0.8mV~+0.8mV
Heart Rate	Measuring range	20~300bpm
	Accuracy	±1bpm
	Resolution	1bpm
	Sensitivity	>200UVp-p
Respiration	Method	Impedance between R-F(RA-LL)
	Differential Input Impedance	>2.5MΩ
	Measuring Impedance Range	0.3~3.0 MΩ
	Base line Impedance Range	200~4000Ω
	Bandwidth	0.1~2.5Hz
	Respiration Rate	Adult: 2~120BrPM
	Neo/Ped	0~150BrPM
	Resolution	1 BrPM
	Accuracy	±2 BrPM
	Alarm	10~40S
NIBP	Method	Oscillometric
	Mode	Manual/Auto/STAT
	Measuring Interval in AUTO Mode	1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
	Measuring Period in STAT Mode	5 Min
	Pulse Rate Range	40~240bpm
	Alarm Type	SYS, DIA, MEAN
	Resolution
	Pressure	1mmHg
	Accuracy	Maximum Mean error: 5mmHg
	Maximum Standard deviation	8mmHg
SPO2	Display	Number of SPO2,waveform of capacity,Pulse
	Measuring range	0~100%
	Resolution	1%
	Accuracy	70~100% (±2%)
	Alarm system	Audio-video alarm
	Pulse rate range	0~300bpm
TEMP	Channel	2
	Measuring and Alarm Range	0~50ºC
	Resolution	0.1ºC
	Accuracy	0.1ºC
	Actualization interval	about 1 Second.
	Average Time Constant	<10 Second.
