Description

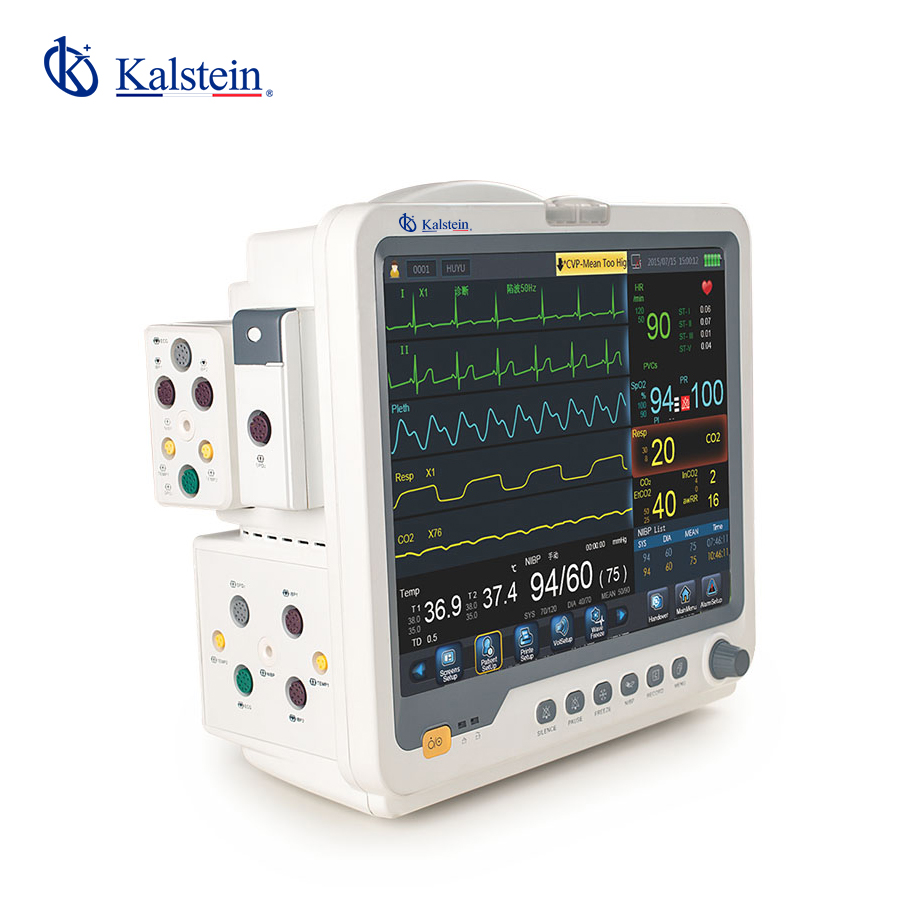

The Multi-parameter patient monitor YR02178 // YR02179 is a state-of-the-art medical device designed for comprehensive patient monitoring in critical environments such as Operating Theaters (OT) and Intensive Care Units (ICU). Featuring a vibrant LCD screen, this semi-modular monitor offers flexible configurations and includes vital standard parameters such as ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, ensuring accurate and reliable patient data. With optional features like a touch screen and enhanced measurement parameters, the YR02178 // YR02179 adapts to diverse clinical needs, making it an indispensable tool in modern healthcare settings.
Market Price
The multi-parameter patient monitors such as the YR02178 // YR02179 are competitively priced in the market, with an average price range typically falling between $3,100 to $3,900 USD. This competitive pricing reflects the advanced capabilities and durability of the equipment, ensuring healthcare facilities get optimal value for their investment.
Frequently Asked Questions
What is the user interface like for this monitor? The monitor features an intuitive user interface with optional touch screen capability for ease of use.
Can the YR02178 // YR02179 be customized? Yes, it offers modular configurations and a range of optional parameters including advanced ECG leads, additional SPO2 technologies, and more to suit specific clinical requirements.
Advantages and Disadvantages
Advantages: The monitor is highly flexible due to its semi-modular design, supports a comprehensive range of vital sign parameters, and offers optional features to enhance functionality.
Disadvantages: The initial configuration might require additional investments for certain advanced options, and full feature utilization may require staff training.
Product Use in the Field
In practical scenarios, the Multi-parameter patient monitor YR02178 // YR02179 excels in environments demanding acute patient observation. It is frequently used in ICUs and OTs where continuous monitoring of multiple vital parameters is crucial. Its reliable real-time data helps medical professionals make informed and timely decisions, thus improving patient outcomes.
Recommendations
To maximize the effectiveness of the YR02178 // YR02179, ensure regular maintenance checks and firmware updates. Engage your healthcare team with training sessions to harness the full potential of its features. For optimal performance, consider integrating it with compatible accessories recommended by Kalstein Plus.
Features
- LCD screen with semi-modular design
- Standard parameters include ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Optional parameters like Masimo/Nellcor SpO2, Dual-IBP, and more
- Configurations to suit specific medical environments
- Real-time monitoring with high accuracy and sensitivity
Technical Specifications
| Model | YR02178 | YR02179 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) | |
| Connection method | I, II, III,AVR,AVL,AVF,V | ||
| Lead Mode | 3 Leads (RA,LA,LL) | ||
| Connection method | I, II,III | ||
| Waveform | 1ch | ||
| Gain | x250, x500, x1000, x2000 | ||
| HR Range | Adult: 15~300bpm | ||
| Neo/Ped | 15~350bpm | ||
| Accuracy | ±1% or ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200(uVp-p) | ||
| Differential input impedance | ≥5MΩ | ||
| ST segment Monitoring Range | |||
| Measure Range | -2.0~+2.0mV | ||
| Measure Accuracy | -0.8mV~+0.8mV | ||
| Heart Rate | Measuring range | 40~240bpm | |
| Accuracy | ±3bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200UVp-p | ||
| Respiration | Method | Impedance between R-F(RA-LL) | |
| Differential Input Impedance | >2.5MΩ | ||
| Measuring Impedance Range | 0.3~3.0 MΩ | ||
| Base line Impedance Range | 200~4000Ω | ||
| Bandwidth | 0.1~2.5Hz | ||
| Resp. Rate | Adult: 7~120BrPM | ||
| Neo/Ped | 7~150BrPM | ||
| Resolution | 1 BrPM | ||
| Accuracy | ±2 BrPM | ||
| Alarm | 10~40S | ||
| NIBP | Method | Oscillometric | |
| Mode | Manual/Auto/STAT | ||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Measuring Period in STAT Mode | 5 Min | ||
| Pulse Rate Range | 40~240bpm | ||
| Alarm Type | SYS, DIA, MEAN | ||
| Resolution | |||
| Pressure | 1mmHg | ||
| Accuracy | Maximum Mean error: 5mmHg | ||
| Maximum Standard deviation | 8mmHg | ||
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse | |
| Measuring range | 0~100% | ||
| Resolution | 1% | ||
| Accuracy | 70~99% (±2%) | ||
| Alarm system | Audio-video alarm | ||
| Pulse rate range | 0~300bpm | ||
| TEMP | Channel | 2 | |
| Measuring and Alarm Range | 0~50ºC | ||
| Resolution | 0.1ºC | ||
| Accuracy | 0.1ºC | ||
| Actualization interval | about 1 Second. | ||
| Average Time Constant | <10 Second. | ||
