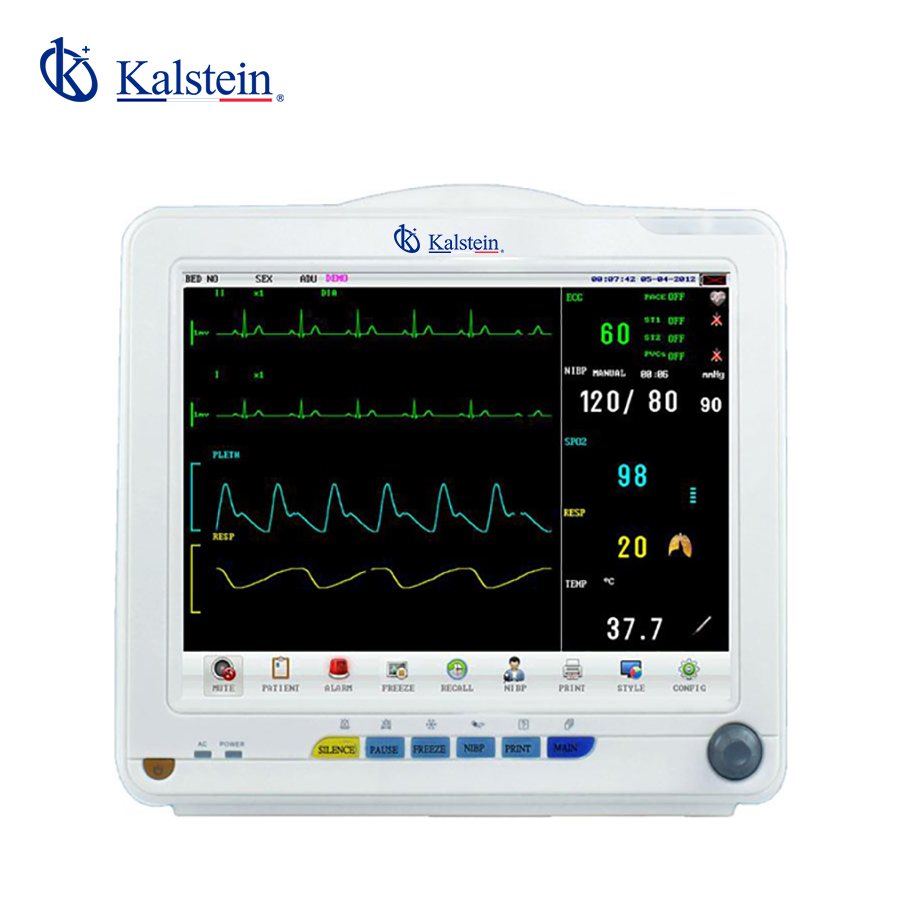

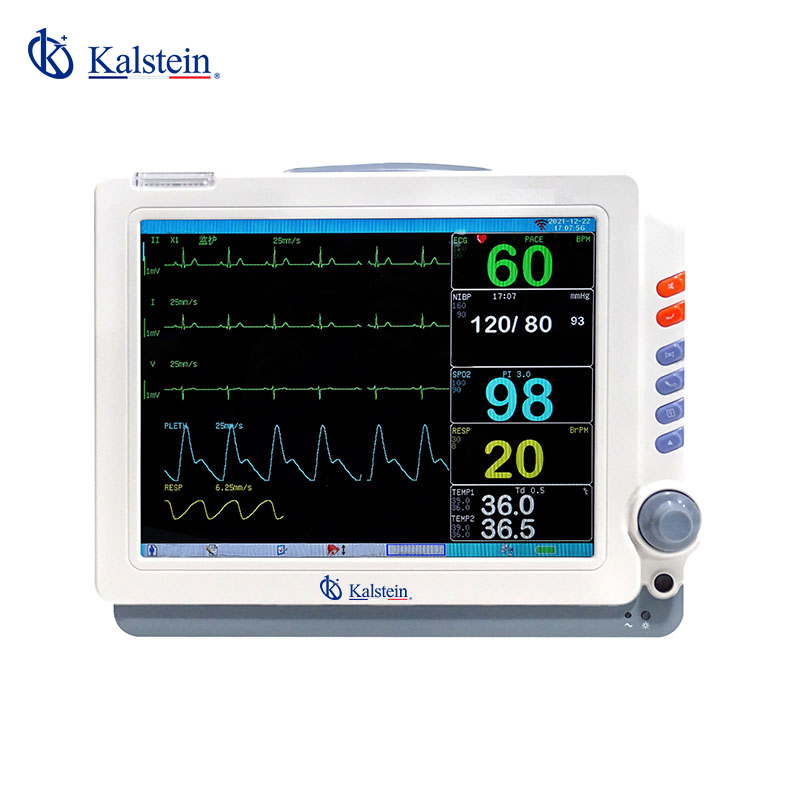

Patient Monitors YR02170 // YR02171 // YR02172

Description

The Patient Monitors YR02170 // YR02171 // YR02172 offer comprehensive multi-channel displays and big font interfaces that enhance readability in various clinical settings. Equipped with ST and arrhythmia analysis, these monitors ensure precise cardiac monitoring. The systems feature drug dose calculation and a titration table, enabling accurate medication management. The OxyCRG dynamic view, alongside respiration monitoring with apnea alarms, provides critical insights into patient respiratory status. These devices support both wired and wireless networks, ensuring seamless data integration and accessibility.

Market Price

In the market, patient monitors similar to models YR02170, YR02171, and YR02172 generally range from approximately 900 USD to 1700 USD, varying based on specific features and supplier pricing. These devices are competitively priced, offering state-of-the-art monitoring capabilities typically expected in higher-priced units.

Frequently Asked Questions

What kind of networks do these models support? Both wired and wireless networks are supported for efficient data transfer.

Is the battery rechargeable? Yes, it includes a plug-in rechargeable battery that can operate with AC/DC power.

Advantages and Disadvantages

The versatility of these monitors is a significant advantage, with features such as OxyCRG dynamic view and multi-channel display. The built-in arrhythmia and ST segment analysis ensure robust cardiac monitoring. However, the complexity of these advanced features might require initial training for optimal use.

Field Use

These monitors are ideal in hospital settings, emergency rooms, and critical care units. Their ability to connect to various networks makes them suitable for telemedicine solutions, providing real-time data to remote health professionals.

Recommendations

For optimal use, regularly calibrate the monitors and keep the software updated. Training staff thoroughly will maximize the sophisticated features effectively. Consider integrating these monitors into a centralized monitoring system for comprehensive patient care.

Features

Multi-channel display
Big font interface
ST and arrhythmia analysis
Drug dose calculation and titration table
OxyCRG dynamic view display
Respiration monitoring with apnea alarms
Alarm review, arrhythmia review
NIBP over-pressure protection
Plug-in rechargeable battery, AC/DC available
Supporting wired or wireless network

Technical Specifications

Model		YR02170	YR02171	YR02172
ECG	Lead mode	5 Leads(RA,LA,LL,RL,V)
	Connection method	I, II, III,AVR,AVL,AVF,V
	Lead Mode	3 Leads (RA,LA,LL)
	Connection method	I, II,III
	Waveform	1ch
	Gain	x250, x500, x1000, x2000
	HR Range	Adult: 15~300bpm
	Neo/Ped	15~350bpm
	Accuracy	±1% or ±1bpm
	Resolution	1bpm
	Sensitivity	>200(uVp-p)
	Differential input impedance	≥5MΩ
	ST segment Monitoring Range
	Measure Range	-2.0~+2.0mV
	Measure Accuracy	-0.8mV~+0.8mV
Heart Rate	Measuring range	0~350bpm	20~300bpm
	Accuracy	±1bpm
	Resolution	1bpm
	Sensitivity	>200UVp-p
Respiration	Method	Impedance between R-F(RA-LL)
	Differential Input Impedance	>2.5MΩ
	Measuring Impedance Range	0.3~3.0 MΩ
	Base line Impedance Range	200~4000Ω
	Bandwidth	0.1~2.5Hz
	Resp. Rate	Adult: 2~120BrPM
	Neo/Ped	2~150BrPM	0~150BrPM
	Resolution	1 BrPM
	Accuracy	±2 BrPM
	Alarm	10~40S
NIBP	Method	Oscillometric
	Mode	Manual/Auto/STAT
	Measuring Interval in AUTO Mode	1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
	Measuring Period in STAT Mode	5 Min
	Pulse Rate Range	40~240bpm
	Alarm Type	SYS, DIA, MEAN
	Resolution
	Pressure	1mmHg
	Accuracy	Maximum Mean error: 5mmHg
	Maximum Standard deviation	8mmHg
SPO2	Display	Number of SPO2,waveform of capacity,Pulse
	Measuring range	0~100%
	Resolution	1%
	Accuracy	70~100% (±2%)
	Alarm system	Audio-video alarm
	Pulse rate range	0~300bpm
TEMP	Channel	2
	Measuring and Alarm Range	0~50ºC
	Resolution	0.1ºC
	Accuracy	0.1ºC
	Actualization interval	about 1 Second.
	Average Time Constant	<10 Second.

Additional information

Weight	N/A
Model	YR02170, YR02171, YR02172
