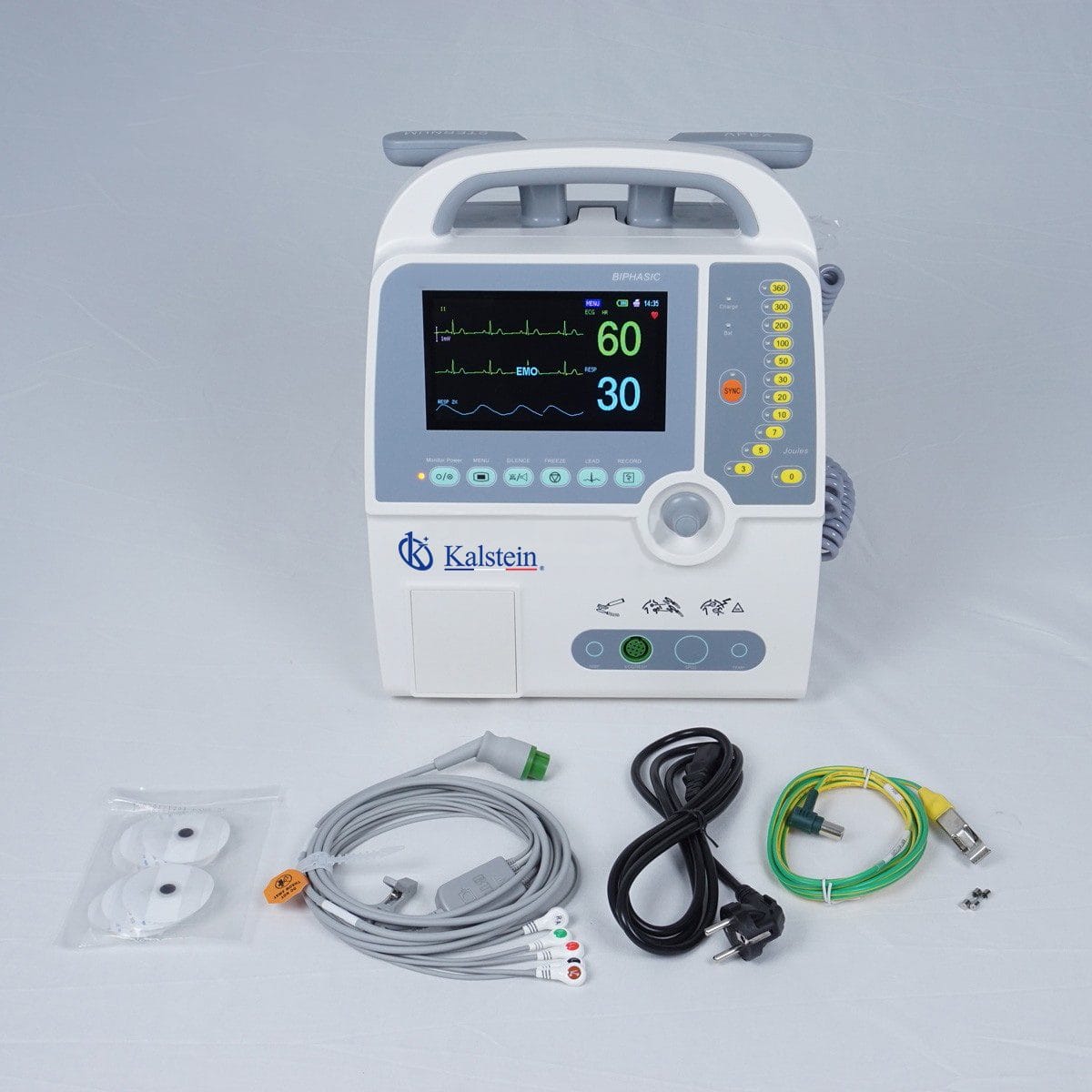

Veterinary Defibrillator Monitor (Biphasic) YR06111

The Veterinary Defibrillator Monitor (Biphasic) YR06111 is a state-of-the-art device designed to provide precise and reliable cardiac monitoring and defibrillation in veterinary settings. With a high-resolution 7-inch TFT color display, it provides real-time data on heart rate, lead status, alarms, and delivered energy. The device comes equipped with a built-in thermal recorder for documenting vital information and features a Li-ion battery for extended use, ensuring uninterrupted performance. Optional configurations, such as the SpO2 module, cater to diverse veterinary needs, making it a versatile addition to any veterinary practice.

Market Pricing

The average market price for veterinary defibrillator monitors like the YR06111 ranges from $4800 to $5700, though prices may vary depending on additional features and configurations. This range makes it a competitive choice for veterinary professionals seeking a high-quality, reliable defibrillator monitor.

Frequently Asked Questions

What animals is this defibrillator suitable for? This device is suitable for a wide range of veterinary applications, including small and large animals. Is the device portable? Yes, the YR06111 is designed for portability, featuring a lightweight design and a rechargeable Li-ion battery for use in various settings.

Advantages and Disadvantages

The main advantages of the Veterinary Defibrillator Monitor YR06111 include its user-friendly interface, high-quality display, and comprehensive ECG capabilities. However, it may require specific training for optimal use and maintenance.

Field Usage

In practical veterinary scenarios, the YR06111 is used for monitoring and managing cardiac emergencies in animals. Its fast charge time and accurate biphasic waveform make it a reliable choice for both clinic and field settings.

Recommendations

Regular maintenance, including battery checks and software updates, can ensure the YR06111 performs at its best. Veterinary professionals should also undergo training sessions to maximize the device’s features.

Features

• Built-in recorder for defibrillation discharge trigger recording
• Li-ion battery for extended monitoring
• Optional SpO2 module
• Voice prompts for guidance during procedures
• ECG waveform display via paddle electrode

Technical Specifications

Model		YR06111
Display	Screen Type	High-resolution display, TFT color display
	Screen Size	7 inches (17.7cm) diagonally
	Sweep Speed	12.5/25/50mm/sec
	Information	Heart Rate, Lead, Alarm On/Off, Delivered Energy
	Resolution	800x480
ECG	Patient Connection	3-lead ECG cable, or 5-lead ECG cable, paddles
	Lead Selection	Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V
	ECG Size	2.5,5, 10, 20, 30 mm/mV display on monitor
	Heart Rate	20-350BPM
	Protection	With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Defibrillator	Waveform	Biphasic
	Defibrillator type	Manual External Synchronous/Asynchronous Defibrillation
	Charge Time	Less than 10 seconds to 360 Joules
	Energy Display	Monitor display indicates both selected and delivered energy
	Charge Prompt Type	Voice and visual prompts
	Energy Selection	Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
	Standard Adult/Pediatric Paddles	Reusable external adult paddles (pediatric paddles integrated)
Battery Description	Standard Type	Li-ion battery Li1104c 11.1Vdc 4000mAh X2
	Standard Capacity	Up to 10 hours ECG monitoring or 60 full-energy discharges
	Low Battery Indicator	Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on
	Recharge Rate	80% in 3 hours. 100% in 5 hours
Built-in Recorder	Paper	50mm thermal
	Printing Method	High-resolution, thermal print head
		Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform
	Print mode	HR exceed limits alarm recording
		Auto timed recording
		Real-Time Recording
		Defibrillation discharge trigger recording
Power	AC-DC dual-use	Use the batteries, AC 100V~240V, 50/60Hz
	Vehicle Voltage (Option)	DC 12V
