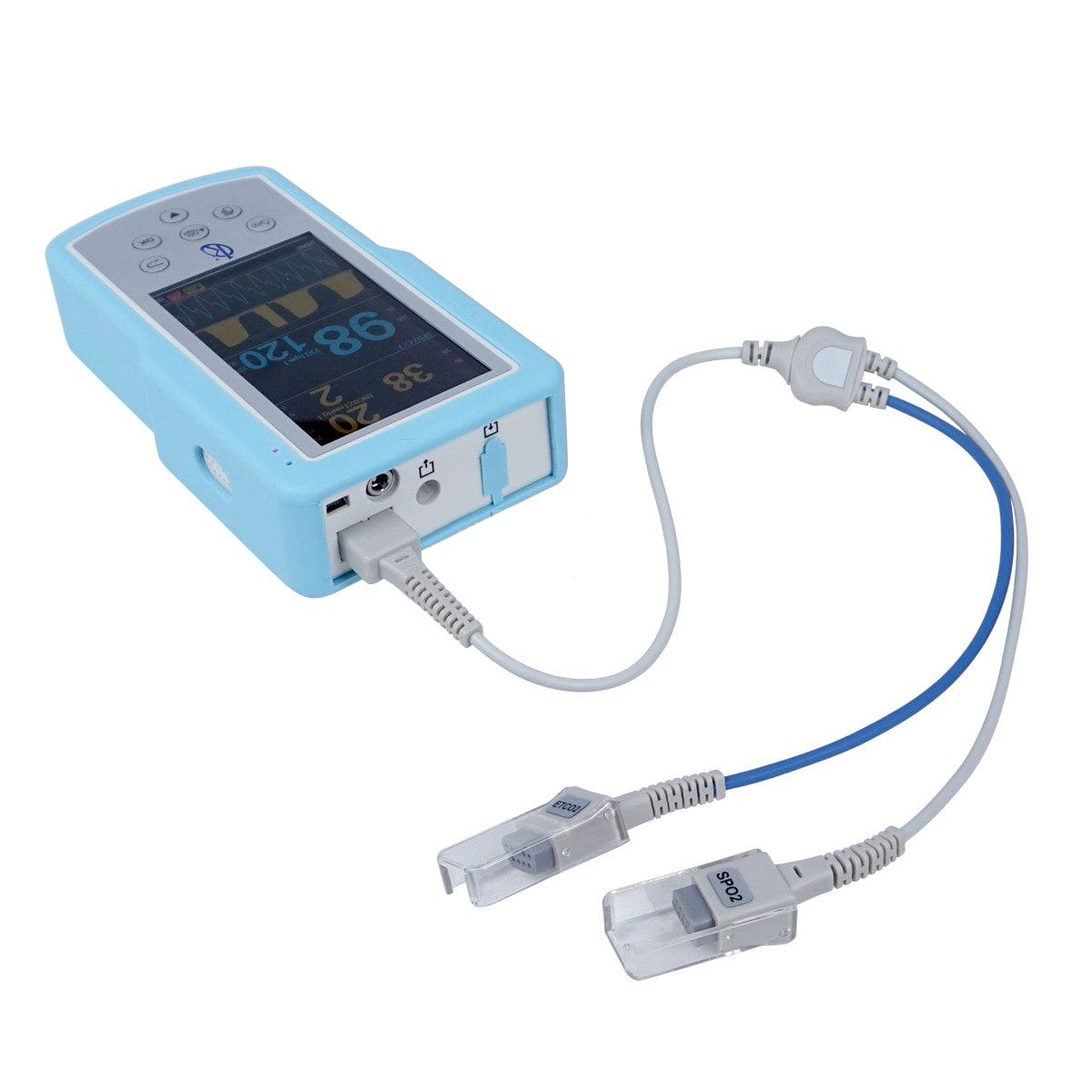

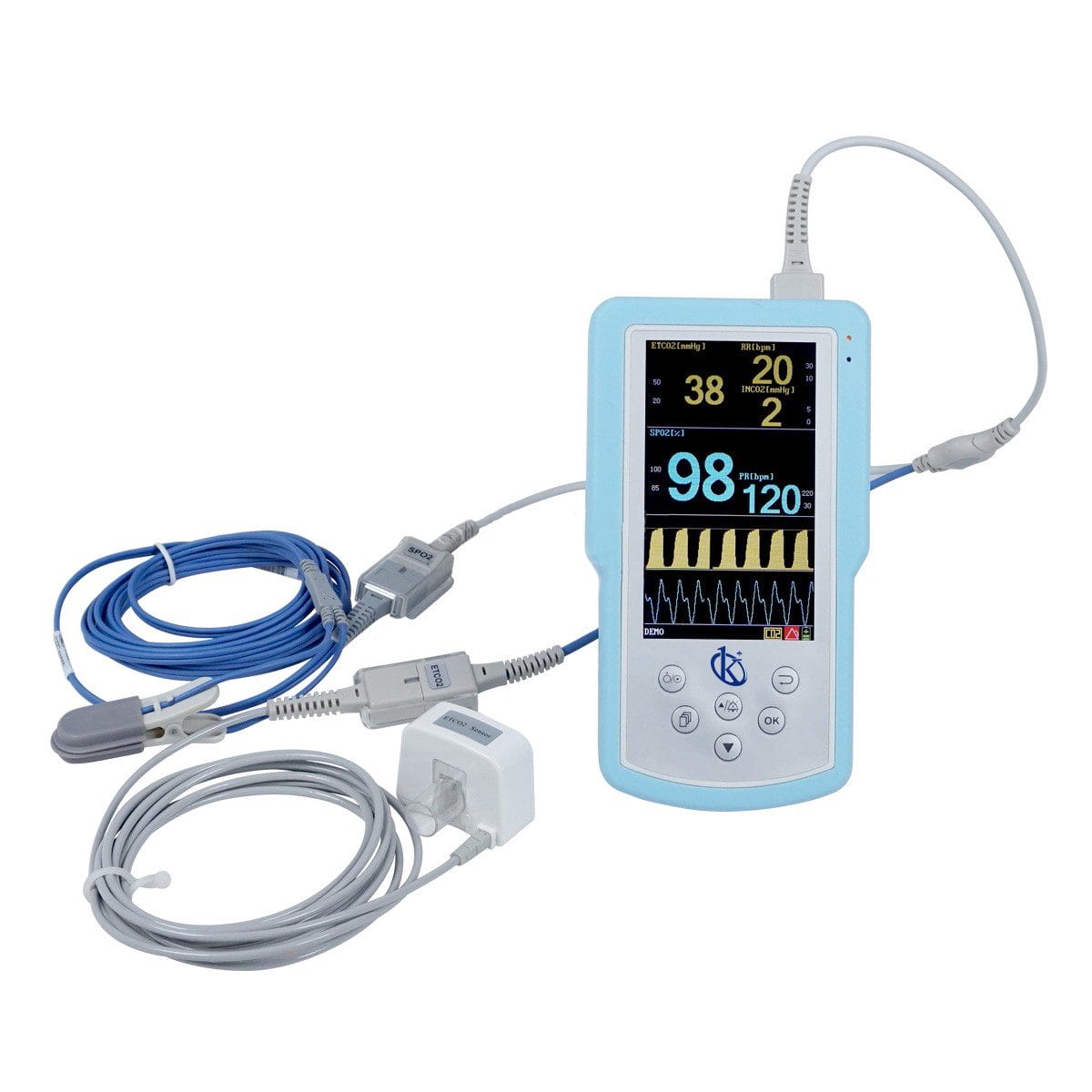

Handheld Veterinary Capnograph & SpO2 Monitor YR06108 - YR06109

The Handheld Veterinary Capnograph & SpO2 Monitor YR06108 - YR06109 is a state-of-the-art device designed to provide precise monitoring of SpO2, pulse rate, EtCO2, and respiratory rate in veterinary settings. It features a robust data management system capable of updating and replaying up to 255 hours of historical data on a PC via USB. With sophisticated SpO2 and Respiratory Status Analysis Software, it enables comprehensive data analysis and report generation, making it an invaluable tool in both clinical and emergency veterinary scenarios.

Market Price

The market price for handheld veterinary capnographs and SpO2 monitors typically ranges from $1700 to $2400, depending on the features and capabilities offered. The YR06108 - YR06109 model falls within this range, offering high value for its advanced functionalities.

Frequently Asked Questions

• What animals can be monitored with this device? This device is suitable for a wide range of animals commonly encountered in veterinary practice.
• How is the data stored and analyzed? The monitor connects to a PC via USB for data replay and analysis, and it includes software for detailed data management.
• Is it portable for field use? Yes, the handheld design and rechargeable lithium battery make it ideal for both clinic use and fieldwork.

Advantages and Disadvantages

Advantages: High precision in monitoring vital signs, extensive data storage capabilities, and portable design. Disadvantages: Initial cost may be higher compared to simpler models, and requires some time to familiarize with software features.

Field Use

In real-world applications, the YR06108 - YR06109 is particularly useful during operations requiring close monitoring of respiratory status, such as during CPR, intubation, and extubation procedures. Its ability to alert to accidental extubations ensures patient safety during transport and other critical phases.

Recommendations

For optimal use, it is recommended to keep the device software updated and perform regular checks on the sensors and battery. This will ensure accurate readings and extend the device's longevity. To learn more about acquiring this unit, consider requesting a quote or generating one automatically through the Kalstein Plus platform.

Features

• SpO2, pulse rate, EtCO2, and respiratory rate monitoring
• 255-hour historical data replay via USB
• Professional Data Analysis Software
• Reports printing capabilities
• Portable with a 10-hour working lithium battery

Technical Specifications

Model		YR06108	YR06109
Measure Range	SpO2	0~100%
	Pulse rate	35~254bpm
	EtCO2	0~150mmHg
	Respiratory rate	3~120bpm
Measure Accuracy	SpO2	±2% (70~100%)
	Pulse Rate	±2 or ±2bpm
	EtCO2	±5% of reading
	Respiratory Rate	±1 breath
Electrical Safety	Adapter Input	AC 110V/220V, 50/60Hz
	Adapter Output	DC 12V, 2A
	Inner Battery	Rechargeable Lithium Battery, working for 10 hours
	Charge time	4 hours
Standard Parameters		EtCO2 + SpO2
Standard Configuration		Main unit, Sample line, Nasal sample line, CO2 adapter, SpO2 sensor, L-connector, Power adapter	Sidestream EtCO2 Sensor Airway Adapter Kit (including 1pc Nafion Dehumidification Tube, 1pc L-Connector, 1 pc Sample Line, 1pc sidestream adapter)
Optional Configuration		Mainstream CO2 Sensor	Sidestream CO2 Sensor
