Polarizing Microscope YR0261
Polarizing Microscope YR0261 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

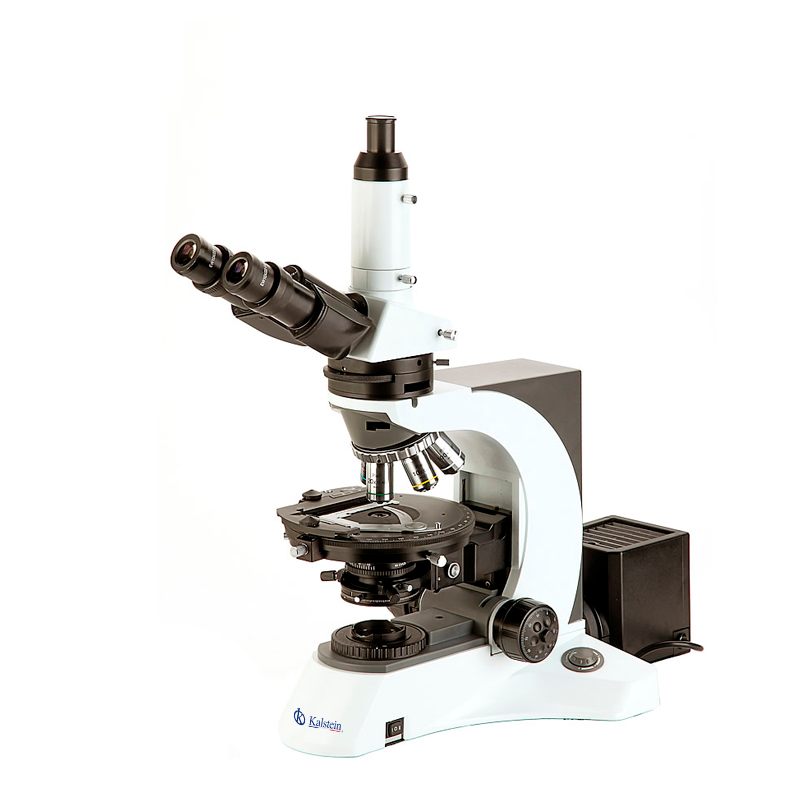

The Polarizing Microscope YR0261 is an advanced optical instrument designed to enhance your research and laboratory experience. Featuring a quintuple nosepiece that is center adjustable and strain-free infinity plan objectives ranging from 4x to 100x, this microscope is perfect for detailed and precise visual analyses. The unit includes an analyzer with Bertrand lens, λ slip, 1/4λ slip, and quartz wedge, ensuring a comprehensive set of optical tools for any specialized observation. Additionally, its 24V100W halogen illumination system allows for adjustable brightness, offering versatility and clarity in varying environments.
Market Price
The Polarizing Microscope YR0261 is a premium product within the optical equipment category, with a typical market price range of approximately $4,000 to $4,800 USD. This range reflects the high-quality construction and advanced features it offers, making it a valuable addition to any laboratory.
Frequently Asked Questions
- Is the microscope suitable for educational purposes? Yes, the Polarizing Microscope YR0261 is suitable for both educational and professional research settings.
- What accessories come with the microscope? The microscope includes various eyepieces, filters, and an adapter for photo documentation.
- Is there a warranty available? Yes, a standard warranty is available for the product. Please check with your retailer for specific terms.
Advantages and Disadvantages
Advantages: The YR0261 offers high precision and ease of use, with an adjustable quintuple nosepiece and a range of strain-free objectives. Its illumination system provides clear visibility, and the range of optical compensators increases its versatility.
Disadvantages: The initial investment cost may be higher compared to entry-level microscopes, which could be a consideration for new laboratories or educational institutions with budget constraints.
Field Use
The Polarizing Microscope YR0261 is utilized in various scientific fields, including geology, mineralogy, and biology, for the analysis of birefringent materials. Its capability to switch between orthoscopic and conoscopic observation makes it particularly useful for studying the internal structure and composition of materials at a microscopic level.
Recommendations
To maximize the functionalities of the YR0261, it is advised to regularly clean the optical components and adjust the illumination to suit specific observational needs. For those seeking further customization or expansion of capabilities, consider exploring additional compatible accessories available through our platform.
Features
- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives 4x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
| Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
| Filter | Netural Filter ND25 | YR0261-op1 |
| Netural Filter ND26 | YR0261-op1 | |
| Adapter | Photo Adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

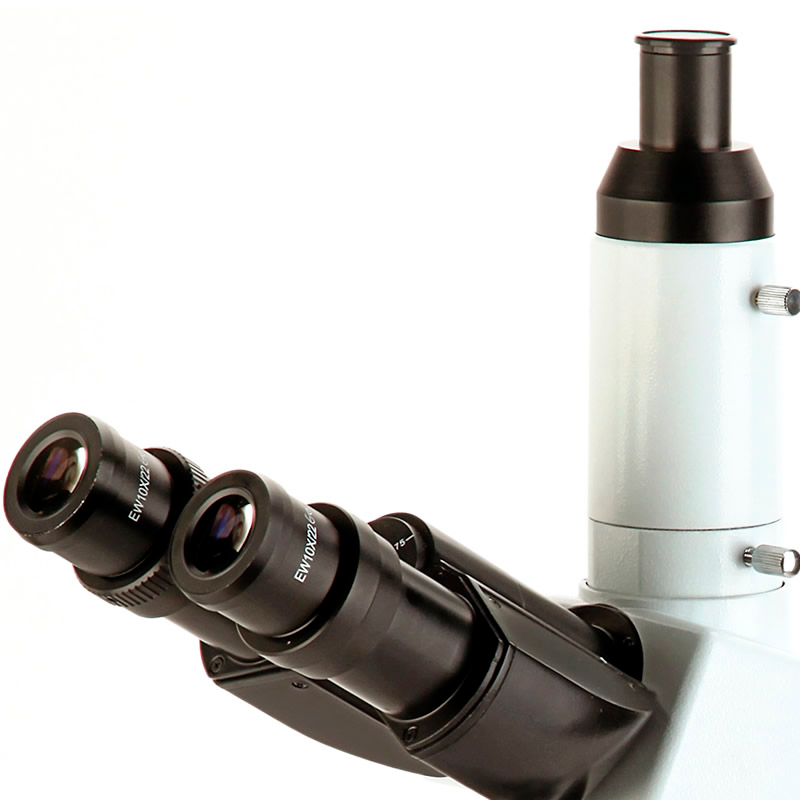

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Plan Eyepiece With Scale of Crosshair | ||
| Plan Eyepiece With Cross | ||
| Plan Eyepiece With Gridding | ||

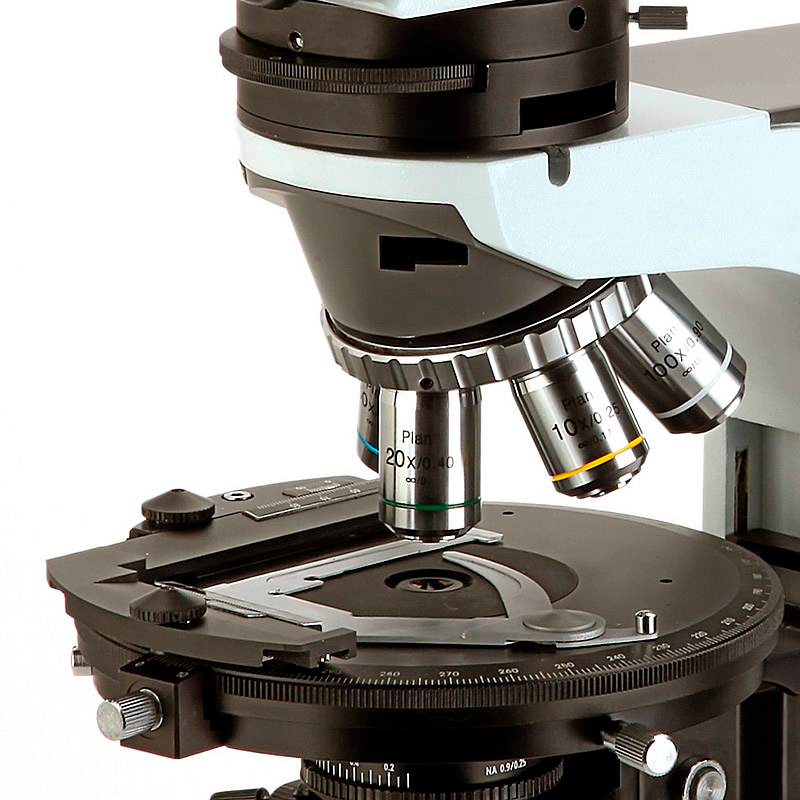

| Objective | Strainfree Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W.D.17.3mm | ||
| 10x/0.25/∞/0.17 W.D.10mm | ||
| 40x/0.65/∞/0.17 W.D.0.54mm | ||
| 100x/1.25/∞/0.17 W.D.0.13mm | ||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |
| Switch Between Orthoscopic And Conoscopic Observation | ||
| Bertrand Lens Postion Adjustable | ||
| Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
| 360° Scale, Minimum Division 1° | ||
| Minimum Reading 6′ By Means of Vernial Scale | ||
| 45° Click Stop Knob | ||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

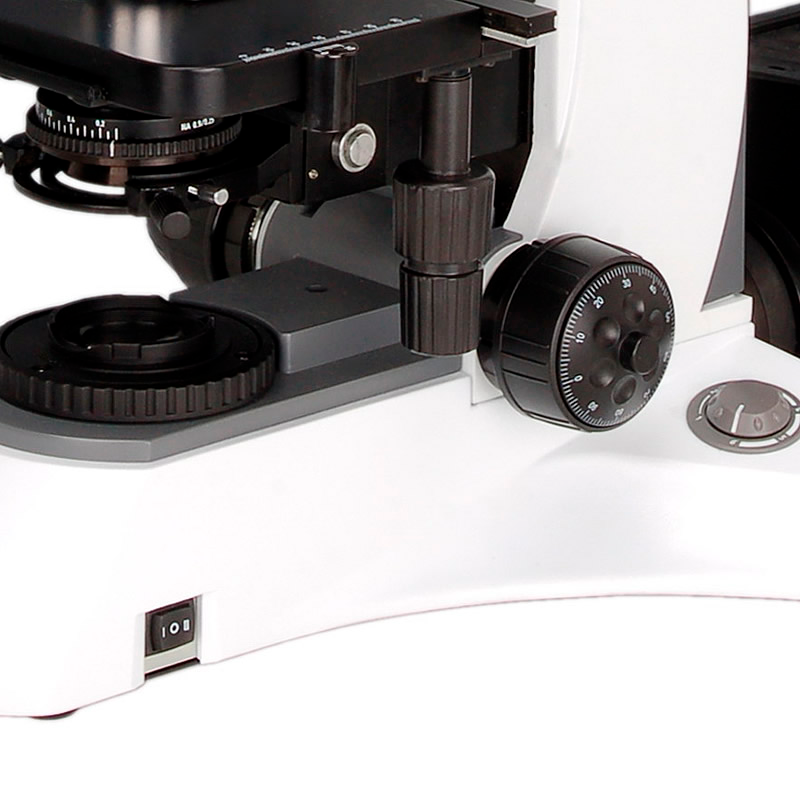

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
| Polarizer | 360° Rotatable, 0° Position Adjustable | |
| Filter | Blue Filter, Dia.45mm | |
| Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable | |
Technical specifications
| Weight | 16.5 kg |
|---|---|
| Manufacturer | Kalstein |
