Non-contact spectrophotometer YR05481

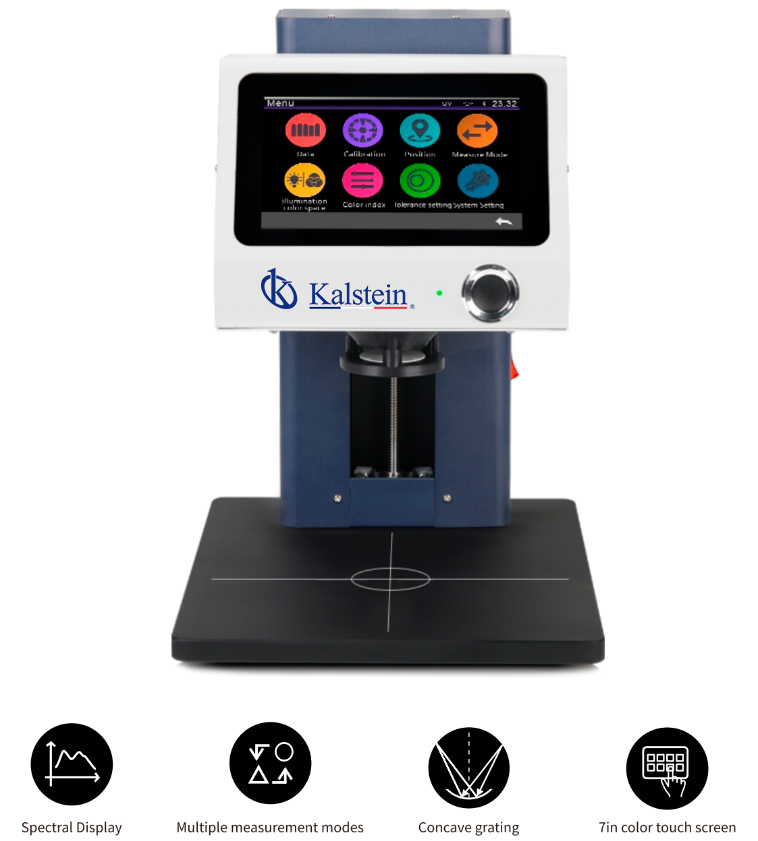

The Non-contact Spectrophotometer YR05481 is an advanced color measuring device engineered for high precision and efficiency in various industrial applications. Utilizing a D/8 optical geometry, this instrument supports diffuse illumination and 8° direction light reception, ensuring superior color measurement accuracy. Ideal for laboratories, research and development sectors, and automated production lines, the YR05481 excels in delivering non-contact solutions for consistent color quality control. Equipped with a movable measuring head, users can adjust the measurement height to accommodate objects up to 160mm, making it versatile across different use cases. Additionally, the user-friendly interface allows for seamless operation, even for non-professionals, effectively broadening its accessibility.

Market Price

When considering the acquisition of a non-contact spectrophotometer like the YR05481, it is essential to understand the market price landscape. Typically, such advanced devices range from approximately $10,000 to $12,000, depending on specific features and vendor offerings. This pricing reflects the advanced technology and precision engineering that underpin these high-performance instruments.

Frequently Asked Questions

Can the YR05481 measure different materials without contact? Yes, it is specifically designed for non-contact measurement across various industries including plastics, ceramics, and cosmetics. What is the warranty period for the YR05481? The spectrophotometer typically comes with a standard warranty of one year, covering manufacturing defects and certain hardware issues.

Advantages and Disadvantages

The YR05481 offers numerous advantages such as high precision, non-contact measurement capability, and ease of use thanks to its intuitive interface. However, some potential drawbacks might include its relatively high price point compared to contact-based alternatives and the necessity for periodic calibration to maintain accuracy.

Use in the Field

In practical scenarios, the YR05481 spectrophotometer is employed for quality control and color matching in industries like printing and ceramics. Its ability to deliver consistent measurements ensures that production processes meet rigorous color standards, thereby reducing waste and enhancing product quality.

Recommendations

To maximize the lifespan and efficiency of the YR05481, it is recommended to regularly calibrate the device and store it in conditions outlined within its operational range. Utilizing the spectrophotometer’s diverse measurement modes can further enhance its application across different industrial requirements.

Key Features

• D/8 optical geometry for precise color measurement.
• Full spectrum LED light source for consistent illumination.

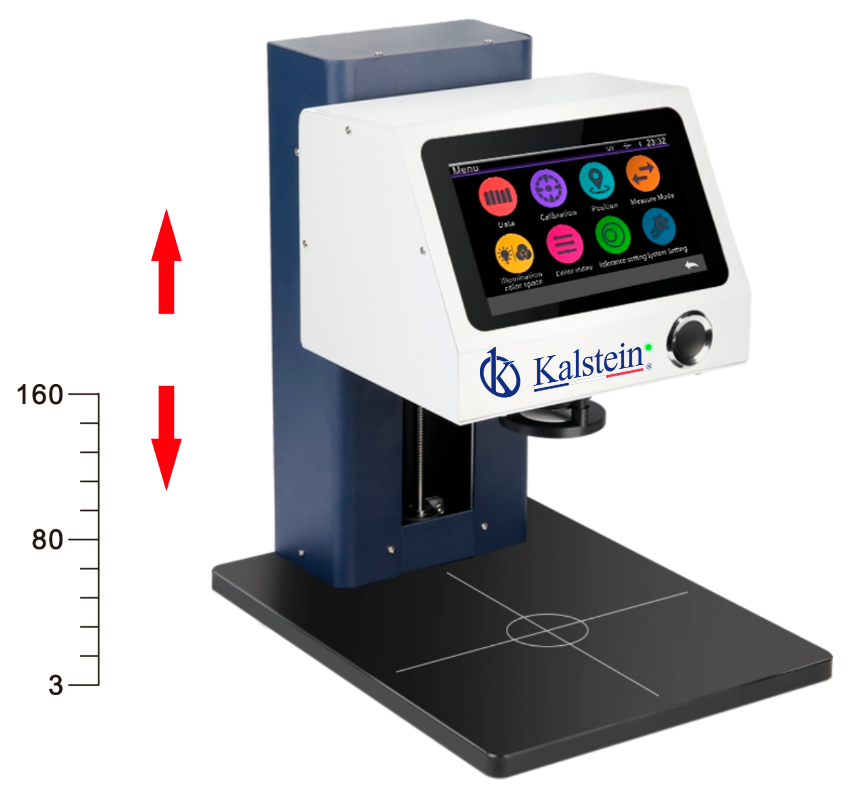

• Adjustable measuring head for sample heights up to 160mm.

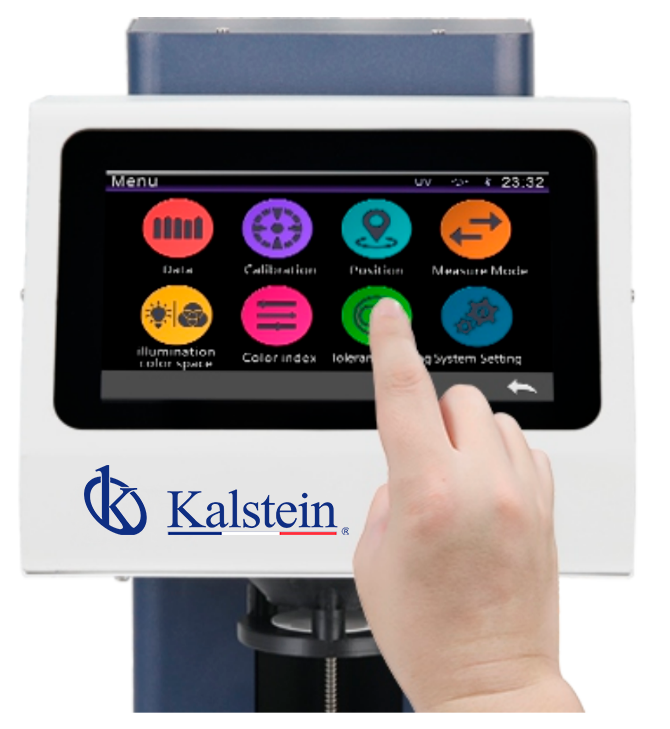

• Simple, intuitive interface suitable for all user skill levels.
• Multiple measurement modes to suit varied industrial needs.

Technical Specifications

Model	YR05481
Optical Geometry	D/8 (diffuse illumination, receiving in 8° direction, SCL includes specular reflection light); CIE No.15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7
Light Source	Full spectrum LED light source
Spectrophotometric Mode	Concave Grating
Sensor	256-pixel dual-array CMOS image sensor
Wavelength Range	400-700nm, 10nm output
Measured Reflectance Range	0-200%
Measuring Aperture	020mm (010mm can be customized)
Non-contact distance	3.0mm(+0.2mm)
Sample height	0-160mm (Using the original support base plate)
Distance adjustment method	Manual adjustment (storable test height)

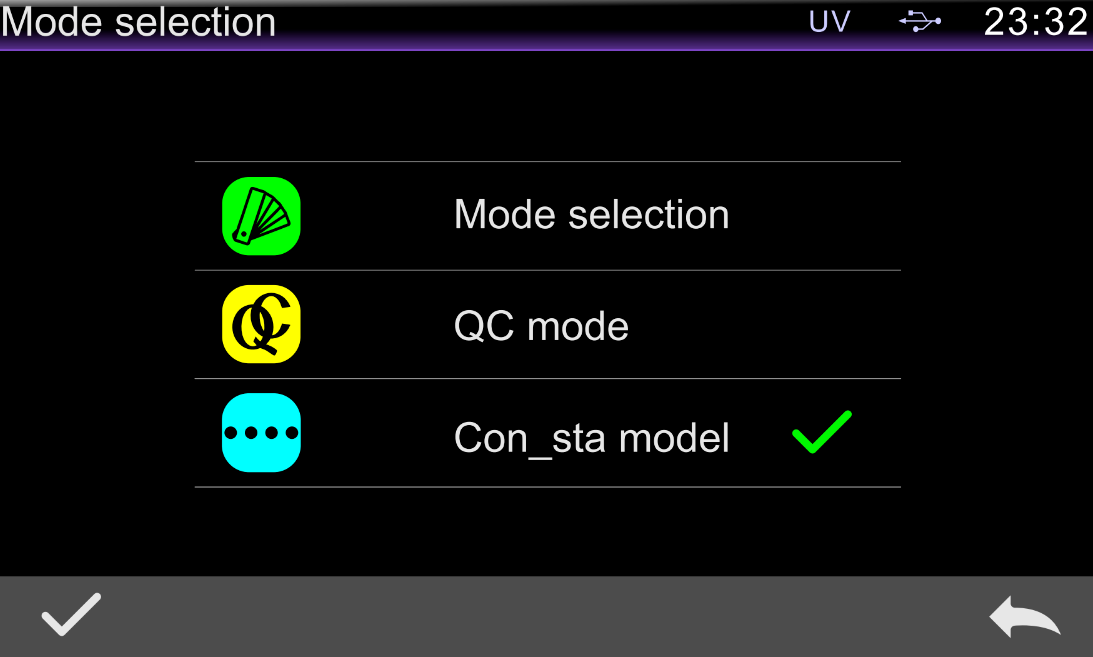

Measurement mode	Sample mode, quality control mode, continuous statistics mode
Locating	Camera locating
Color Space	CIE LAB,XYZ,Yxy, LCh,CIE LUV, Musell,s-RGB, HunterLab,Bxy,DIN Lab99
Color Difference Formula	AE*ab,AE*94,AE*cmc(2:1),4E*cmc(1:1),4E*00,4E (Hunter), DINAE99
Other Colorimetric Index	WI(ASTM E313, CIE/ISO,AATCC,Hunter), YI(ASTM D1925, ASTM 313),, Metamerism index MI,Staining Fastness, Color Fastness, Strength, Opacity
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,075,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9, F10 (TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Color simulation, pass/fail result, display tolerance can be set
Measuring Time	Fast mode about 1.0s (0.2-1.5s adjustable)
Data Storage	Sample mode + quality control mode 18,000;Continuous statistical mode 30,000, totaling no more than 48,000
Repeatability	In the optimal measurement mode (when a single measurement time is 1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity value: AE*ab within 0.04(After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s)
Inter-instrument Error	Within AE*ab 0.25(Measured average value of 12 tiles of BCRA series II)
Measurement method	Single measurement, average measurement (2-99 times)

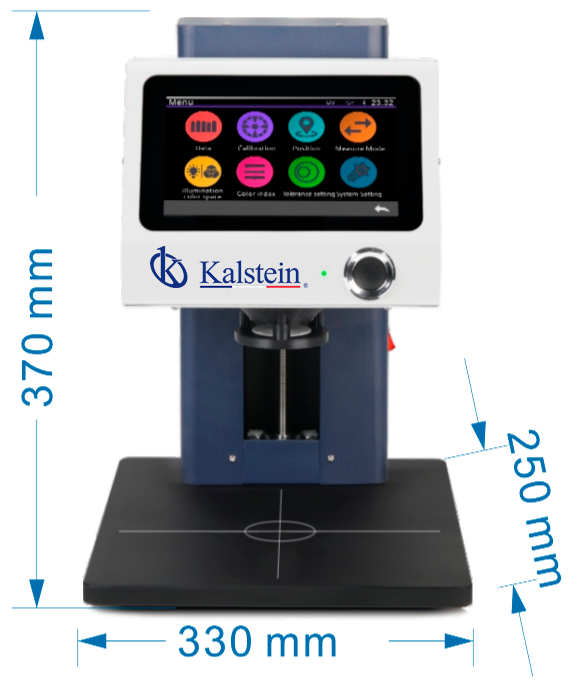

Dimension	330*250*370mm
Weight	About 10Kg
Power	AC 24V, 3A Power adapter power supply
illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	0~40°C, 0-85%RH (no condensation), altitude: less than 2000m
Storage Environment	-20~50°C, 0-85%RH (no condensation)
Standard Accessory	Power adapter, manual, data cable, standard calibration board, black calibration box
Notes	This model is specially suitable for streamlined production lines, in-depth function customization will incur additional customization costs
