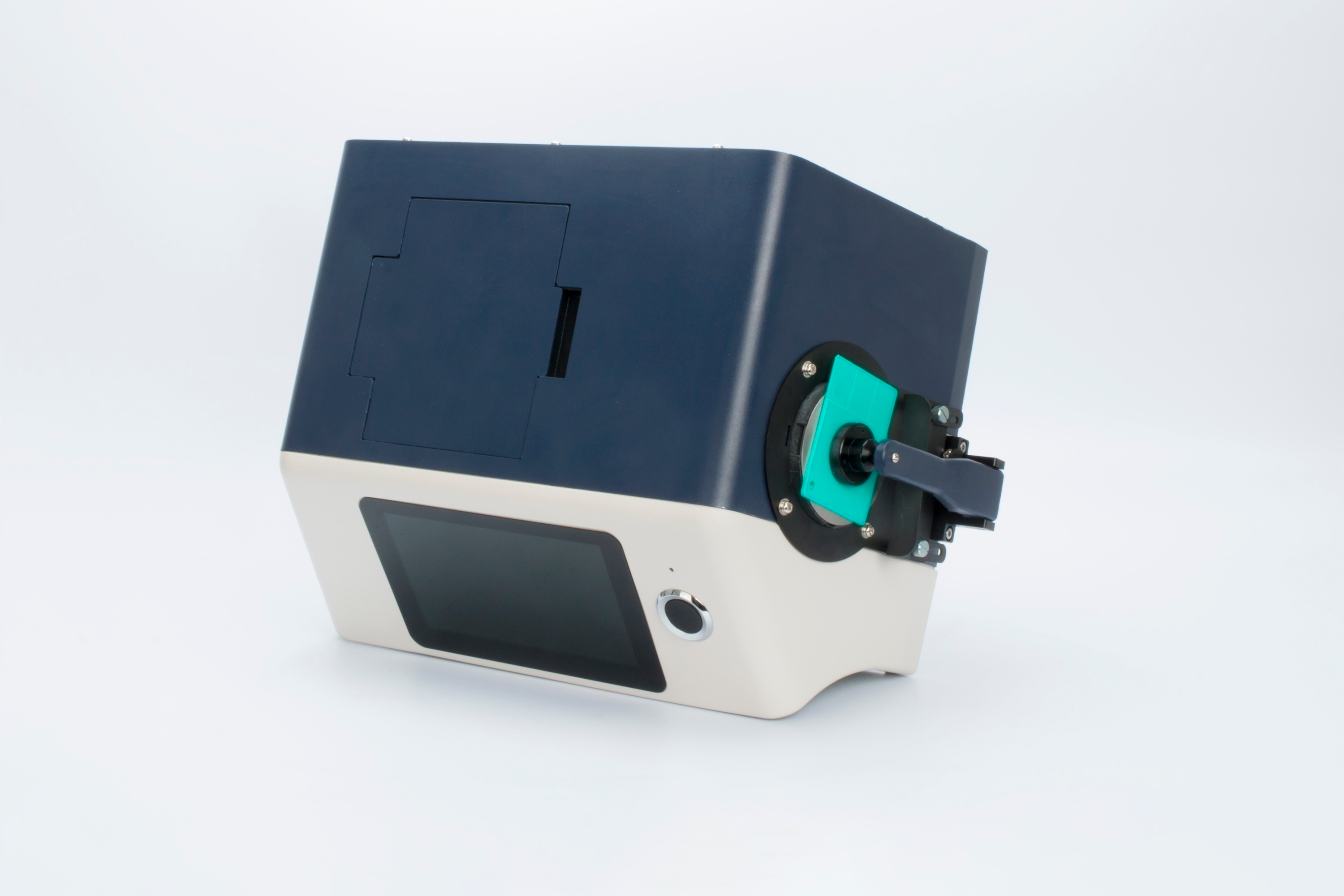

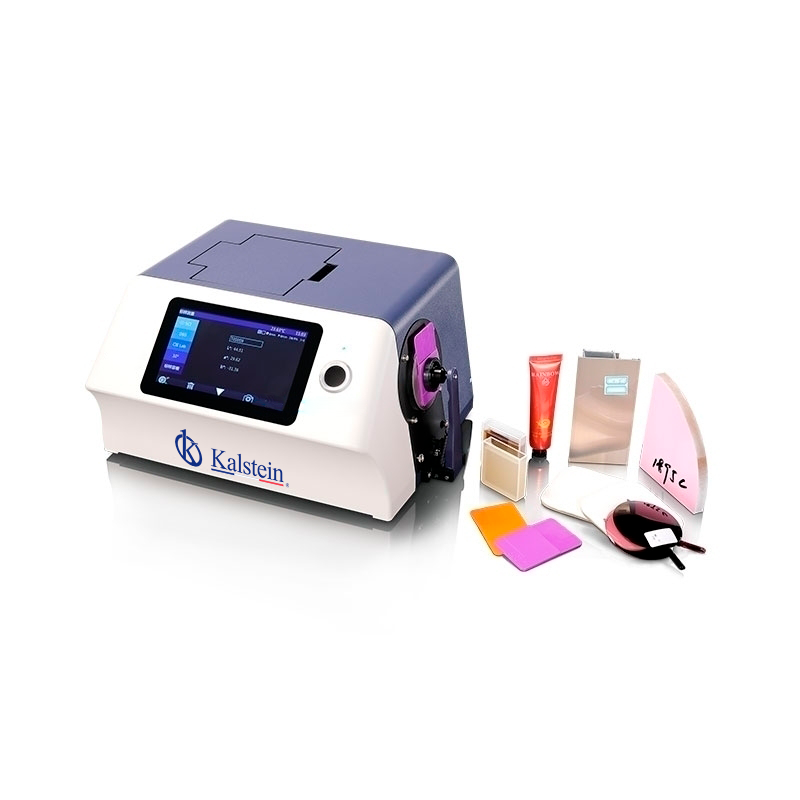

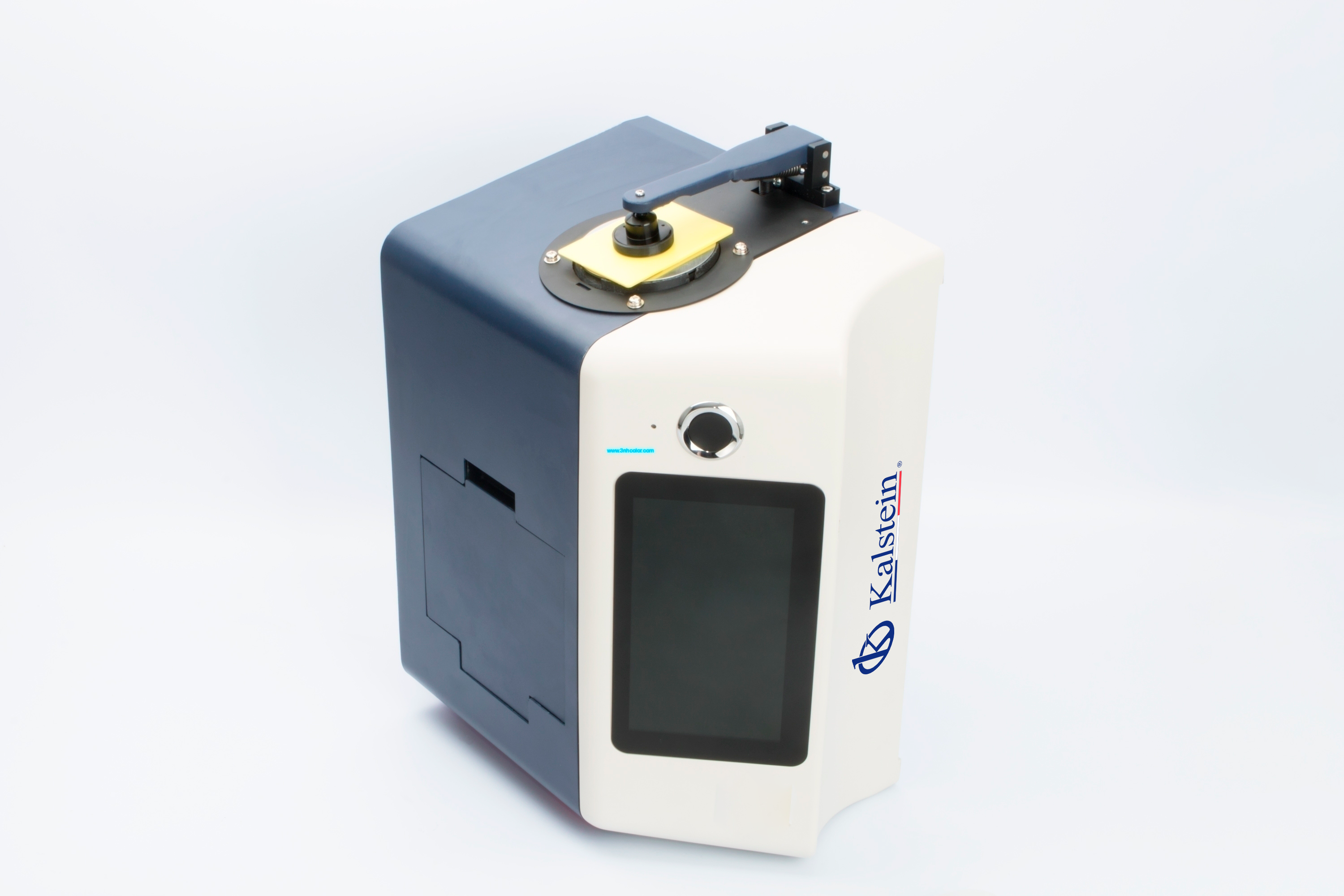

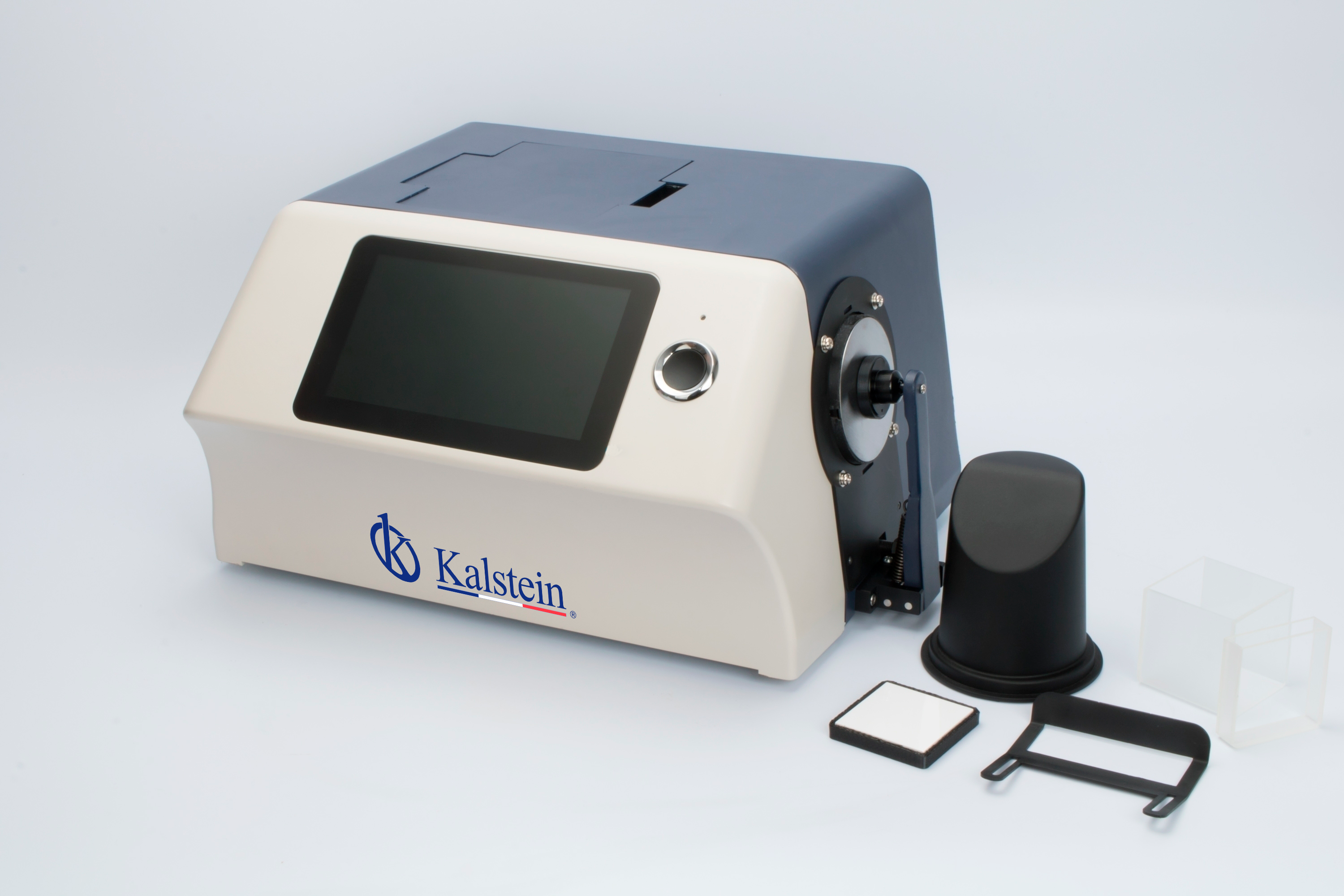

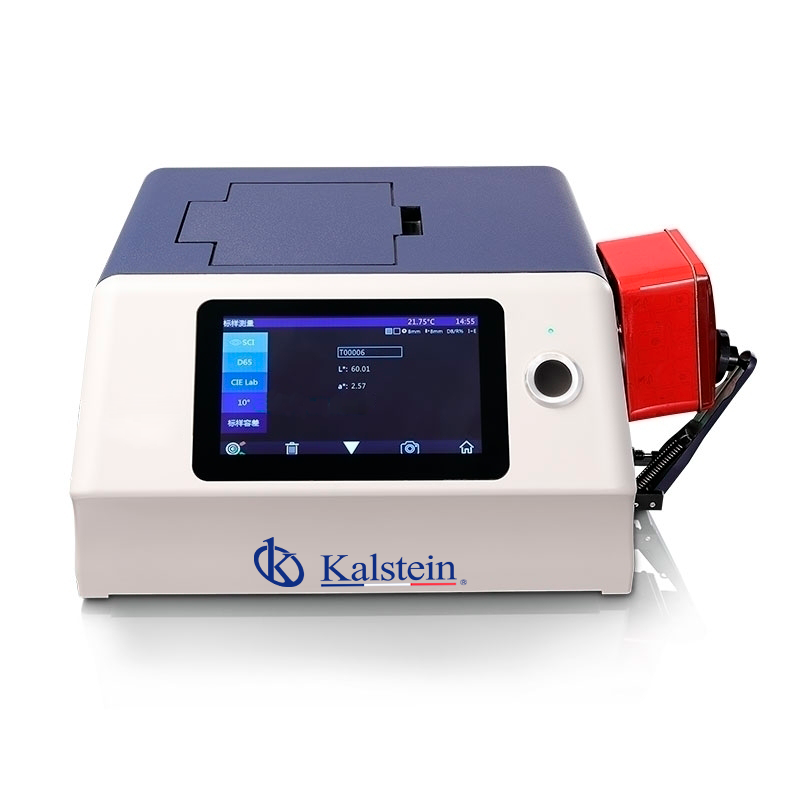

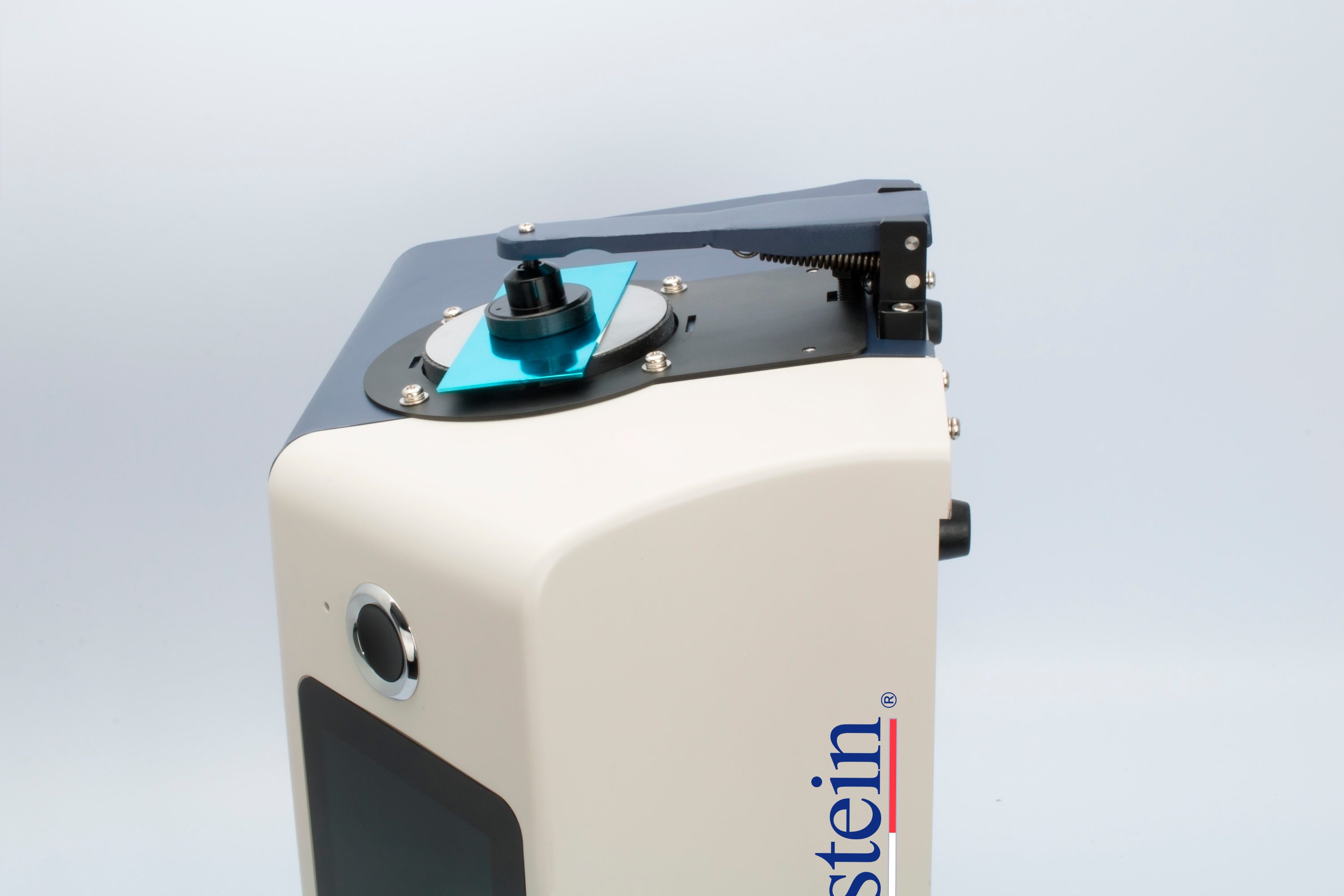

Benchtop Spectrophotometer YR05477

Benchtop Spectrophotometer YR05477 offers a state-of-the-art solution for color and appearance analysis in both research and development and laboratory settings. This advanced benchtop instrument is designed to evaluate color reflectance and transmittance of various materials including solids, liquids, pastes, and powders. Featuring a 7-inch TFT capacitive touch-screen display, intuitive operation, and high precision measurement capabilities, the YR05477 ensures reliable color analysis for industries such as paint, ink, textiles, and more.

Market Price

The market price for benchtop spectrophotometers can vary significantly based on features and capabilities. The YR05477 Benchtop Spectrophotometer is competitively priced in the range of approximately $10,000 to $10,800. This pricing reflects the high-quality construction and advanced features that make it ideal for professional laboratory and R&D environments. For a precise quote tailored to your needs, consider generating a quotation via Kalstein Plus.

Frequently Asked Questions

What types of materials can the YR05477 analyze? The spectrophotometer handles solids, liquids, pastes, powders, pills, and granules efficiently. Is the YR05477 suitable for quality control purposes? Yes, it is widely used in industries like printing, dyes, ink, garments, and more for quality control and color transfer.

Advantages and Disadvantages

Key advantages of the YR05477 include its high precision in color measurements, versatile application across different industries, and user-friendly operation. Additionally, it supports multiple languages and offers extensive data storage capabilities. A potential disadvantage may include its reliance on regular calibration to maintain accuracy, though this is a standard requirement for spectrophotometers.

Product Use in the Field

In practical applications, the YR05477 Benchtop Spectrophotometer is utilized for ensuring consistent color quality in manufacturing processes. For instance, dye manufacturers use it to standardize dye batches while automakers employ it to match paint hues on vehicular components, confirming color fidelity and quality assurance.

Recommendations

For optimal performance, it is recommended to perform regular calibrations using the provided standard calibration board. Users should familiarize themselves with the PC software to take full advantage of extended functions, and employ protective measures to maintain the instrument within the specified environmental conditions.

Features

• 7-inch TFT Color Capacitive Touch-screen Display with high-resolution.
• Double Array 256 Image Element CMOS Sensor for accurate color measurements.
• Auto aperture recognition, customizable measuring apertures.
• Temperature sensor for improved measurement precision.
• Extensive wavelength range from 360nm to 780nm including UV measurement capabilities.
• Large capacity data storage, capable of storing 20,000 test results.
• Multiple measurement modes tailored for quality management and sample analysis.
• PC software offering powerful extended functionalities.

Technical Specifications

Model	YR05477
Optical Geometry	Reflect: di:8°, de:8°; SCI/SCE; Include/Exclude UV; Transmittance: di:0°, de:0°; SCI/SCE; Include/Exclude UV; Haze(ASTM D1003)
Application	Accurate analysis and transmission of laboratory color, suitable for industries such as paints, inks, textiles, garments, etc.
Integrating Sphere Size	Φ154mm
Light Source	360 nm to 780 nm, Combined LED Light, 400nm cut-off light source
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	360-780nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0-200%
Measuring Aperture	Reflective: Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive: Φ30mm/Φ25mm;
	Remark: Automatic identification of switch caliber, Customized Configuration caliber and lens position
Specular Component	Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99
Color Difference Formula	ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc(2:1), ΔE * cmc(1:1), ΔE * 00, DINΔE 99, ΔE (Hunter)
Other Colorimetric Index	WI (ASTM E313, CIE/ISO, AATCC, Hunter),
	YI (ASTM D1925, ASTM 313)
	MI (Metamerism Index)
	Staining Fastness, Color Fastness, Color Strength, Opacity,
	8° Glossiness, Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time	About 2.4s (Measure SCI & SCE about 5s)
Repeatability	Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
	Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
	Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Inter-instrument Error	Φ25.4mm/SCI, Within ΔE*ab 0.15
	(Average for 12 BCRA Series II color tiles)
Dimension	L*W*H=370x300x200mm
Weight	Approx. 9.6kg
Power	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB & Print serial port
Data Storage	Standard 2000 Pcs, Sample 20000 Pcs
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber
Optional Accessory	Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes: The specifications are subject to change without notice.
