Description

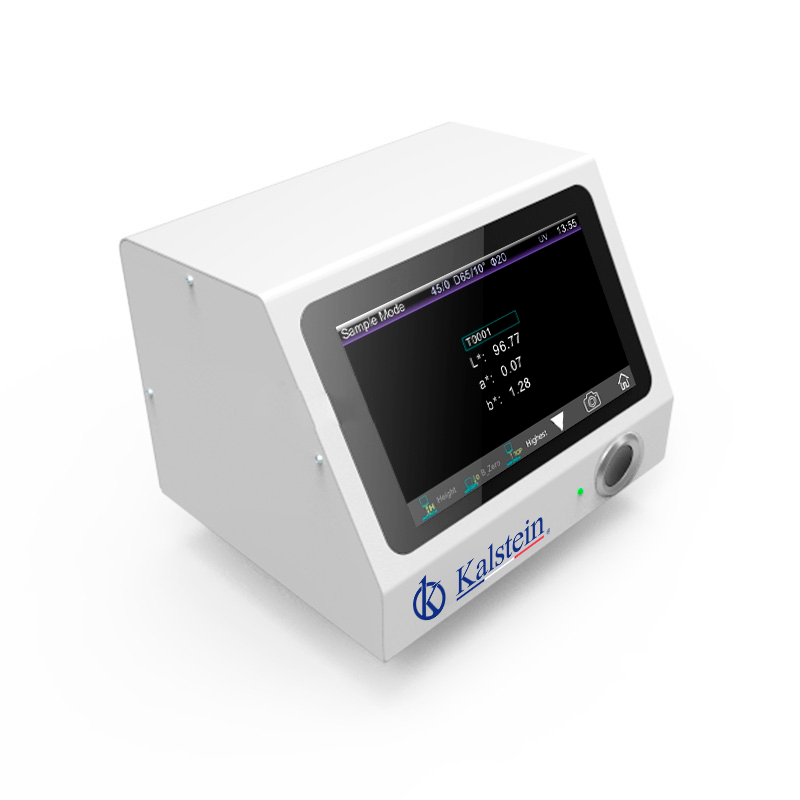

The Non-contact Benchtop Spectrophotometer YR05480 is a cutting-edge color measuring instrument engineered for non-contact precision in a variety of materials, including liquids, sauces, and powders. This advanced spectrophotometer features a D/8 standard color measuring geometry, utilizing diffuse illumination and 8° reception to ensure accurate color detection without direct contact with the sample. Its superior optical resolution, powered by a 256-pixel dual-matrix CMOS image sensor, provides exceptional measurement speed, accuracy, stability, and consistency, all while maintaining full compatibility with international standards.
Market Price
The Non-contact Benchtop Spectrophotometer market offers a variety of options, with prices generally ranging from $11,500 to $11,900. This makes the YR05480 a competitive option given its array of advanced features. For those seeking a precise and reliable spectrophotometer, the YR05480 is an investment worthy of consideration. For detailed pricing information, we encourage you to request a quote or generate one automatically via the Kalstein Plus platform.
Frequently Asked Questions
Q: Can the YR05480 measure samples of various thicknesses?
A: Yes, the YR05480 can handle samples of unlimited thickness, as it utilizes test probes rather than direct contact.
Q: How often does the instrument need calibration?
A: Regular calibration is recommended based on usage frequency. The YR05480 comes with a standard calibration plate for convenience.
Advantages and Disadvantages
Advantages: The YR05480 spectrophotometer offers unparalleled accuracy and consistency, supported by modern features like Bluetooth 5.0 for stable data transmission and a 7-inch TFT color LCD for easy data access. Its non-contact design minimizes contamination risks and allows for easy handling of delicate samples.
Disadvantages: Given its advanced capabilities, the YR05480 might be priced higher than simpler models without these features, making it a more significant investment upfront.
Product Use in the Field
This spectrophotometer is ideal for quality control on automated production lines, offering rapid measurement cycles of just 200 milliseconds. Its multi-observation light source options allow it to adapt to various testing conditions, making it indispensable for industries that require precise color management.
Recommendations
For optimum use, ensure the spectrophotometer is operated within its specified environmental conditions and regularly cleaned using the provided calibration plate. Allow the device to warm up before conducting measurements to enhance accuracy. Consider customizing the software functions if your application requires specialized parameters.
Features
- Non-contact testing capability
- Full-spectrum LED light source for accurate readings
- 256-pixel dual-matrix CMOS image sensor
- Supports multiple color spaces and light sources
- Bluetooth 5.0 connectivity
- Concave grating spectroscopy for higher resolution
Technical Specifications
| Model | YR05480 |
| Optical Geometry | D/8 (diffuse illumination, reception at 8°, SCI includes specular reflection light) |
| Complies with CIE standard No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 | |
| Features | Non-contact test between the test probe and the tested sample, to achieve accurate non-contact color measurement of liquids, sauces, powders, etc. Mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.2 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated). |
| Light Source | Full-spectrum LED light source, UV light source |
| Spectrophotometric Mode | Concave grid |
| Sensor | 256-pixel dual-matrix CMOS image sensor |
| Wave Range | 400~700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Φ20mm (Φ10mm can be customized) |
| Non-contact Distance | 3.0 mm (±0.2 mm) |
| Sample Height | Unlimited thickness, only test probes are used |
| Distance Adjustment Method | Fixed height according to actual sample |
| Measuring Mode | Software customization function (additional customization function to be evaluated) |
| Locating | Camera location |
| Color Space | Laboratory CIE,XYZ,Yxy,LCh,LUV CIE,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter),DINΔE99. |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter) |
| YI(ASTM D1925，ASTM 313) | |
| Index of Metamerism MI | |
| Stain resistance, color fastness, strength, opacity, opacity | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/ U30) |
| Data Shown | Spectrogram/values, sample chromaticity values, color difference/graphic values, color simulation, pass/fail result, display tolerance can be configured |
| Measuring Time | As fast as 0.2 seconds |
| Data Storage | Sample mode + Quality control mode 18,000 |
| Continuous statistical mode 30,000, for a total of not more than 48,000 | |
| Repeatability | In the optimal measurement mode (when the time of a single measurement is 1.5 seconds): |
| Spectral reflectance: within 0.1% of standard deviation: | |
| Chromaticity value: ΔE*ab within 0.03 (after warming up and calibrating the instrument, measure the average value of the slate 30 times within 5 s). | |
| Error Between Instruments | Within ΔE*ab 0.2 (Average value measured from 12 mosaics of BCRA series Ⅱ). |
| Method of Measurement | Single measurement, average measurement (2~99 times) |
| Dimension | 200*200*160mm (test probe) |
| Weight | Approx. 3 kg (test probe only) |
| Energy | AC 24V, power adapter power supply 3A |
| Illuminating Life | 5 years, more than 3 million times measurements |
| Monitor | 7-inch TFT color LCD, capacitive touch screen |
| Data Port | USB, Bluetooth®5.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40 ℃, 0~85 % RH (non-condensing), altitude: less than 2000 m |
| Storage Environment | -20~50℃, 0~85%RH (no condensation) |
| Standard Accessory | Power adaptor, manual, data cable, standard calibration plate, black calibration box |
| Notes | This model is especially suitable for optimized production lines, deep customization of functions will incur additional customization costs. |
