Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

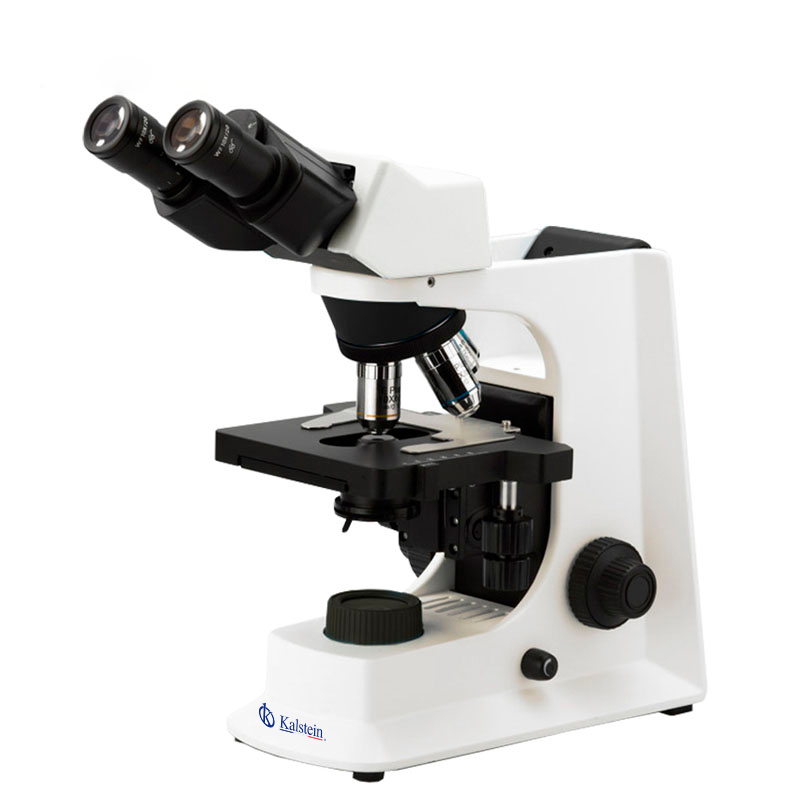

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 stands out for its exceptional optical performance and ergonomic design, making it an ideal choice for both educational and professional laboratory environments. Featuring a 30-degree inclined Seidentopf binocular head, it provides comfortable viewing for users of varying heights. The microscope incorporates an integrated eyepiece lens barrel that enhances durability and prevents contamination. Its mechanical stage, 3W-LED illumination system, and choice of Infinity Plan Objectives offer versatility and precision in observation.
Price in the Market
Microscopes of similar specifications typically range from $900 to $1,700 in the market. This competitive price bracket ensures that the Binocular Infinity Plan Laboratory Biological Microscope offers excellent value for its features. For precise pricing and to check current promotions, we invite you to generate a quote automatically through our platform Kalstein Plus.
Frequently Asked Questions
What types of objectives are available with this microscope?
This microscope is equipped with four types of objectives: Achromatic, Plan, Infinity E-Plan, and Infinity Plan, providing great flexibility in research applications.
Is the lighting suitable for prolonged use?
Yes, the 3W-LED illumination system is designed for extended use, offering consistent lighting while being energy efficient. Moreover, it supports outdoor power bank supply for fieldwork.
Advantages and Disadvantages
The microscope's advantages include its ergonomic design, superior optical quality, integrated eyepiece security, and versatile lighting options. A potential disadvantage could be its weight, as the unit has a gross weight of 7.5 kgs, which may be less portable compared to more compact models.
Product Use in the Field
This microscope is ideally employed in biological, educational, and clinical laboratories for detailed cellular studies and sample analyses. Its robust design makes it perfect for continuously moving between classrooms or laboratory stations without losing calibration accuracy.
Recommendations
To maximize the performance and longevity of your Binocular Infinity Plan Microscope, regular cleaning of the lenses and proper storage when not in use are recommended. For enhanced imaging, consider upgrading to the Kohler illumination system available as an optional feature.
Features
- Inclined 30°, rotatable 360° head with interpupillary distance adjustment.
- Mechanical stage measuring 145 mm x 140 mm with a travel range of 76 mm X 52 mm.
- Variety of infinity plan objectives for versatile usability.
- 3W-LED illumination system with safety low voltage charger compatibility.
- Optional upgrades for dark field, phase contrast, and polarization capabilities.
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |

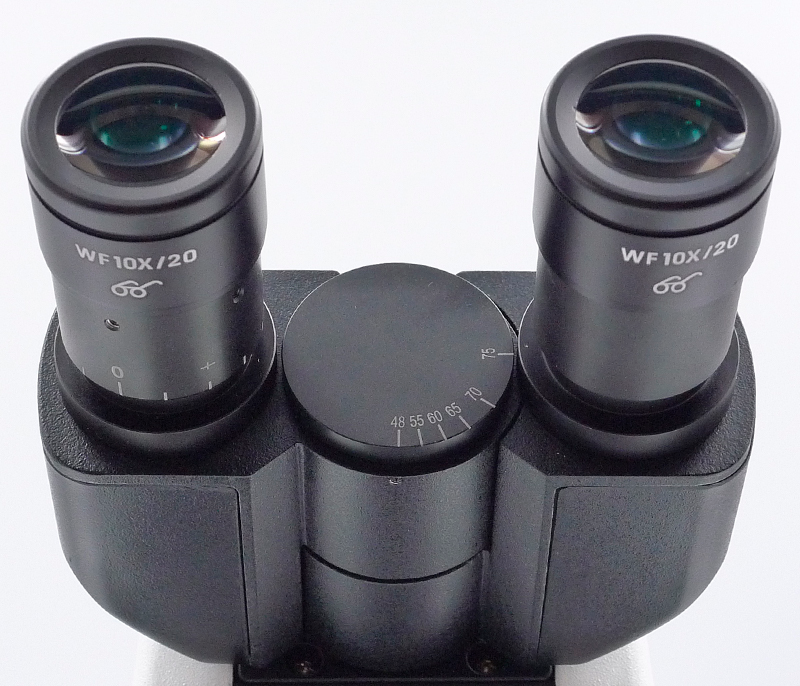

| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

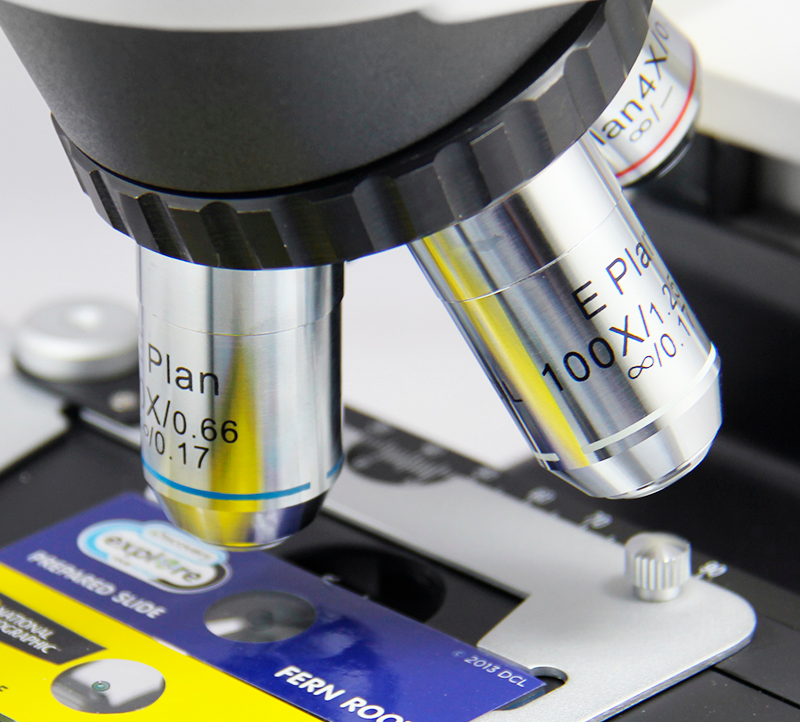

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

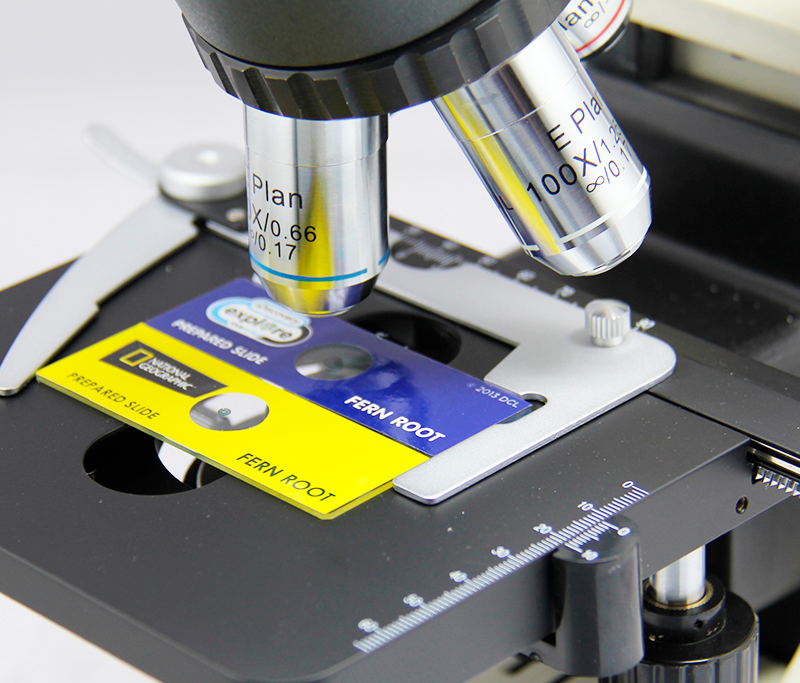

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

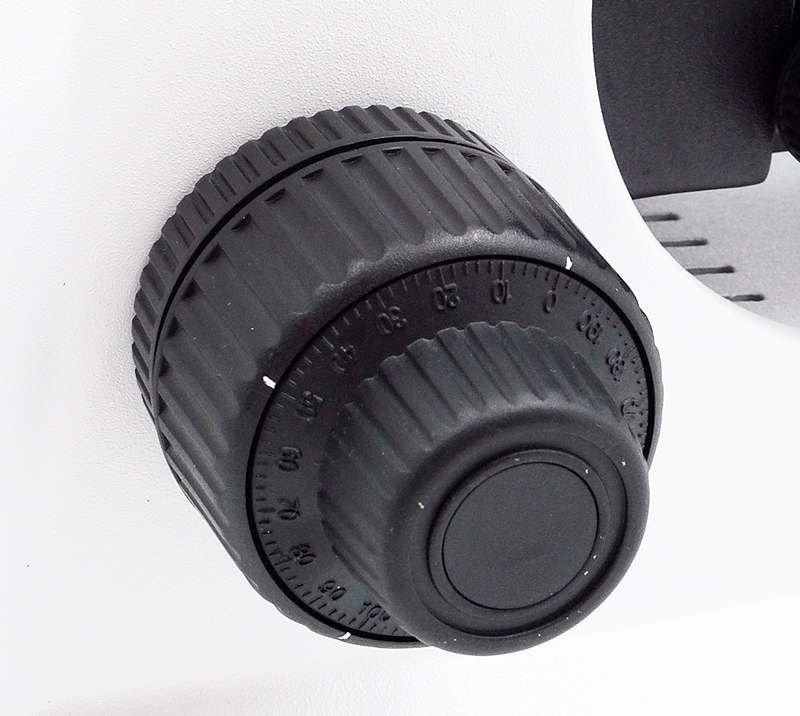

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

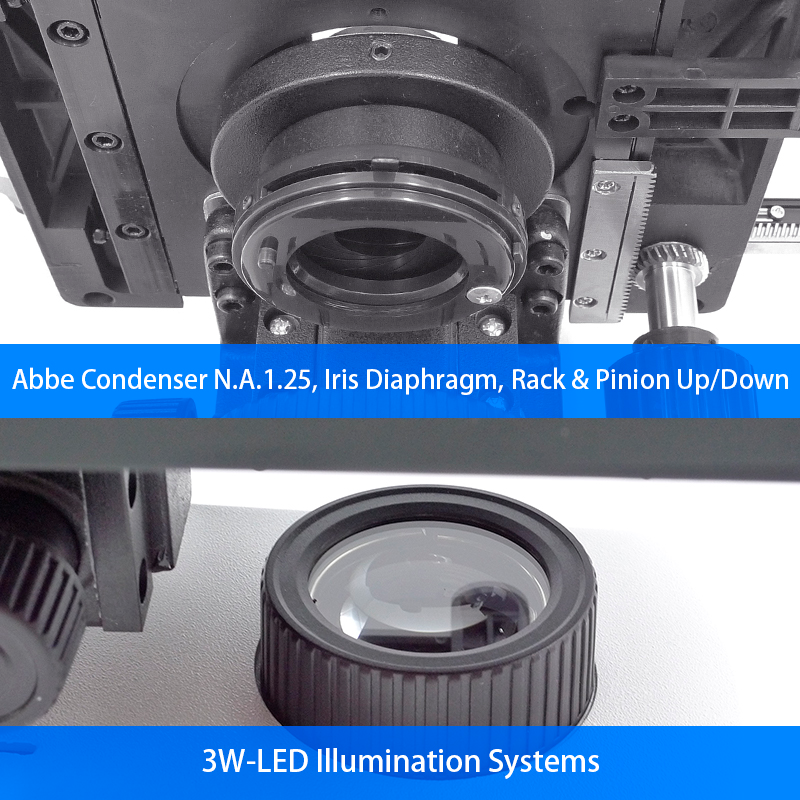

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

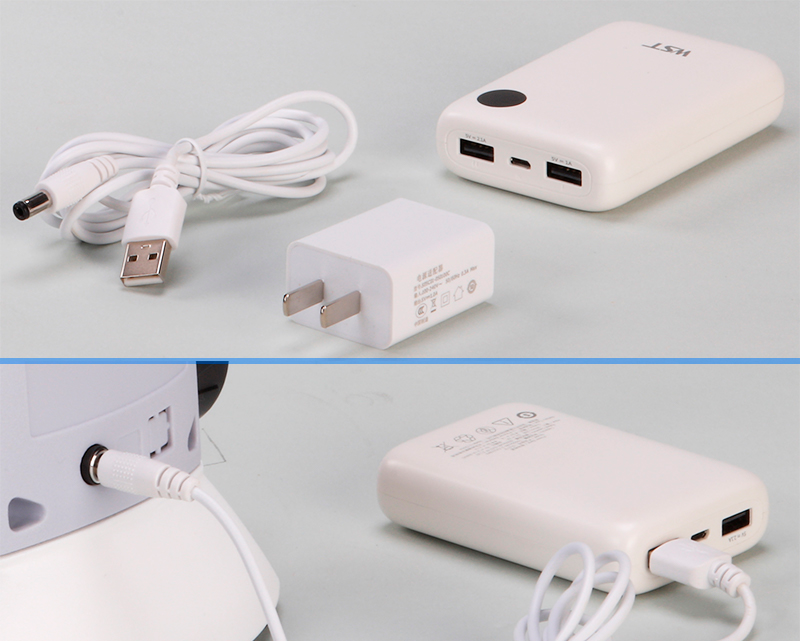

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |
| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
Technical specifications
| Weight | 8.5 kg |
|---|---|
| Manufacturer | Kalstein |
