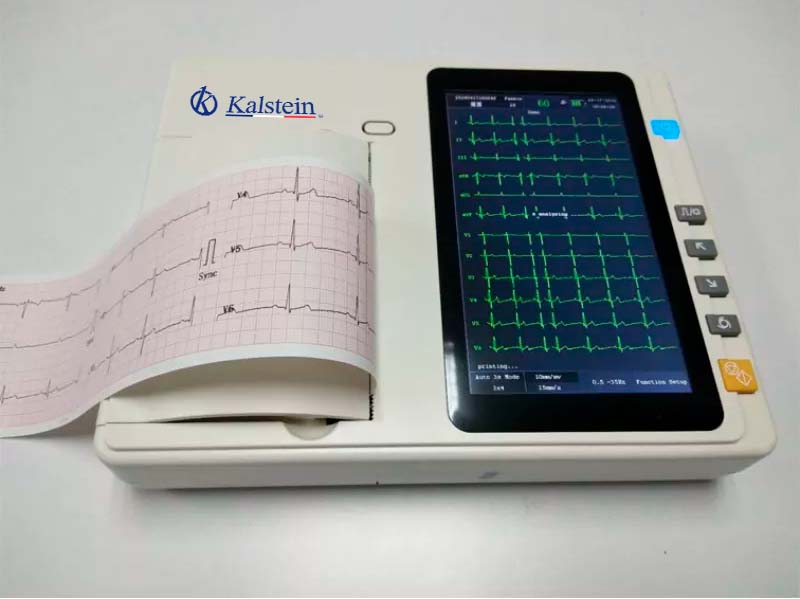

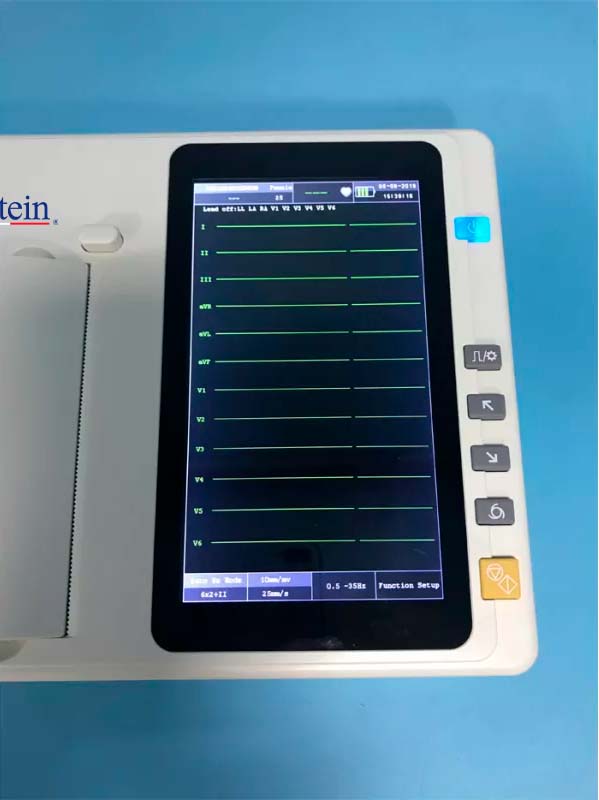

YR05159 Medical Ecg Machine 12 derivations 6 Channel

The YR05159 Medical Ecg Machine 12 Derivations 6 Channel is a state-of-the-art electrocardiograph designed to provide accurate and simultaneous collection of 12-lead ECG signals. Equipped with a crisp 7-inch touch screen, it supports advanced ECG analysis capabilities, making it an essential tool for detecting abnormal heart rhythms and diagnosing the causes of chest pain. Its thermal printing system ensures that ECG waveforms are clearly documented and ready for analysis by healthcare professionals.

Market Pricing

In the competitive landscape of ECG machines, prices can vary significantly based on the functionality and brand. The YR05159 Medical Ecg Machine is typically priced within a range of $500 to $800. This price reflects its cutting-edge features and robust performance, making it a sound investment for medical facilities aiming to offer the highest standard of patient care.

Frequently Asked Questions

Q: Is the YR05159 ECG machine easy to operate? A: Yes, the touch screen interface and intuitive design make it user-friendly even for those with minimal technical expertise. Q: How portable is this ECG machine? A: While it boasts a powerful set of features, the compact design ensures it is easy to transport between different clinical settings.

Advantages and Disadvantages

Advantages: The YR05159 stands out for its simultaneous 12-lead ECG signal collection, clear graphical LCD display, and comprehensive ECG analysis features. Disadvantages: Some users might find the initial setup of the machine to be slightly technical, but the user manual provides clear guidance.

Product Usage in the Field

Whether in a bustling hospital environment or a quieter clinic setting, the YR05159 Medical Ecg Machine proves invaluable. Its ability to quickly capture and print ECG data allows for timely diagnosis and response to cardiac events. Medical professionals can rely on this machine to perform routine check-ups or respond to emergencies with precision.

Recommendations

To maximize the potential of the YR05159 ECG Machine, regular maintenance and calibration are recommended. Keeping the device clean and ensuring software updates are applied will prolong its life and enhance performance. Healthcare providers are encouraged to train staff regularly on its use to ensure efficiency.

Features

• 7-inch graphic LCD touch screen
• Simultaneous 12-lead ECG signal collection
• Automatic and manual recording modes
• Thermal printing system
• Defibrillator protection circuit
• Advanced ECG analysis

Technical Specifications

Model	YR05159
Screen	7 ″ touch LCD
Signals	12-lead simultaneous capture
Recording Modes	Automatic and Manual
Input Impedance	≥50MΩ
Patient Current Leak	<10μA
Sensitivity	2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV
Paper Speed	12.5mm/s, 25mm/s, 50mm/s
Power Supply	AC: 100 ~ 240V, 50 / 60Hz
Safety Rating	IEC60601-1 Class I, CF type
Thermal Printer	Yes, integrated
