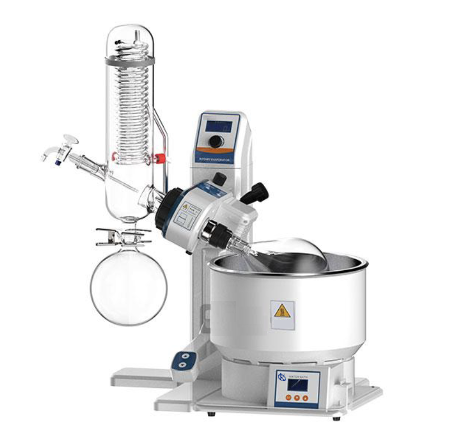

Rotary Evaporator YR02306
Rotary Evaporator YR02306 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

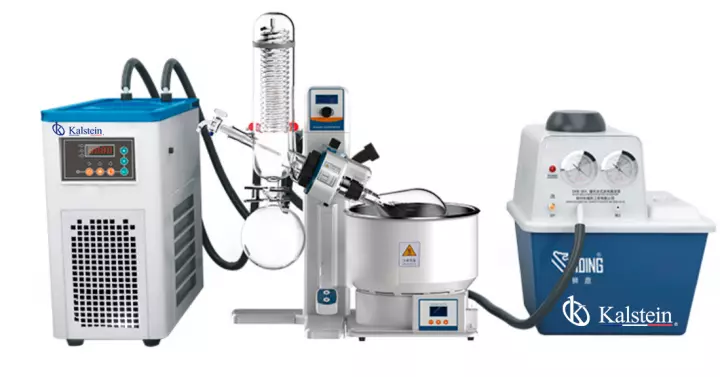

The Rotary Evaporator YR02306 is an essential tool for chemical laboratories and industrial applications that involve evaporation, distillation, or the separation of chemical substances. This advanced device pairs seamlessly with a water-circulating vacuum pump and recirculating chiller to create an efficient processing system. With precise temperature control facilitated by a PID controller and an adjustable tilt angle for the evaporating flask, the YR02306 ensures superior performance and user convenience.
Market Price
The Rotary Evaporator YR02306 is competitively positioned in the market, typically ranging from $3300 to $4100. This price range reflects its advanced features and reliable performance. To get a more accurate quote tailored to your needs, we invite you to request a quotation through our platform, Kalstein Plus.
Frequently Asked Questions
Q: Does the YR02306 include a vacuum pump or recirculator?
A: No, the vacuum pump and recirculator are sold separately. You can opt for models YR02301 (Recirculator) and YR05158 (Vacuum Pump) for a complete set.
Q: Is the tilt angle of the flask adjustable?
A: Yes, the patented design allows the tilt angle of the evaporating flask to be adjustable for optimized usage.
Advantages and Disadvantages
Advantages:
- Exceptional precision with PID temperature control.
- Adjustable flask tilt angle for diverse applications.
- Wide power supply range accommodating various setups.
- Motorized lift enables smooth operation.
- Effortless installation and removal via a quick lock button.
- Low noise emission due to the synchronous belt drive mechanism.
- Does not include necessary vacuum pump or recirculator, which must be purchased separately.
- Initial setup may require a detailed understanding of laboratory protocols.
Field Use
The Rotary Evaporator YR02306 is widely utilized in environments that demand efficient solvent removal and recovery. Commonly found in chemical, pharmaceutical, and biochemical labs, this evaporator streamlines workflow by offering a reliable apparatus for routine distillation or purification processes. Its robustness makes it a favorite for scaling up laboratory reactions to pilot plant levels.
Recommendations
To ensure optimal performance of your Rotary Evaporator YR02306, here are some recommendations: always perform regular maintenance as indicated in the manual, ensure the compatibility of accessory devices such as vacuum pumps and chillers, and conduct initial test procedures to understand the specific settings required for varying chemical compositions encountered in your work.
Features
- Patented double sealing technology with Teflon (PTFE) and FV rubber.
- Wide voltage compatibility: 100V to 240V, 50/60Hz.
- Precise temperature control with PID technology.
- Adjustable evaporating flask tilt angle.
- Motorized lift for smooth operation.
- Synchronous belt drive for low noise.
- Easy future upgrades with individual component design.
Technical Specifications
| Model | YR02306 | |
| Rotaion Speed | 10~280 rpm | |
| Pressure rise rate of vacuum system | <=0.33kPa/min | |
| Temperature Range | RT+5~95℃ | |
| Temperature Stability | ±1℃ | |
| Temperature Control | Keypad input, digital display | |
| Speed Control | Knob setting, digital display | |
| Lifting | Motorized lift | |
| Lifting Distance | 150mm | |
| Lifting Speed | 10mm/s | |
| Rotary Motor Power | 40W | |
| Heating Power | 1300W | |
| Condensing Area | 0.126m2 | |
| Evaporating Flask | 500ml, 1000ml | |
| Receiving Flask | 1000ml | |
| Vacuum Sealing | Double sealing rings made of Teflon+ Viton materials | |
| Water Bath size ·Capacity | 250×130mm·6.5L | |
Evaporating Speed | Water | 23ml/min |
| Ethanol | 26ml/min | |
Power Supply | Main Machine | 100V~240V, 50/60Hz |
| Water Bath | 110V~, 60Hz or 220-240V~, 50/60Hz | |
| Ambient temperature | 5~35℃ | |
| Environment Relative Humidity | <=70 | |
| Protection Class of Shell | IP20 | |
| Pollution Prevention Grade | Grade 2 | |
| Dimensions | 595W*390D*680Hmm | |
Net Weight | Main Machine | 10KG |
| Water Bath | 3.9KG | |
| The Rotary Evaporator model YR02306 does not include vacuum pump or recirculator, these can be included as required, the models would be YR02301 (Recirculator) + YR05158 (Vacuum Pump), for the complete set. | ||
Technical specifications
| Weight | 31 kg |
|---|---|
| Manufacturer | Kalstein |
Image gallery
Frequently asked questions
How to know the prices of Rotary Evaporator YR02306?
To know the price of Rotary Evaporator YR02306, please send us an email with your request through the contact form AQUI.
What are the delivery times for Rotary Evaporator YR02306?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Rotary Evaporator YR02306?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Rotary Evaporator YR02306?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Rotary Evaporator YR02306?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
