Description

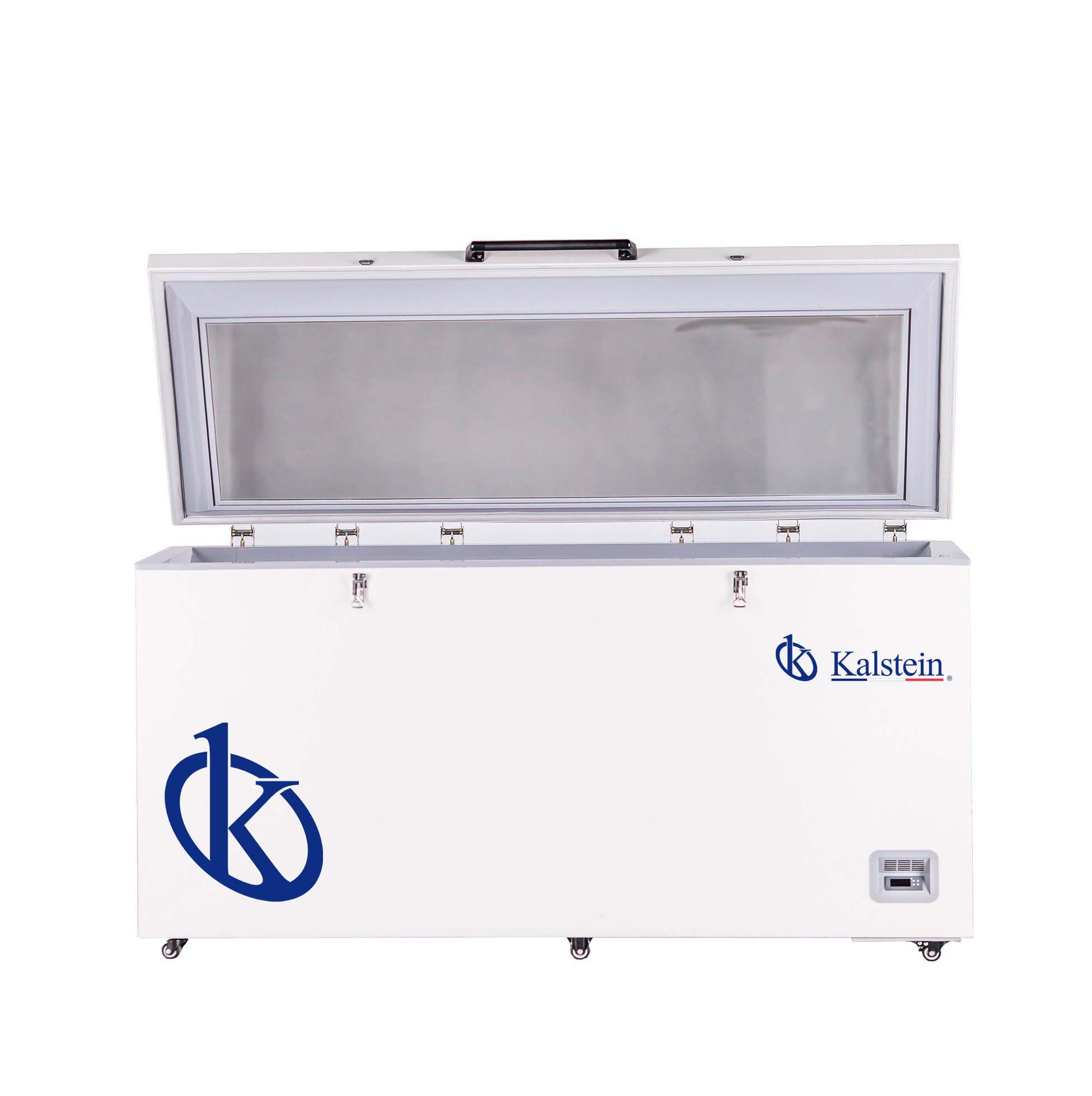

The Ultra Low Temperature Chest Freezer -86C Self Cascade System YR05314 is an essential piece of equipment for laboratories and hospitals requiring ultra-low temperature storage solutions. With a generous capacity of 485 liters, this freezer is designed for optimal performance with its advanced self-cascade refrigeration system. The unit boasts a temperature range adjustable from -40ºC to -86ºC, ensuring precise control for sensitive samples. Enhanced safety features like the digital display, high and low-temperature alarms, and a lockable keyboard provide peace of mind. The eco-friendly refrigerant and high-density insulation make it an energy-efficient choice with a sleek, durable stainless steel and color-sprayed exterior.
Market Price Overview
The market price for ultra low temperature freezers varies, with this model typically ranging from $7,500 to $7,800. These freezers are considered high-end due to their advanced features and critical applications in professional settings. It’s a worthwhile investment for laboratories and medical facilities prioritizing efficiency and reliability.
Frequently Asked Questions
- What is the power consumption of this freezer? The freezer consumes approximately 11.5 kWh per 24 hours.
- Can this freezer be used in high ambient temperatures? Yes, it is designed to operate effectively within ambient temperatures ranging from 10 to 32ºC.
- Does the freezer come with a battery backup? Yes, it includes a 12-hour power failure backup system to ensure sample safety during outages.
Advantages and Disadvantages
Advantages: High precision temperature control, energy-efficient operation, spacious capacity, and comprehensive alarm systems provide unmatched security for valuable samples.
Disadvantages: It may require professional installation due to its size and technical nature, and its high energy needs require a stable power source.
Application in the Field
This freezer is ideal for storing biological samples, vaccines, and other temperature-sensitive materials in clinical laboratories, research institutions, and hospitals. Its robust build and reliable cooling system ensure that these critical materials are stored safely over extended periods.
Recommendations
To maximize the efficiency and lifespan of the Ultra Low Temperature Chest Freezer, regularly monitor and log temperature readings, ensure adequate ventilation around the unit, and periodically check the door seals for any wear or damage to maintain optimal insulation.
Features
- Safety door lock design to prevent accidental opening
- Wide voltage compatibility (AC187V-242V)
- Silent operation suitable for noise-sensitive environments
- Large digital display for easy monitoring
- Advanced thermal insulation with optional second door seal
- Mobile, with lockable wheels for stability during storage
- Comprehensive alarm system including temperature and sensor malfunction alerts
- Eco-friendly refrigerant and insulation materials
Technical Specifications
| Model | YR05314 | |
| Specificaitons | Shelf/drawer QTY | / |
| Cooling | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed-gas | |
| Power Consumption(kWh/24h) | 11.5 | |
| Noise(db) | 54.5 | |
| Ambient temperature(℃) | 10~32℃ | |
| Temperature range(℃) | -40~-86℃ | |
| Cooling system | Compressor brand/QTY | SECOP/1 |
| Sensor | PTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 670W | |
| Current(A) | 3.57 | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 485/17.12 |
| NT./GT.(kg) | 127/152.5 | |
| Exterior size(W*D*H)(mm) | 1700*830*980 | |
| Interior size(W*D*H)(mm) | 1455.5*525.2*674 | |
| Package size(W*D*H)(mm) | 1780*910*1080 | |
| CBM | 1.75 | |
| 20GP/40GP/40HQ | 6/13/13 | |
| Frozen Racks | Racks | 30(11X1,6X1) |
| Boxes (2 Inches) | 300 | |
| Samples(2ml) | 30000 | |
| Alarm | High/low temperature | Y |
| Power failure | / | |
| Abnormal voltage | / | |
| Sensor error | Y | |
| Filter screen check | / | |
| Thermostat failure | Y | |
| Low battery | / | |
| Condenser clean | / | |
| High ambient temperature | / | |
| Door ajar | / | |
| Power failure backup system(alarm) | 12h | |
| Accessories | Castor | Y |
| Inside door | / | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | / | |
| Chart recorder | / | |
| Data logger | Optional | |
| Remote alarm port | / | |
| Optional | CO2 back up system | Optional |
| LN2 back up system | Optional | |
| Other | Certification | ISO.CE |
