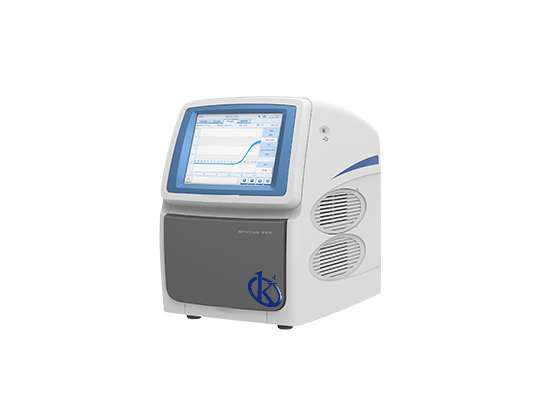

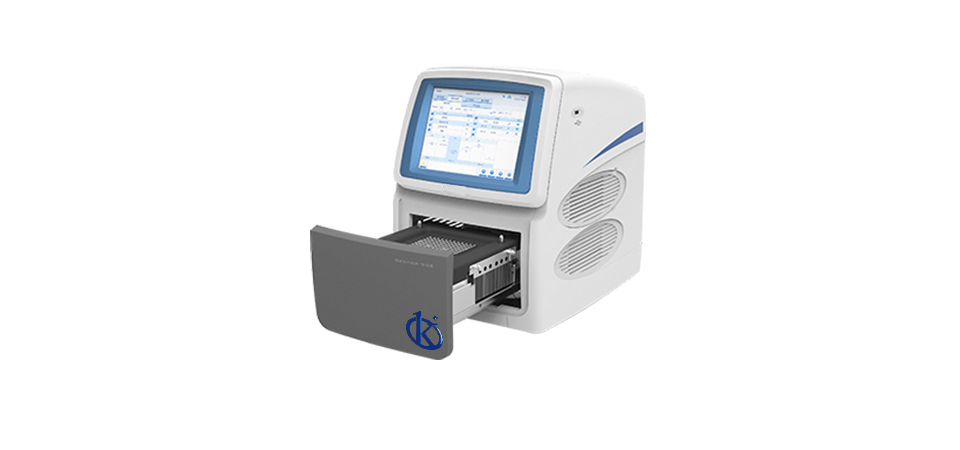

Real-time PCR System YR01869
Real-time PCR System YR01869 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Real-time PCR System YR01869 is a state-of-the-art instrument designed specifically for high-end laboratory environments. With its advanced five fluorescence channels, this PCR machine can process up to 96 samples simultaneously, ensuring outstanding efficiency. Highlight features include a potent temperature control system, easy-to-use software, and intuitive operating designs. Whether for basic PCR applications or more complex experimental needs, this system guarantees maximum reliability and performance.
Market Pricing
The Real-time PCR System YR01869 is positioned in the market within a price range typically spanning from USD 8500 to USD 9600. This range reflects the average market cost for high-precision medical laboratory equipment of this caliber. For lab managers interested in optimizing their budgets, personalized price quotations can be requested through our platform Kalstein Plus.
Frequently Asked Questions
Does the YR01869 system accommodate various dye compatibility? Yes, it supports multiple dye channels, including FAM, HEX, ROX, and more.
How long does it take to perform a fluorescence scan? The system performs a complete 96-well fluorescence scan in just 7 seconds.
Advantages and Disadvantages
The YR01869 stands out for its high throughput, user-friendly interface, and robust temperature control, making it an excellent choice for demanding laboratory environments. However, its advanced capabilities may come at a premium, which could be a consideration for labs with limited budgets.
Product Use in Field
The Real-time PCR System YR01869 is used extensively in research labs focusing on genetics, molecular biology, and pharmaceuticals. Its capacity to conduct quick, reliable PCR tests makes it invaluable in scenarios where time is critical, such as in clinical diagnostics and pandemic response studies.
Recommendations
To maximize the lifespan and performance of the YR01869, regular maintenance checks and software updates are recommended. Ensure that the system operates within its specified temperature and voltage ranges for optimal results.
Features
- Processes up to 96 samples simultaneously
- Five fluorescence detection channels
- Advanced Peltier-based temperature control
- Touchscreen and PC software control options
- Automatic recovery post power failure
Technical Specifications
| Model | YR01869 |
| Throughput | ene-96 |
| Fluorescence Channels | 6 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
| Channel 2: HEX, VIC, TET, JOE | |
| Channel 3: ROX, Texas Red | |
| Channel 4: Cy5 | |
| Channel 5: Alexa Fluor 680 | |
| Channel 6: FRET | |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
| Repeatability: cycle threshold (Ct) value CV≤0 0.5% | |
| Software Functions | |
| Control Modes | Model 1: 10.4 inch touch screen |
| Mode 2: PC direct control | |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
Technical specifications
| Weight | 38 kg |
|---|---|
| Manufacturer | Kalstein |
