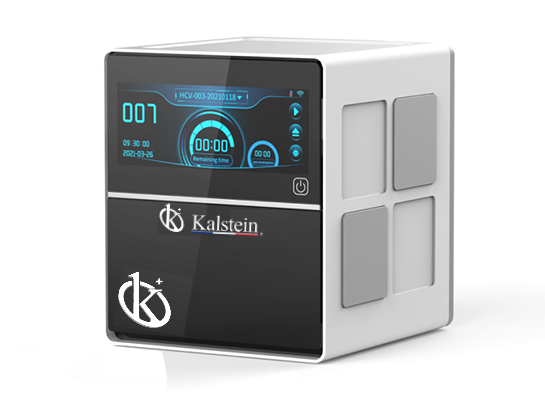

Automatic Nucleic Acid Extractor YR01869-2
Automatic Nucleic Acid Extractor YR01869-2 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Automatic Nucleic Acid Extractor YR01869-2 is a state-of-the-art device boasting rotary mixing technology, ideal for simultaneous extraction tasks. Its innovative design ensures 16 x n different flow rates without interference, while the separate extraction module enhances performance for immediate testing needs. Awarded the German Red Dot Design Award 2021, this user-friendly extractor is perfect for laboratories seeking efficient and rapid nucleic acid extraction. With its automated workflow, remote updates, and mobile power, YR01869-2 excels in versatility, making it an investment well-suited for modern scientific environments.
Market Price
The market price for advanced nucleic acid extractors like the YR01869-2 generally ranges between $8,500 and $9,600 USD. Such pricing reflects the incorporation of sophisticated features and capabilities tailored to meet diverse laboratory requirements, justifying its position as a premium yet essential choice for enhanced productivity.
Frequently Asked Questions
What power supply is required for the YR01869-2?
The extractor operates with an AC220V, 50Hz power supply, suitable for most laboratory standards.
How does the device minimize contamination?
It features a UV lamp, internal negative pressure, HEPA filtration, and rotary mixing to reduce aerosols, with an option to function within a biosafety cabinet.
Advantages and Disadvantages
Pros:
- Flexible performance with adaptable flow rates
- User-friendly touchscreen or app control
- Advanced contamination control features
Cons:
- Higher initial investment compared to basic models
- Requires technical knowledge for optimal use
Field Use
Deployed extensively in laboratories, the YR01869-2 excels in diverse experimental conditions, thanks to its mobility and dual control modes. Its robust design allows for easy initiation of experiments in various settings, adapting seamlessly to specific project needs across fields like molecular biology, genetics, and forensic analysis.
Recommendations
To maximize the lifespan and efficiency of the YR01869-2, ensure regular maintenance checks and software updates. Employ its remote updating capabilities to keep protocols current, and frequently monitor and clean the extraction module for optimal performance. For budget-conscious labs, consider utilizing the Kalstein Plus platform for competitive pricing and convenient self-service quotations.
Features
- Rotary mixing technology for effective extraction
- Automated workflow with remote updates
- User-friendly operation with LCD touchscreen and app control
- Advanced contamination control measures
- Flexible protocol management
- Integrated power failure protection
Technical Specifications
| Model | YR01869-2 |
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. |
| Temperature range from 30°C to 120°C. | |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. |
| Temperature accuracy: ±1.0°C. | |
| Temperature uniformity:≤1.0°C. | |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets |
| Mode 2: 6.86 inch full-color LCD screen | |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
Technical specifications
| Weight | 11 kg |
|---|---|
| Manufacturer | Kalstein |
