Standard Color Light Box YR05530

• YR05530 color light box will show the using time, light source name and switch times of each light source.
• Automatically switch and with the function of metamerism.
• Without preheating, no flicker.
• Law energy consumption and high luminous efficiency.
• Equipped with whole sets of British and American standard light sources.
• Contains A light source in American Standard
• The name of light sources is changeable.
• TILO is international famous brand.

Product Features

• YR05530 color light box will show the using time, light source name and switch times of each light source.
• Automatically switch and with the function of metamerism.
• Without preheating, no flicker.
• Law energy consumption and high luminous efficiency.
• Equipped with whole sets of British and Americanstandard light sources.
• Contains A light source in American Standard.
• The name of light sources is changeable.
• TILO is international famous brand.

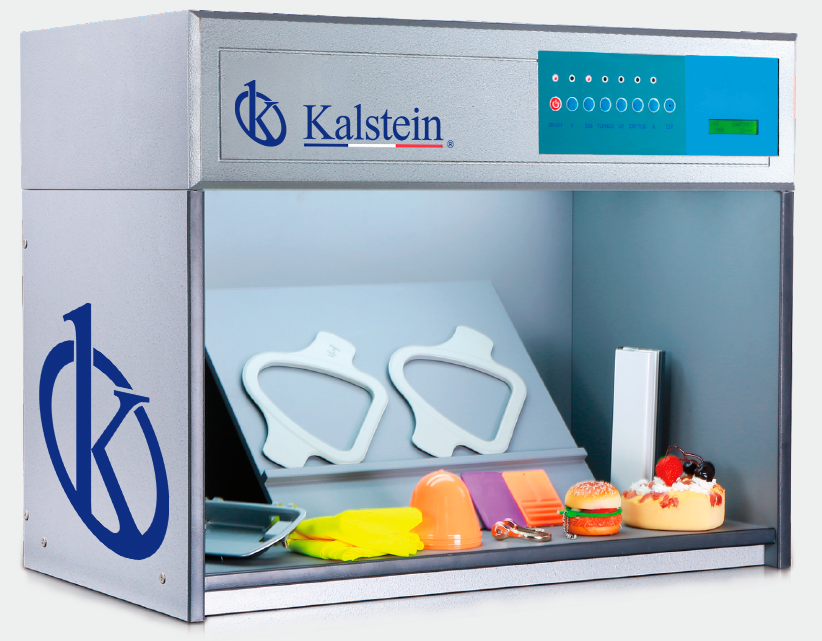

YR05530 Six-light sources light box adopts fully computer-controlled light-touch buttons to switch light sources at will, and can permanently record the name of each light source, the use time and the number of switching times. lt has the function of testing the metamerism effect. lt is implemented in accordance with international standards (ISO, ASTM, DIN, BSI, ANSI, CIE), and passes the national measurement inspection with an authoritative test report.

Application Industry

YR05530 Six sources standard light box is suitable for color management in textiles, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, ceramics, footwear, leather, hardware, food, cosmetics and other industries, used to accurately check the color deviation of items.

Technical Description

Model	YR05530
Project	parameters
Configuration	F, D65, TL84, UV, CWF/TL83, A in Total Six Light Sources
Weight	28Kg
Size(L*W*H)	71 0x530x570 mm
Optional Accessory	Light source diffuser, 45 degree standard stand

Light source

Name	Color Temperature	Power
D65 International standard Artificial Daylight	6500K	18W
TL84 Applied to stores in Europe, Japan and China	4000K	18W
CWF (Cool White Fluorescent) American Standard	4150K	18W
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset)	2700K	40w
UV Viewing under ultraviolet light to detect and evaluateoptical brighteners or fluorescent pigments	365mm	18w
A American shopwindow spotlight	2856K	60 vatios
TL83 Fluorescente blanco cálido Estándar europeo	3000K	18 semanas
