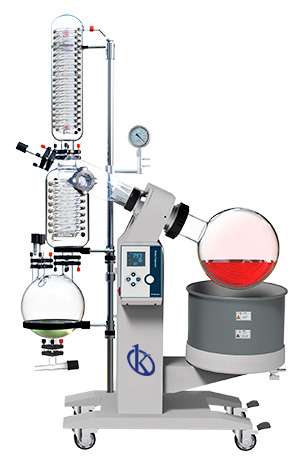

Rotary Evaporator YR02307 // YR02310
Rotary Evaporator YR02307 // YR02310 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Rotary Evaporator YR02307 and YR02310 models are designed to enhance the efficiency of solvent evaporation in various industries such as biology engineering, pharmaceuticals, chemical processing, and food production. With large capacity evaporating flasks, these devices offer extensive evaporation surfaces. The continuous rotation of the flask, combined with constant heating from a water bath and vacuum conditions, ensures optimal evaporation efficiency. These models are often paired with additional equipment like water circulating vacuum pumps, diaphragm pumps, and recirculating chillers to maximize performance.
Market Price
The rotary evaporator market offers a range of prices depending on the model and specific features. For the YR02307 and YR02310 models, the cost typically ranges between approximately $11,150 and $11,950 USD. This variance reflects the versatility and advanced engineering of these machines, making them a valuable investment for laboratories and production facilities.
Frequently Asked Questions
What industries benefit the most from these rotary evaporators? These devices are highly beneficial in the pharmaceutical, biotechnology, chemical, and food processing industries due to their efficiency in solvent evaporation.
Are they easy to maintain? Yes, these models are designed for durability and ease of use, with corrosion-resistant materials and automated features reducing the need for regular maintenance.
Advantages and Disadvantages
The Rotary Evaporator YR02307 and YR02310 models come with several advantages, including a patented double sealing technology that ensures negative pressure stability, continuous collection without vacuum loss, and a Teflon discharge valve for corrosion resistance. However, their size may require significant installation space, which could be a limitation for smaller laboratories.
Product Use in the Field
These rotary evaporators are essential in labs for efficient and safe solvent removal tasks. By maintaining a constant rotation and heating of the evaporating flask, they enhance solvent evaporation rates, making them indispensable for scaling up processes in pharmaceutical and chemical synthesis.
Recommendations
To maximize the longevity and efficiency of your rotary evaporator, it's recommended to perform regular checks on seals and vacuum pumps, ensure proper installation of all associated equipment, and follow the manufacturer's guidelines on operational capacity. For better results and continuous operation, integrating with a Kalstein Plus system can facilitate easy access to maintenance support and technical assistance.
Features
- Large capacity evaporating flasks with extensive surface area.
- Patented sealing technology for reliable vacuum conditions.
- Automatic switch valve for uninterrupted distillation.
- Corrosion-resistant Teflon components.
- Protective water bath jacket to enhance user safety.
Technical Specifications
| Model | YR02307 | YR02308 | YR02309 | YR02310 | |||||
| Evaporating flask | 5L, flange opening: Φ50mm | 10L, flange opening: Φ125mm | 20L, flange opening: Φ125mm | 50L, flange opening: Φ125mm | |||||
| Receiving flask(L) | 3 | 5 | 10 | 20 | |||||
| Speed-regulation | DC stepless speed-regulation | ||||||||
| Power supply | 220V-240V, 50/60Hz | 3~, 380V, 50Hz | |||||||
| Overall power(kW) | 2.3 | 3.8 | 6.3 | 6.3 | |||||
| Rotation speed (rpm) | 20~140 | 20~130 | 20~130 | 20~110 | |||||
| Power of motor(w) | 250 | 250 | 250 | 250 | |||||
| Condenser | Vertical type double coil pipe | Vertical type, Main + auxiliary triple-circulating cold traps | |||||||
| Bath material | Stainless steel 304 | ||||||||
| Temperature range | RT~99℃ | ||||||||
| Temperature display | Digital display | ||||||||
| Sealing | 20mbar/h | ||||||||
| Evaporating Speed (L/h) | Water | 2.0 | 3.2 | 5.0 | 9.0 | ||||
| Ethanol | 5.4 | 8.6 | 14.3 | 24.5 | |||||
| Lifting function | Motorized Lift | Motorized lift + Manual lift | |||||||
| Elevating stroke(mm) | 0~150 | 0~160 | 0~190 | 0~180 | |||||
| Dimensions(mm) | 835W×400D×1090H | 990W×550D×1655H | 1195W×635D×2070H | 1345W×770D×2140H | |||||
| Net Weight(kg) | 60 | 85 | 115 | 200 | |||||
Technical specifications
| Manufacturer | Kalstein |
|---|
