Description

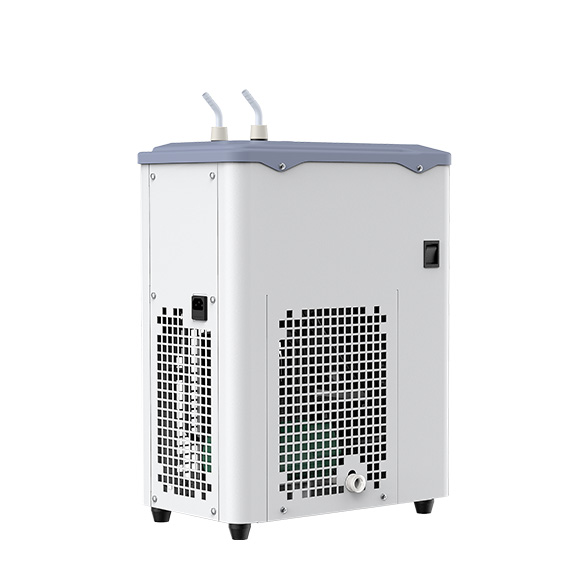

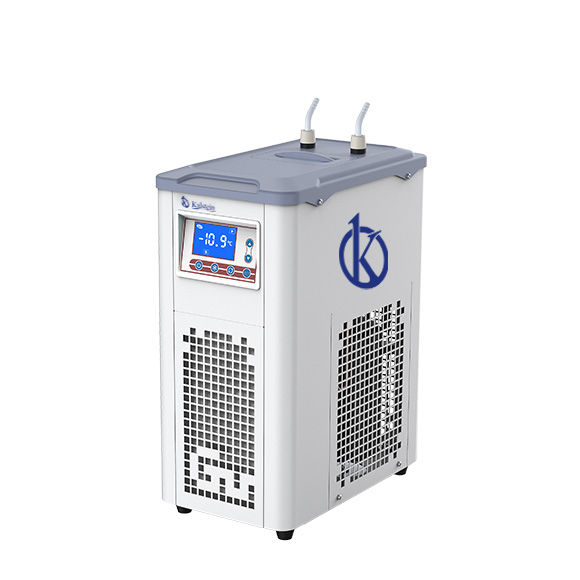

This compact chiller is particularly designed for lab scale rotary evaporator. It is reasonably structured with small foot-print, which can be placed on bench or on floor.
Advantages
- Circulating joint nozzle can be rotated 360° which makes it easy to connect with corollary equipment
- All parts contacting refrigerant is made of stainless steel 304 and macromolecule anti-corrosive material
- World famous brand compressor ensures high reliabilit
| Model | YR02301 |
| Working Temperature Range | -15-25℃ |
| Power Supply | 220-240V～ 50Hz |
| Overall Power | 450W |
| Cooling Capacity | 400W |
| Refrigerant | R134A |
| Bath Fluid Filling Volume | 3L |
| Material of Bath Fluid Tank | Stainless Steel 304 |

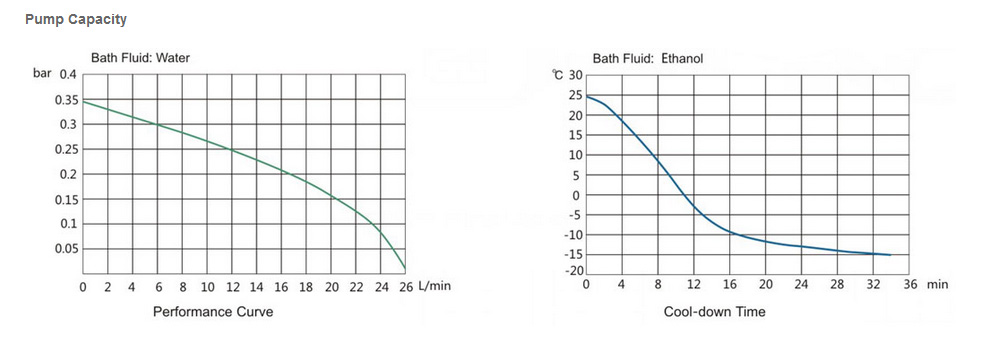

| Circulating Pump Flow Rate | 17L/min |
| Pump Pressure | 0.2bar |
| Dimensions | 260W*410D*550H mm |
| Net Weight | 26kg |
