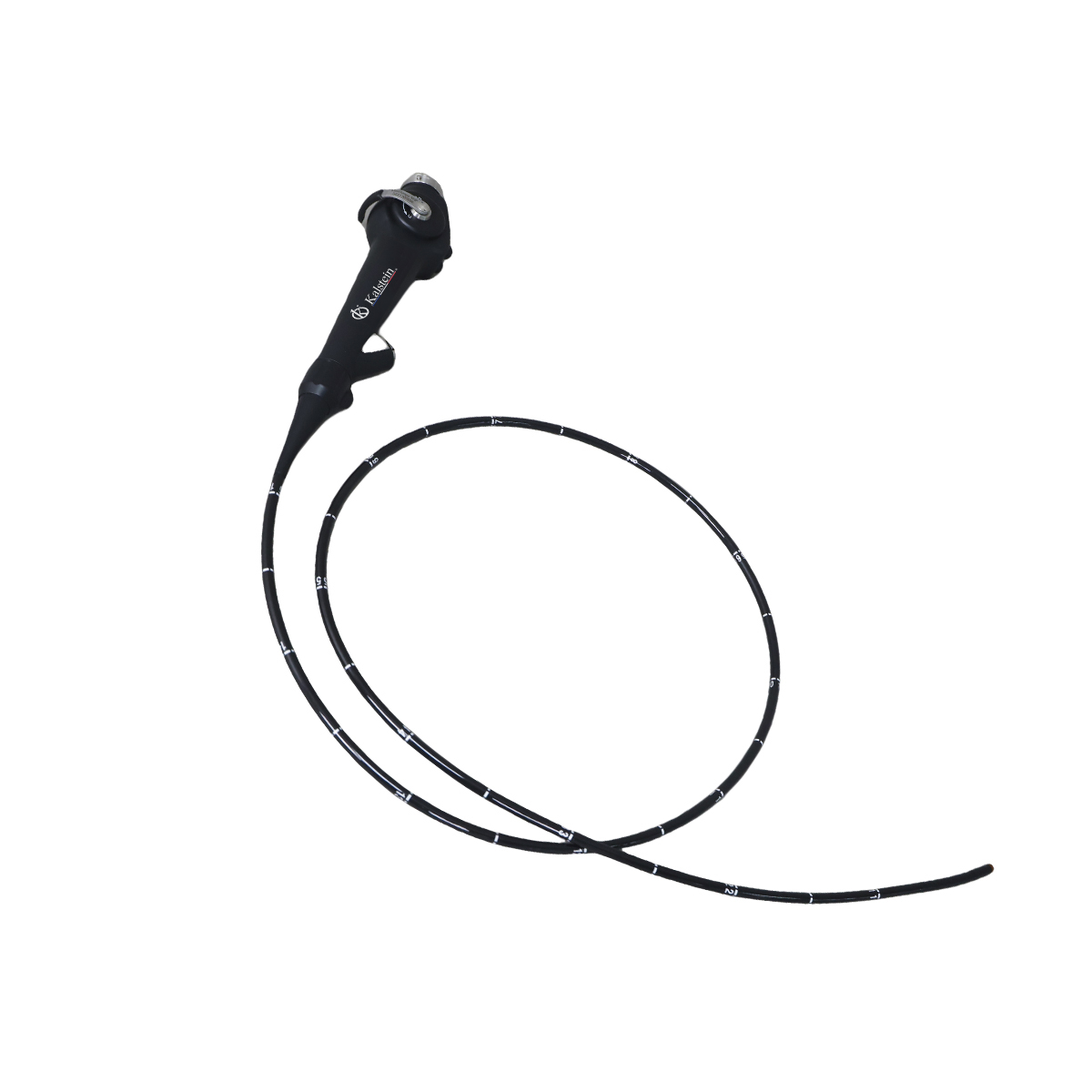

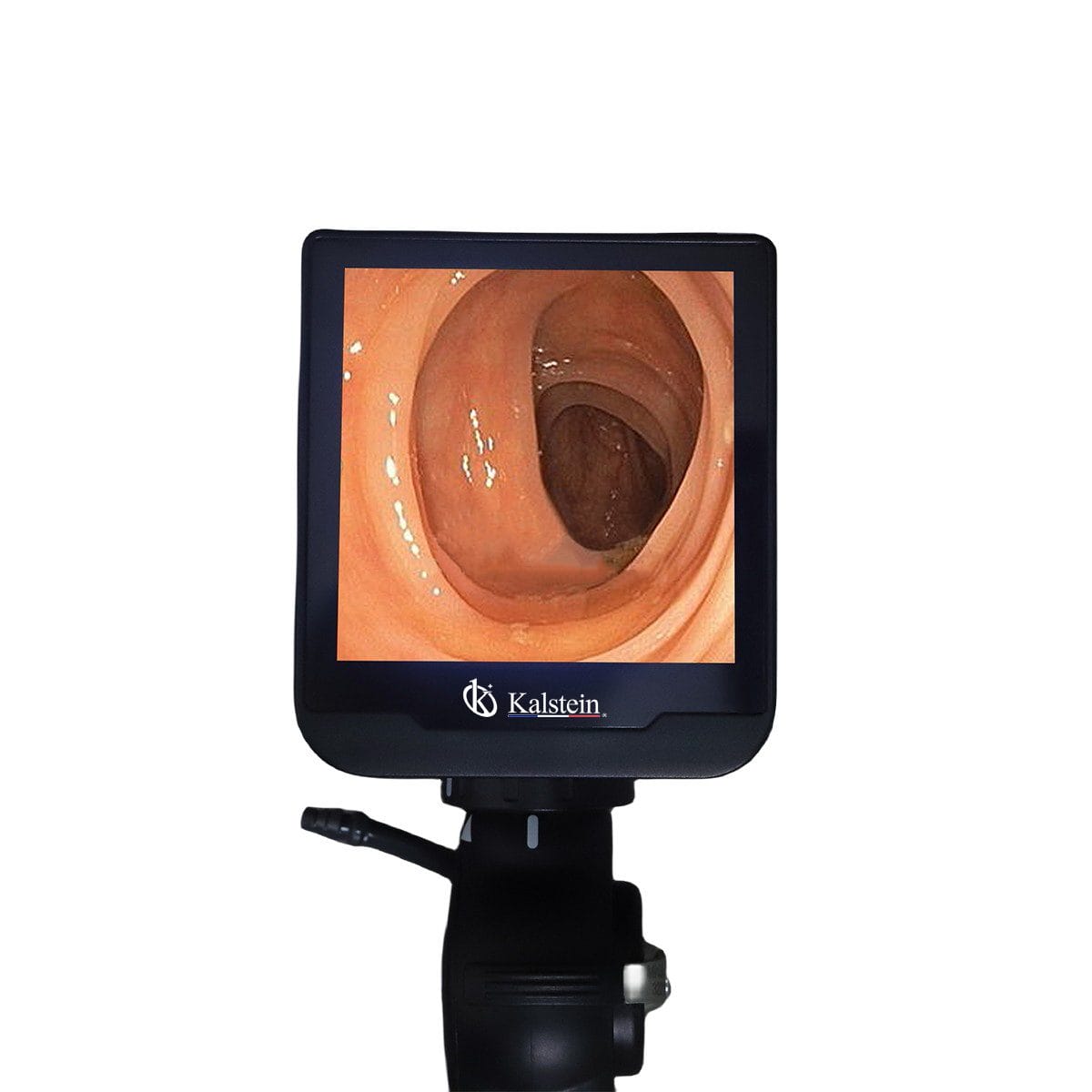

Portable Veterinary Video Endoscope YR06151//YR06155

ManufacturerKalstein

Description

The Portable Veterinary Video Endoscope YR06151/YR06155 is a cutting-edge tool designed to provide veterinarians with clear, real-time imaging to facilitate a range of diagnostic and treatment procedures. Equipped with a high-resolution CMOS sensor, this endoscope delivers crisp and precise images without transfer delays. Its durable LED light source ensures consistent illumination, and the multi-functional handle with photo, video, freeze, and zoom buttons allows for easy one-handed operation. Veterinarians can inspect various angles thanks to its four-direction observations, bending up/down and rotating left/right. With its rotatable video adapter cable, this endoscope offers unparalleled flexibility, making it an indispensable tool for diverse procedures such as bronchoscopy, rhinoscopy, lung depth detection, and urethral or bladder examinations.

Market Price

The Portable Veterinary Video Endoscope YR06151/YR06155 is a sophisticated diagnostic tool available in the market, typically priced between $11,600 and $12,500. This price range reflects its advanced features and capabilities that make it a worthwhile investment for any veterinary practice focused on delivering top-notch care.

Frequently Asked Questions

What types of examinations can this endoscope perform? The endoscope is versatile and suitable for bronchoscopy, rhinoscopy, lung, urethral, and bladder examinations.

How is the image quality of the endoscope? Thanks to its high-resolution CMOS sensor, the endoscope provides clear and precise images with no delay.

Is the endoscope easy to use? Yes, the design features simple operational controls that enable one-handed use, making it extremely user-friendly for veterinarians.

Advantages and Disadvantages

Advantages: The endoscope provides high image quality, is easy to maneuver, and is suitable for a variety of applications, making it extremely versatile. Its lightweight and portable design add to its functionality in diverse environments.

Disadvantages: The cost might be a concern for smaller clinics; however, its extensive features provide significant value to justify the investment.

Use of the Product in the Field

In practical settings, veterinarians can use the Portable Veterinary Video Endoscope YR06151/YR06155 to diagnose respiratory, digestive, and urinary issues efficiently. Its flexible nature allows it to navigate through complex anatomies, providing crucial visual insights for accurate treatment plans. By leveraging its real-time display and high-definition images, veterinary professionals can enhance their diagnostic capabilities directly in the field or within clinical settings.

Recommendations

To ensure the longevity and optimal performance of the Portable Veterinary Video Endoscope YR06151/YR06155, regular maintenance and careful handling are recommended. Clean the equipment after each use and store it in a secure, dry location to prevent any damage. Moreover, integrating this advanced endoscope with digital data systems or software can further enhance diagnostic and clinical documentation processes.

Features

  • High-resolution CMOS sensor for clear, real-time images
  • Durable LED light source
  • Multi-function handle with photo, video, freeze, and zoom buttons
  • Four-directional observation with bending and rotating capabilities
  • Rotatable video adapter cable for flexible operation
  • Suitable for a range of veterinary applications

Technical Specifications

Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Screen size
YR06151 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06152 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06153 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06154 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06155 5.8 mm 2.8 mm 1500 mm 120° 3-100 mm 180° (U), 130° (D)
120° (R), 120° (L)
4-inch

Additional information

Weight N/A
Model

YR06151, YR06152, YR06153, YR06154, YR05155
