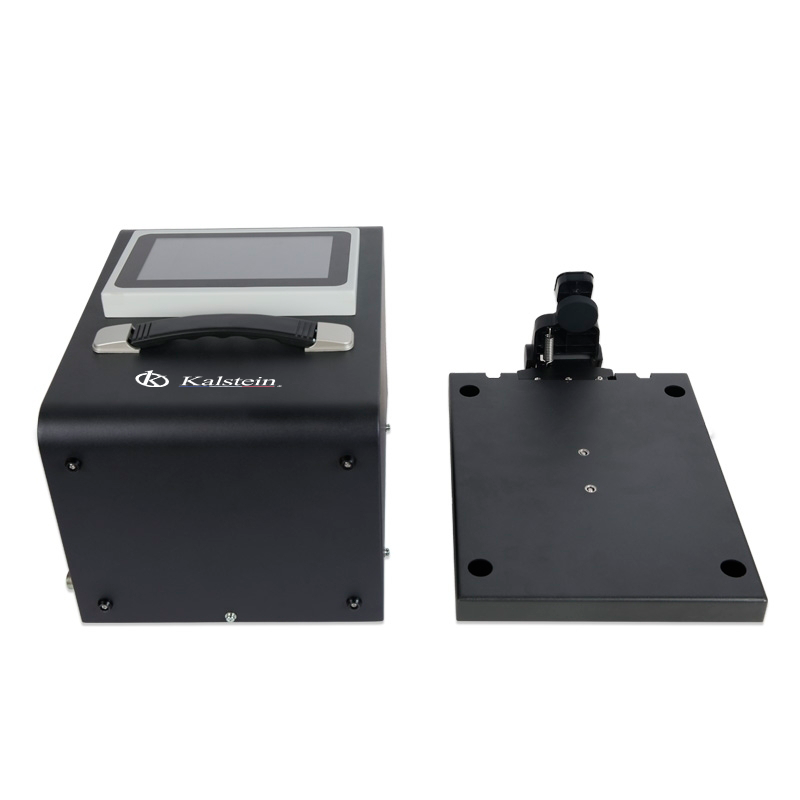

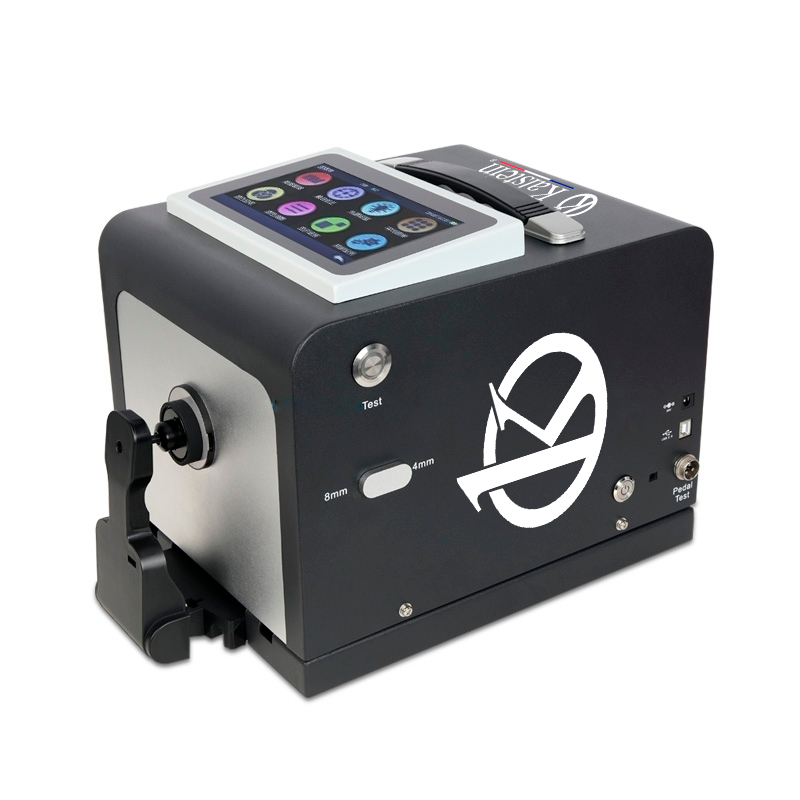

Portable Desktop spectrophotometer YR05484

The Portable Desktop Spectrophotometer YR05484 is a cutting-edge device designed to deliver exceptional precision in color measurement and quality control. Equipped with a 45/0 optical geometry, this spectrophotometer utilizes a dual array CMOS image sensor with 256 pixels and an imported white board for enhanced measurement speed and operational convenience. Notably, it achieves remarkable repeatability with a ΔE*ab control within 0.02 and maintains inter-instrument errors ΔE*ab within 0.15. This makes it an excellent tool for laboratories requiring accurate color analysis and transfer. Moreover, it can accurately assess the brightness factor and color coordinates for traffic signs, markings, and reflective films, meeting GB 2893 and GB/T 18833 standard colors with customizable rectangular tolerances.

Market Price

The Portable Desktop Spectrophotometer YR05484 falls within the competitive price range for advanced spectrophotometers. Typically, the average market price for such a high-precision instrument spans from USD 10,000 to USD 11,300. This reflects its sophisticated technology and versatile application across various industries.

Frequently Asked Questions

What is the YR05484 spectrophotometer used for? The YR05484 is ideal for precise color measurement and quality control in industries such as plastics, electronics, textiles, paints, and inks. It also measures brightness and chromaticity for traffic signs and markings. Does it support fluorescence sample measurement? Yes, the YR05484 is capable of measuring fluorescence samples. How can I purchase or get a quote for the YR05484? You can easily request a quote or generate one automatically through the Kalstein Plus platform.

Advantages and Disadvantages

Advantages: The YR05484 spectrophotometer boasts a high level of accuracy, fast measurement times, and a user-friendly interface, thanks to its industrial-grade HD touchscreen. It supports various color spaces and illuminants, making it adaptable to different measurement needs. Disadvantages: The initial investment cost may be considered high for small businesses. Additionally, users need to have a basic understanding of spectrophotometric principles for optimal usage.

Usage in the Field

In practical settings, the YR05484 is employed extensively in laboratories and manufacturing environments. It is used to ensure color consistency and quality in production lines, particularly during the sorting and quality assessment of materials like textiles, plastics, and ceramics. Its portability allows for on-site assessments, making it a vital tool for quality assurance teams.

Recommendations

To ensure the longevity and reliability of the YR05484, it is recommended to regularly calibrate the device and follow the maintenance protocols outlined in the user manual. Users should also undergo proper training to maximize the potential of its advanced features and software capabilities.

Features

• 45/0 optical geometry with high precision
• 256 pixels dual array CMOS image sensor
• Multiple color spaces and illuminants
• Repeats measurements with ΔE*ab within 0.02
• Easy-to-use industrial-grade HD touchscreen interface
• Supports fluorescence sample measurement
• Complies with international color standards

Technical Specifications

Model	YR05484
Optical Geometry	45/0 (45 ring-shaped illumination, 0 degree viewing angle)
	Comply to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Characteristic	Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture, used in laboratory accurate analysis and transmission;
	Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement.
	It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size	Φ40mm
Light Source	Combined full spectrum LED light source, UV light source
Spectrophotometric Mode	Flat Grating
Sensors	Silicon photodiode array (double row 40 groups)
Wavelength Range	400~700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0~200%
Measuring Aperture	Customized single aperture, LAV:Φ18mm/Φ20mm; MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm
Specular Component	45/0
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 Munsell(C/2)
Color Difference Formula	ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313, CIE/ISO, AATCC, Hunter),
	YI(ASTM D1925, ASTM 313),
	Metamerism Index MI,
	Staining Fastness, Color Fastness, Color Strength, Opacity
	8° Glossiness, 555 tone classification
Observer Angle	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time	About 1.8s
Repeatability	Chromaticity value: MAV/SCI, within ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2-99times)
Locating Method	/
Dimension	L*W*H=370X240X260mm
Weight	About 7.8kg
Battery	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB, Bluetooth ®5.0, trigger switch interface
Data Storage	Standard 1000 Pcs, Sample 30000 Pcs
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)

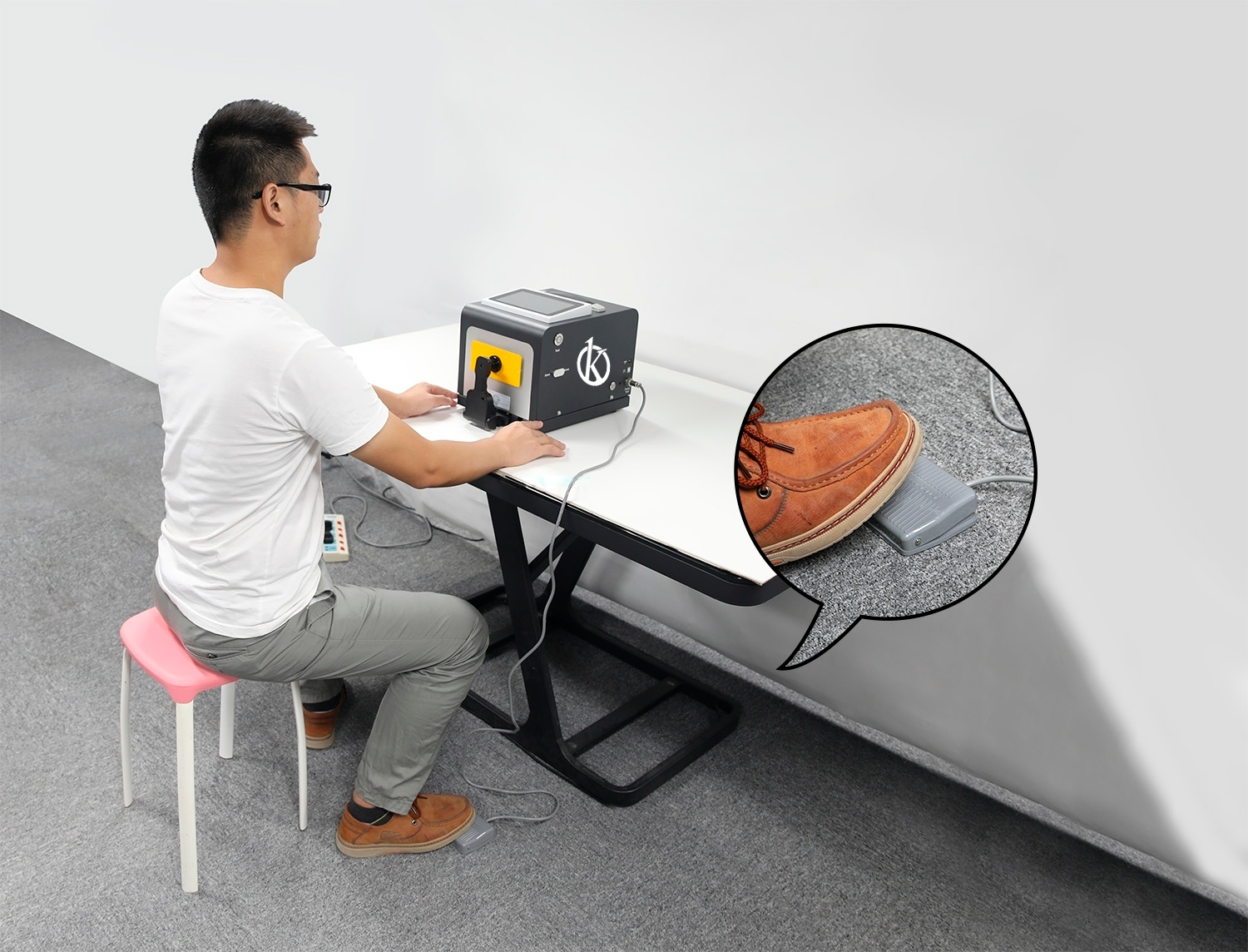

Optional Accessory	Micro Printer, Foot Switch, Rotating Bracket
Notes	Technical parameters are only for reference, subject to the actual sale of the product
