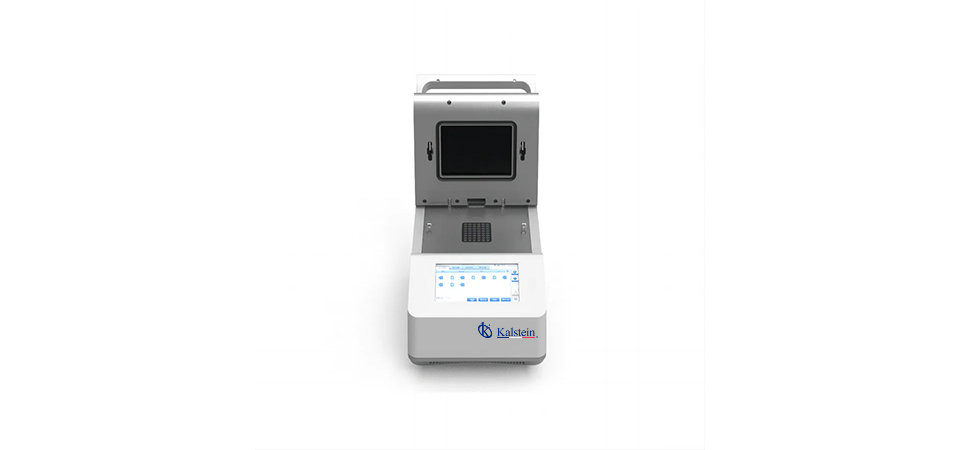

Real-time PCR System YR01868
Real-time PCR System YR01868 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Real-time PCR System YR01868 is a cutting-edge technology designed for efficiency and accuracy in molecular biology labs of small to medium size. Equipped with innovative optical technologies and robust software, this system boasts the capability of processing 48 samples in merely one run, optimizing both time and resource management. Its portability and advanced features make it ideal for mobile labs and onsite testing, combining performance with flexibility for precise experimental outcomes.
Market Price
Real-time PCR systems like the YR01868 typically fall within a price range of $15,500 to $16,500, reflecting the complexities and technological advancements packed into these sophisticated devices. While the initial investment might appear substantial, the YR01868 offers features and reliability that ensure a return on investment through enhanced productivity and accuracy in results.
Frequently Asked Questions
What is the throughput of the YR01868 PCR system?
The YR01868 can handle up to 48 samples simultaneously.
How many fluorescence channels does this system have?
The system is equipped with four distinct fluorescence channels.
Does the system have a backup feature in case of power failure?
Yes, it includes a power failure protection design that allows for automatic recovery of experiments.
Pros and Cons
Pros:
1. Quick fluorescence scanning in just 2 seconds for 48 samples.
2. Portable and lightweight for enhanced mobility.
3. High accuracy with temperature control to 0.1℃.
4. Integrated powerful analysis software.
Cons:
1. Higher upfront cost compared to basic PCR models.
2. Requires a learning curve to master the software and dual configuration usage.
Field Use
The Real-time PCR System YR01868 is particularly beneficial in environments requiring swift yet accurate testing. Its rapid handling of 48 samples and integration of sophisticated analysis software are invaluable in on-site testing scenarios. Laboratories focused on genomics, research, diagnostics, or any setting where precise quantification is essential can greatly benefit from this system.
Recommendations
To maximize the efficiency and longevity of the YR01868, it is recommended to conduct regular maintenance checks and calibrations. Users should become familiar with both independent and PC-controlled configurations to harness the full power of the system. For optimal performance, using good quality, compatible consumables is crucial.
Features
- 48-well sample capacity.
- Dual configuration with independent and PC control.
- Automatic recovery after power interruptions.
- Advanced software for multiple analysis functionalities.
- High brightness, maintenance-free LED light source.
Technical Specifications
| Model | YR01868 |
| Throughput | ene-48 |
| Fluorescence Channels | 2 |
| Fluorescence Scanning Time | 2s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
| Channel 2: HEX, VIC, TET, JOE | |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source |
| Detector | Photodiodes (PDs) |
| Excitation Range | CH1: 470nm CH2:523nm CH3:570nm CH4:638nm |
| Detection Range | CH1:525nm CH2:564nm CH3:610nm CH4:685nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | ≥8.0 ℃/s ℃ |
| Cooling Rate | ≥6.2 ℃/s |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 8 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
| Repeatability: cycle threshold (Ct) value CV≤0 0.5% | |
| Software Functions | |
| Control Modes | Model1: 7 inch touch screen |
| Mode 2: PC direct control | |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis, SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,S0-60HZ; 600VA |
| Weight | 11 Kg (net) |
| Instrument Dimension | 260*400*260mm (W*L*H) |
| Suitable Consumables | 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc. |
Technical specifications
| Weight | 14 kg |
|---|---|
| Manufacturer | Kalstein |
Image gallery
Frequently asked questions
How to know the prices of Real-time PCR System YR01868?
To know the price of Real-time PCR System YR01868, please send us an email with your request through the contact form AQUI.
What are the delivery times for Real-time PCR System YR01868?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Real-time PCR System YR01868?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Real-time PCR System YR01868?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Real-time PCR System YR01868?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
