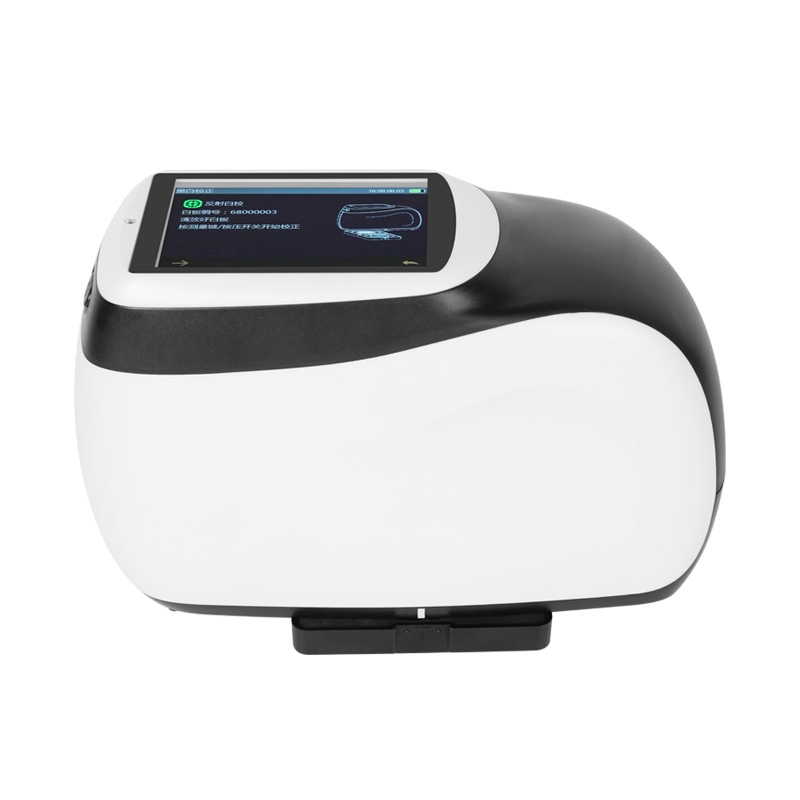

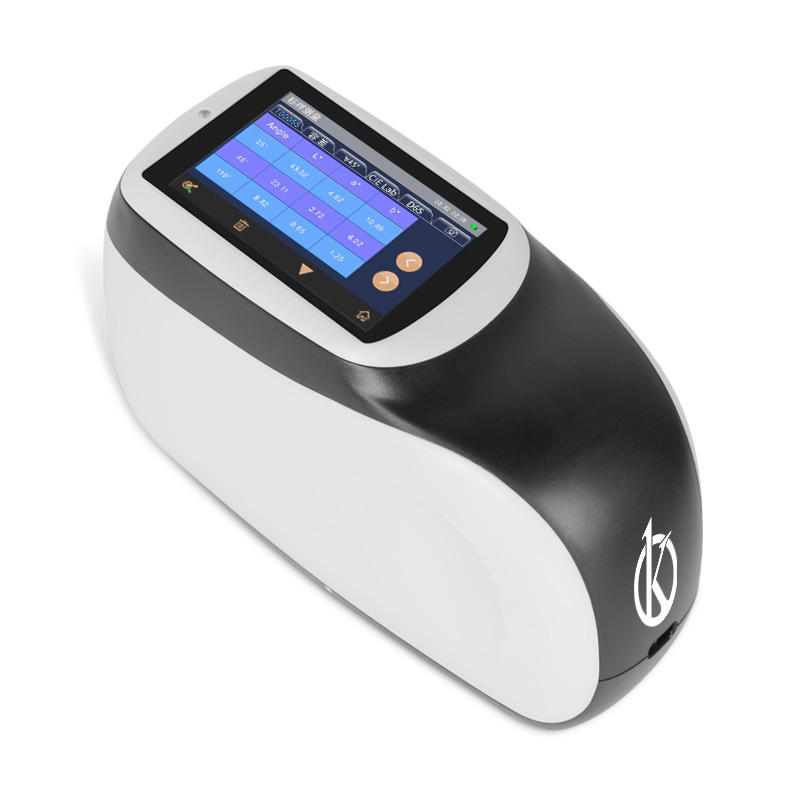

Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492

Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492 is a cutting-edge tool designed for industry professionals seeking precise color measurements. Equipped with advanced technology, this spectrophotometer ensures high accuracy and stability even on curved surfaces, making it ideal for analyzing metallic and pearlescent finishes. With up to 12 measurement angles and a comprehensive color space integration, this device provides consistent results for complex coatings and special effect applications, underpinning its status as a leader in its field.

Market Price

For those looking to invest in high-quality spectrophotometric technology, the market price for the Multi-Angle Spectrophotometer typically ranges from approximately $29,500 to $30,500 USD. This price reflects the device's advanced capabilities and technological specifications, making it a valuable tool for professionals in the paint, automotive, and manufacturing industries.

Frequently Asked Questions

What industries benefit from using a multi-angle spectrophotometer? The automotive, paint, and coatings industries frequently use this device for ensuring color consistency across products. How often does the device require calibration? The spectrophotometer includes both internal and external calibration, recommended at intervals of 4, 8, or 24 hours, as well as upon startup.

Advantages and Disadvantages

The Multi-Angle Spectrophotometer offers several advantages, such as high precision, versatility with up to 12 angles, and compatibility with various standards (ASTM, DIN, ISO). However, the complexity of setup and operation could require initial training for unaccustomed users. Additionally, it is a considerable investment, reflected in its price range.

Product Use in the Field

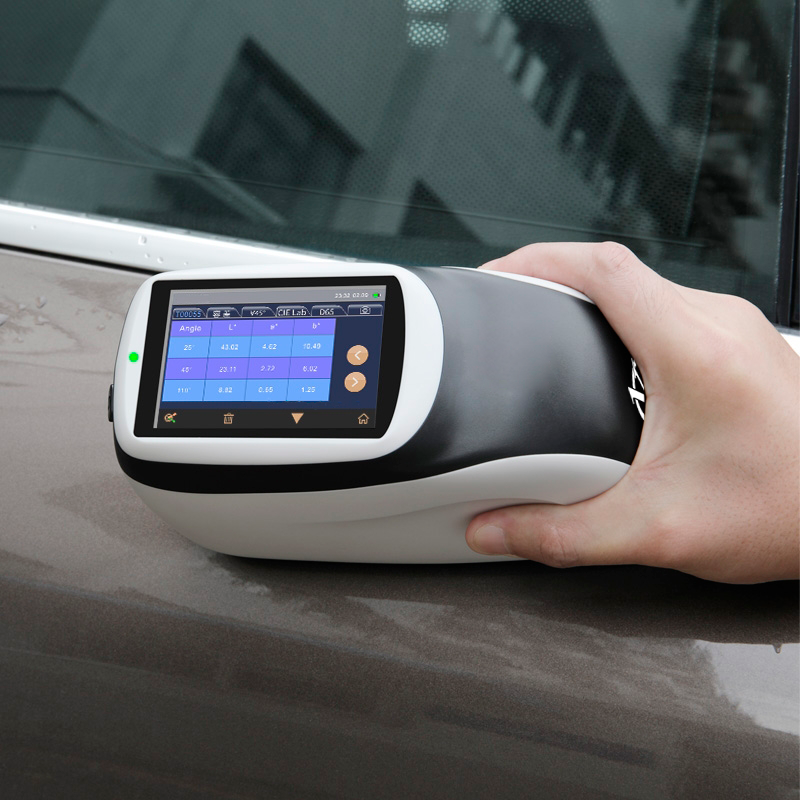

In practical applications, this spectrophotometer excels in providing consistent color measurement under varied lighting conditions, which is critical for quality control in production lines. The ability to accurately measure color on metallic and pearlescent surfaces makes it indispensable for achieving uniformity in high-end automotive finishes and specialty paints.

Recommendations

To ensure optimal performance and longevity, regular calibration of the spectrophotometer is advised. Users should maintain the device in environments with temperature conditions ranging from 10℃ to 50℃, and humidity should not exceed 85%. Additionally, utilizing the data storage and connectivity features, such as USB and Bluetooth 5.0, can enhance workflow efficiency and facilitate data sharing.

Features

• Multi-angle measurement with 8 or 12 measurement angles
• 256 Image Element Double Array CMOS Image Sensor for enhanced stability
• Full spectrum LED light source with blue enhancement
• Comprehensive color space compatibility (CIE LAB, XYZ, etc.)
• Touchscreen display for intuitive operation and data visualization

Technical Specifications

Model	YR05491	YR05492
Measurement Geometry	8 measurement angles (6 illumination sources, 2 receivers)	12 measurement angles (7 illumination sources, 2 receivers)
Measure Angle	45° Receiver：	45° Receiver：
	45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°	45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°
	15°Receiver：	15°Receiver：
	15as-45°,15as-15°	15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°
	Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4	Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4
	SAE J 1545	SAE J 1545
Application	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source	Full spectrum LED light source with blue enhancement	Full spectrum LED light source with blue enhancement
Lamp Life	5 years, 3 million times measurements	5 years, 3 million times measurements
Spectrophotometric Mode	Concave Grating	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400nm-700nm	400nm-700nm
Wavelength Interval	10nm	10nm
Measurement Range	0~600%	0~600%
Semiband Width	10nm	10nm
Measuring Aperture	Φ12mm	Φ12mm
Color Space	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula	ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175	ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index	Flop Index, Int-Em	Flop Index, Int-Em
Observer Angle	2°/10°	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time	Approx. 1 second for one angle	Approx. 1 second for one angle
	Approx. 8 seconds for all angles	Approx. 12 seconds for all angles
Repeatability	Spectral reflectance:  Standard deviation within 0.08%	Spectral reflectance:  Standard deviation within 0.08%
	Chromaticity value:  ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)	Chromaticity value:  ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility	ΔE*<0.10,avg on the gray tile of BCRA tile set	ΔE*<0.10,avg on the gray tile of BCRA tile set
	ΔE*<0.25,avg on the color BCRA tile set	ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error	0.18ΔE*00(avg on reference Series II BCRA tile set)	0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters	Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)	Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement	6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°	6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
	15d Diffuse coarseness(DC)	15d Diffuse coarseness(DC)
Effect Repeatability	Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)	Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
	Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)	Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility	Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)	Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
	(avg on reference Series II BCRA tile set)	(avg on reference Series II BCRA tile set)
	Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)	Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode	Pressure sensing trigger, button trigger, software trigger	Pressure sensing trigger, button trigger, software trigger
Measuring Mode	Single measurement, average measurement (1-99), continuous measurement (1-99)	Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode	Color camera preview	Color camera preview
Dimension	L*W*H=195X83X128mm	L*W*H=195X83X128mm
Weight	About 1Kg	About 1Kg
Power	lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge	lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display	3.5-inch TFT color LCD, Capacitive Touch Screen	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 5.0	USB, Bluetooth 5.0
Data Storage	1000 pcs Standards,4000 pcs Samples	1000 pcs Standards,4000 pcs Samples
Language	Simplified Chinese, Traditional Chinese, English	Simplified Chinese, Traditional Chinese, English
Operating Environment	10℃ to 50℃, humidity does not exceed 85%, no condensation	10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment	-20℃ to 50℃, humidity does not exceed 85%, no condensation	-20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration	Built-in white board parameters, external white board, black light trap, color board	Built-in white board parameters, external white board, black light trap, color board
Calibration Interval	4 hours,8 hours,24 hours,Startup calibration	4 hours,8 hours,24 hours,Startup calibration

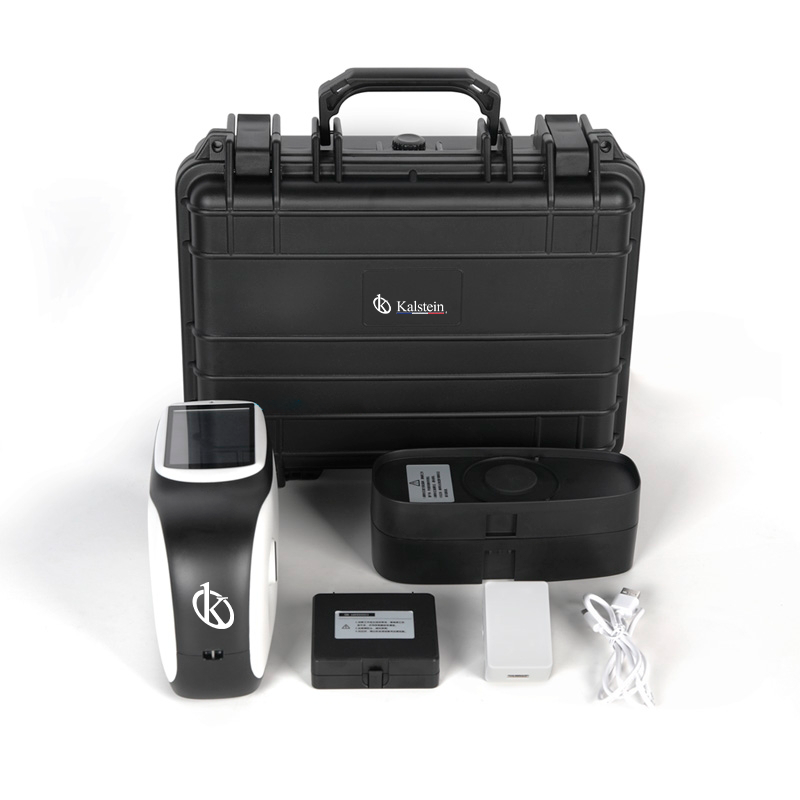

Standard accessories	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory	Micro-printer	Micro-printer
Notes	Technical parameters are for reference only, subject to actual sales products.	Technical parameters are for reference only, subject to actual sales products.
