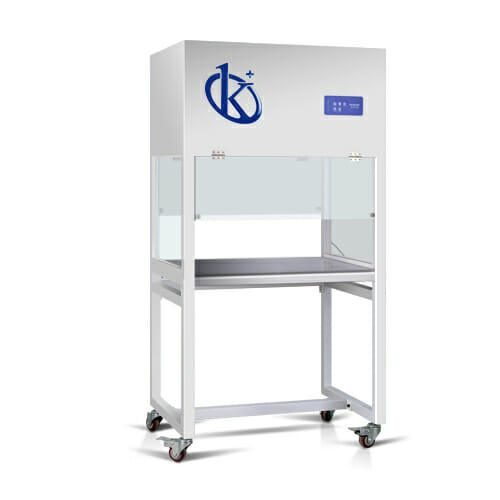

Laminar flow cabinet (Single person) YR05268 // YR05269

The Laminar Flow Cabinet (Single Person) YR05268/YR05269 is expertly designed to offer a controlled, clean environment for sensitive tasks in biotechnology, pharmaceuticals, life sciences, and precision electronics. Featuring CLEANFLOW™ clean air technology, this cabinet provides a work environment with excellent airflow stability and purification. Ergonomically crafted, it ensures user comfort and safety through features such as UV protection, adjustable wind speed, and a silent, low-vibration operation. With its solid construction and modern manufacturing processes, this cabinet is both durable and reliable, supported by CE certification and a two-year warranty.

Market Price

For those seeking reliable laminar flow cabinets, market prices generally range between 1800 USD and 2600 USD. These cabinets pack advanced features and ensure that your laboratory or workplace benefits from top-tier cleanliness and efficiency. Please contact us to get a personalized quote.

Frequently Asked Questions

• What is the maximum wind speed of the cabinet? The wind speed is adjustable and ranges from 0.3 to 0.6 m/s.
• Does this product come with a warranty? Yes, it comes with a two-year warranty.
• Can the cabinet be used in a humid environment? The recommended environment is a temperature of 10–30 °C and a humidity below 70%.

Advantages and Disadvantages

Advantages:

• High-efficiency filtration ensures 99.99% retention of particles.
• User-friendly with adjustable features and safety interlocks.
• Ergonomic design reduces operator fatigue.

Disadvantages:

• Might require regular maintenance for optimal performance.
• The initial setup requires careful handling to ensure proper function.

Product Use in the Field

The cabinet is essential for labs where maintaining a sterile environment is crucial. Operators can conduct their experiments without the risk of contamination or disturbances from external air influences. Its design allows for seamless operation in fields such as microbiology, cell culture, and pharmaceuticals.

Recommendations

To ensure your Laminar Flow Cabinet functions optimally, regularly inspect the filters and clean them as needed. Remember to follow the maintenance guidelines to extend the life of your equipment. For bespoke requirements, consider integrating additional accessories that meet your specific laboratory demands.

Features

• Integrated LCD displaying real-time status updates.
• UV protective interlock functions.
• Wind speed adjustment accommodating user needs.
• Energy-efficient centrifugal motor.
• Easy transport with adjustable tripod.

Technical Specifications

Model	YR05268 / YR05269
Cleanliness rating	The international ISO 14644.1 standard, CLASS 5 (U.S. Federal 209E, 100 level)
Wind Speed	0.3~0.6m/s(Adjustable)
Noise (dB)	≤62
Vibration half peak	≤3μm（X、Y、Z direction）
High efficiency filter	Efficiency 99.99%
Illumination（LX）	≥300
Work environment	Ambient temperature 10~30℃, Relative humidity
	below 70%, No obvious vibration and dust around
Overall size(mm） （H×W×D）	1585×990×735
Inner size（mm） （H×W×D）	500×830×680
Voltage(V)/	AC220V/50Hz
Power（W）	440
Net weight (KG)	110
Shipping weight(KG)	130
Packing size（mm） （H×W×D）	1030×1180×855
