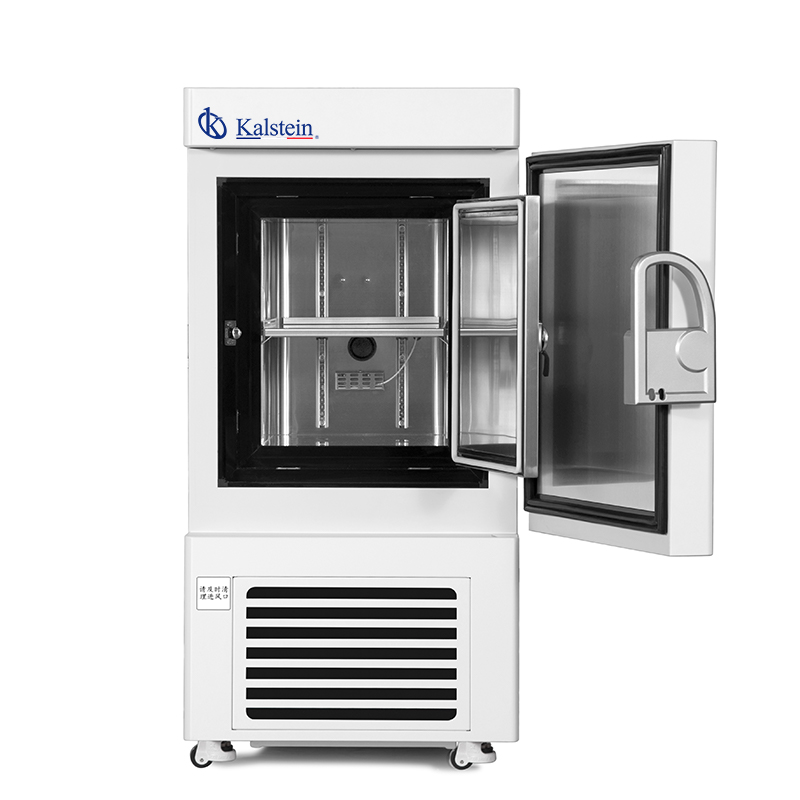

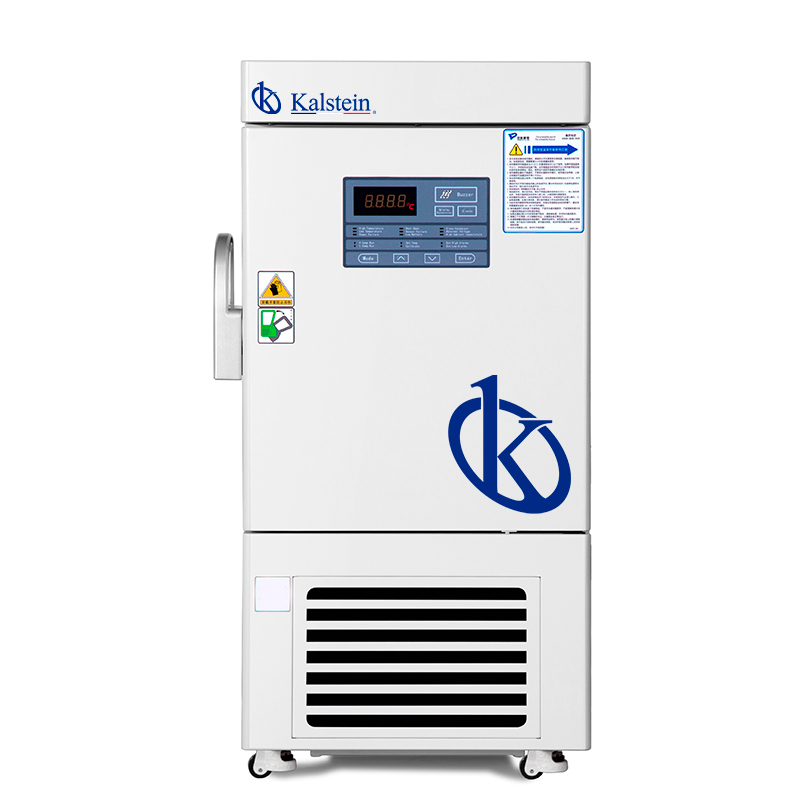

Medium Capacity Ultra Low Temperature Freezer YR05106
Medium Capacity Ultra Low Temperature Freezer YR05106 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Medium Capacity Ultra Low Temperature Freezer YR05106 is an exceptional solution for laboratories and clinical environments requiring precise temperature management. With a capacity of 58 liters, this -86°C freezer ensures optimal storage conditions for sensitive biological samples. It is equipped with advanced microprocessor control, offering a temperature range from -40°C to -86°C, adjustable in 1°C increments. Additionally, its stainless steel shelves allow for flexible storage configurations, making it ideal for various use cases.
Market Price
For those considering an investment in a reliable ultra-low temperature freezer, the market offers a range for such high-performance units typically between $3200 USD and $4000 USD. This price range reflects the advanced technology and reliability that the Medium Capacity Ultra Low Temperature Freezer YR05106 provides.
Frequently Asked Questions
Q: How does the freezer alert you to issues? A: It is equipped with multiple alarm systems, including high and low temperature, power failure, and door ajar alerts.
Q: Can I use this freezer for long-term storage of vaccines? A: Absolutely, the freezer's stable temperature control makes it suitable for storing vaccines and other temperature-sensitive materials.
Advantages and Disadvantages
Among its several advantages, the freezer boasts precise temperature control, robust alarm systems, and adjustable shelving. However, one possible downside is the manual defrost system, which requires periodic maintenance.
Product Use in the Field
In practical scenarios, the Medium Capacity Ultra Low Temperature Freezer YR05106 is indispensable in environments that require precise sample storage such as research laboratories, hospitals, and pharmaceutical facilities. Its compact size and efficient design make it perfect for facilities with limited space but demanding storage requirements.
Recommendations
To ensure optimal performance and longevity of the freezer, regular checks of the condenser and filters are recommended. Using a temperature recorder can also help ensure that your samples remain within the desired temperature range.
Features
- Microprocessor-controlled temperature range of -40°C to -86°C
- 58L storage capacity
- Adjustable stainless steel shelving
- Multiple alarm systems for safety and reliability
- Optional CO2 or LN2 backup systems
Technical Specifications
| Model | YR05106 | |
| Specifications | Shelf/drawer QTY | Stainless steel shelf/1 |
| Cooling | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | Mixed-gas | |
| Power Consumption(kWh/24h) | 5.6 | |
| Noise(db) | / | |
| Ambient temperature(℃) | 10~32℃ | |
| Temperature range(℃) | -40~-86℃ | |
| Cooling system | Compressor brand/QTY | SECOP/1 |
| Sensor | PTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 442W | |
| Current(A) | 2.67A | |
| Material | Inside material | Stainless steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 58L |
| NT./GT.(kg) | 115/155 | |
| Exterior size(W*D*H)(mm) | 635*757*1212 | |
| Interior size(W*D*H)(mm) | 330*453*410 | |
| Package size(W*D*H)(mm) | 730*845*1400 | |
| CBM | 0.87 | |
| 20GP/40GP/40HQ | 21/43/43 | |
| Frozen Racks | Racks | 2(6X2) |
| Boxes (2 Inches) | 24 | |
| Samples(2ml) | 2400 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Abnormal voltage | Y | |
| Sensor error | Y | |
| Filter screen check | Y | |
| Thermostat failure | Y | |
| Low battery | Y | |
| Condenser clean | Y | |
| High ambient temperature | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 72h | |
| Accessories | Castor | Y |
| Inside door | 1 | |
| Test hole QTY/diameter | 1/25MM | |
| USB port | Y | |
| Chart recorder | / | |
| Data logger | Optional | |
| Remote alarm port | Y | |
| Optional | CO2 back up system | Optional |
| LN2 back up system | Optional | |
| Other | Certification | ISO.CE |
Technical specifications
| Weight | 155 kg |
|---|---|
| Manufacturer | Kalstein |
