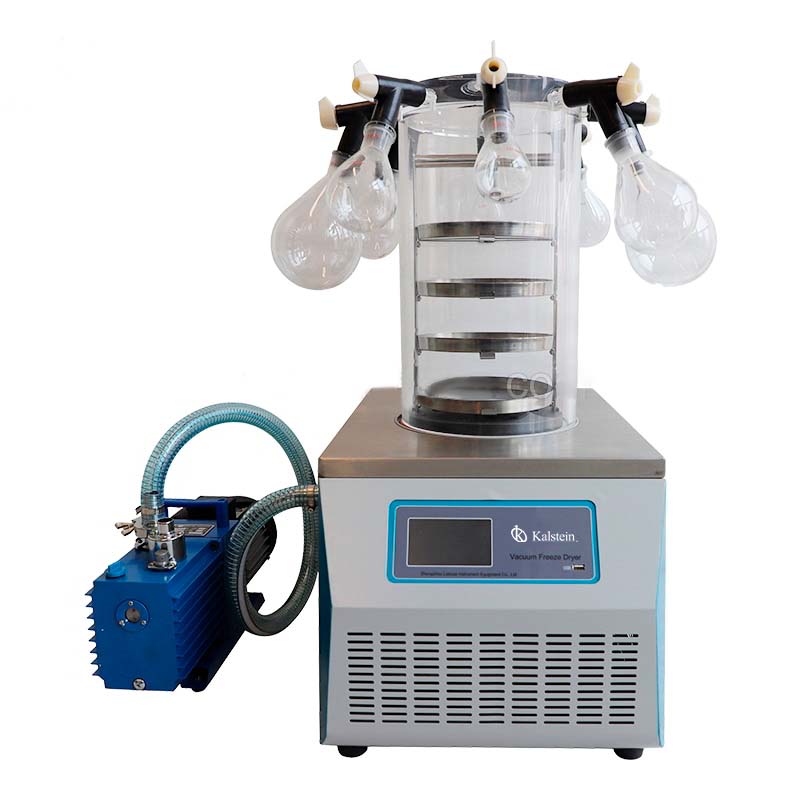

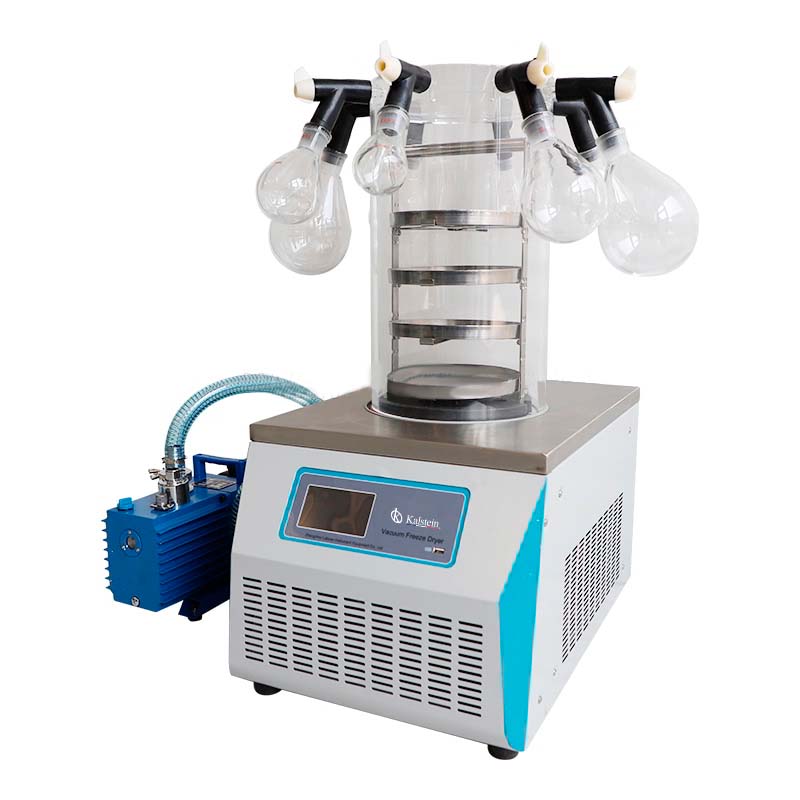

Benchtop Manifold Lab Freeze Dryer YR05188

The Benchtop Manifold Lab Freeze Dryer YR05188 is a versatile and essential piece of equipment for any laboratory engaged in freeze-drying experiments. Its compact bench-top design makes it perfect for laboratories with limited space, while still offering a large range of functionalities. This product excels in various fields such as medicine, pharmacy, biology research, chemical industry, and food production. Utilizing advanced vacuum freezing technology, also known as sublimation drying, it ensures that samples are preserved long-term without losing their chemical and biological integrity after rehydration.

Market Pricing

Freeze dryers like the YR05188 are typically priced in a range reflecting their high-end technology and precision. While prices can vary depending on the specific features and capabilities, the typical market range for such a reliable and efficient unit is between $5000 and $6200 USD. This range ensures that you are getting both value and performance, aligning with the needs of professional laboratories.

Frequently Asked Questions

• What is the main use of the Benchtop Manifold Lab Freeze Dryer? This freeze dryer is used for dehydrating samples in a way that maintains their original properties once rehydrated.
• Can the condenser temperature be adjusted? Yes, the condenser can reach down to -55℃ with an optional upgrade to extend it to -80℃.
• Is the device easy to operate? Absolutely, the freeze dryer is designed for ease of use with its user-friendly LCD display and interface.

Advantages and Disadvantages

Among the biggest advantages of the YR05188 are its compact size, efficient performance, and the ability to handle a wide variety of samples due to its customizable tray spacing. Its stainless steel build ensures durability and easy cleaning. On the downside, smaller laboratories might find the initial investment significant, although the long-term benefits often outweigh the cost.

Field Application

The YR05188 is often seen in action in pharmaceutical labs where precise dehydration of sensitive biological products is required. Chemists also utilize it to conduct controlled sublimation processes. In the food industry, it can be used for preserving ingredients and ready-to-consume products with extended shelf-lives.

Recommendations

To maximize the functionality of the YR05188, it is recommended to perform regular maintenance checks, especially on the refrigeration system. Users should also ensure that the vacuum degree is kept under check for optimal performance. For further customization and optimal use, consider integrating the optional features such as nitrogen valves or communication interfaces.

Features

• CFC Free refrigeration
• LCD display drying curves, English interface
• Big opening of condenser, condenser with pre-freezing function
• Low noise compressor, good efficiency, long service life
• Condenser and operation panel are all stainless steel
• Drying Chamber with organic glass is safe and visible
• Shelf and tray are stainless steel, tray spacing can be customized
• Small volume, easy and convenient operation
• Nitrogen valve is optional
• Eutectic point test device is optional
• Communication interface is optional
• Cascade refrigeration is optional, applied for -80℃ device

Technical Specifications

Model	YR05188
Freeze drying area	0.12㎡
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optional)
Vacuum degree	< 10 Pa
Material tray	Ф200mm, 4 layers
Bulk capacity	1.2L, 10mm thickness
Vial capacity Φ12mm	920 pcs
Vial capacity Φ16mm	480 pcs
Vial capacity Φ22mm	260 pcs
Manifold	with 8 ports
Flask	1000ml, 500ml, 250ml, 100ml
Cooling	Air，draughty, ambient temperature≤25℃
Voltage	220V, 50 Hz; 110V, 50Hz; 110V, 60Hz
Power	700W
Dimension	460×625×(370+465) mm
Host weight	41 kg
