Description

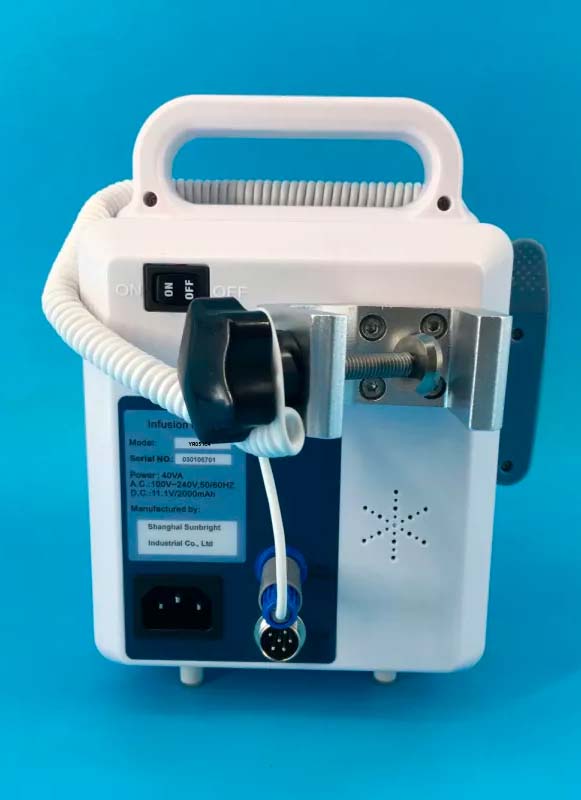

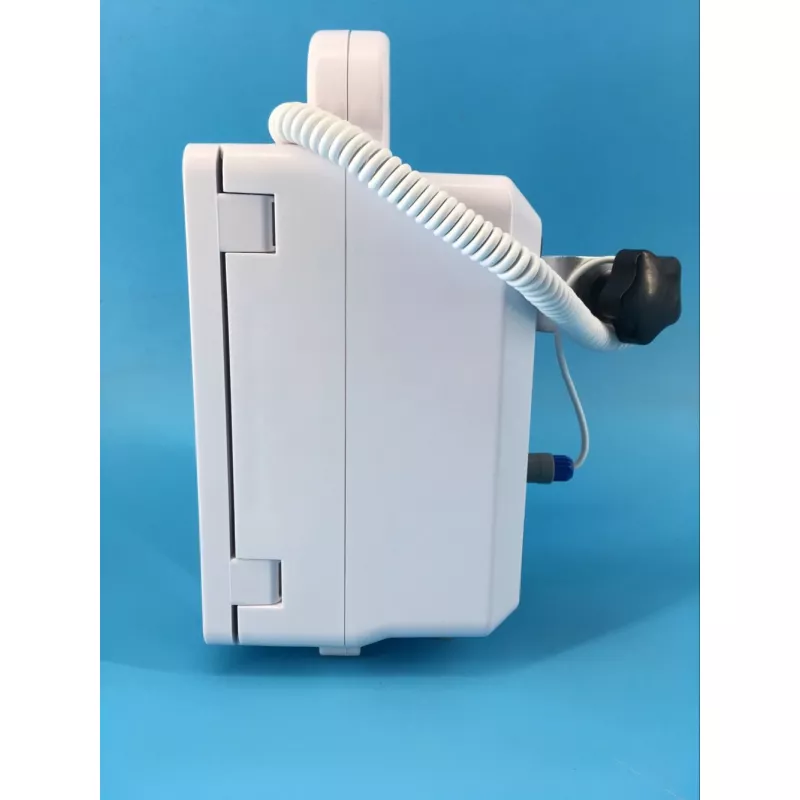

The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164 is an advanced medical device designed to ensure precise and efficient intravenous infusions. Featuring a large, backlit 4.3-inch color LCD screen, it provides clear visibility under various lighting conditions. This infusion pump offers a real-time monitoring system via wireless transmission, allowing healthcare providers to keep track of the infusion status of each pump centrally. With its multiple modes, including rate, volume, and time, along with a range of adjustable settings, it is versatile and reliable for various medical environments. Its user-friendly interface and audible alarms ensure that users are always informed of the pump’s status, enhancing safety and efficiency in patient care.
Market Price
The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164 is competitively priced in the market, usually ranging between $500 and $800. This makes it an attractive option for hospitals and medical facilities looking for quality infusion pumps without exceeding budget constraints. Considering its advanced features and reliability, it offers excellent value for money. To receive a personalized quote, we recommend using Kalstein Plus for an easy and quick pricing experience.
Frequently Asked Questions
Q: Is the infusion pump compatible with all IV sets?
A: Yes, the pump is designed to be compatible with any brand of disposable IV set.
Q: Can the pump operate in low-light conditions?
A: Absolutely. The pump features a backlit LCD screen that ensures visibility in various ambient light conditions.
Advantages and Disadvantages
Advantages: The pump provides precise control over infusion parameters, including adjustable rate and volume. It features an easy-to-read interface and real-time monitoring, enhancing operational efficiency. The optional heating function is perfect for infusions requiring temperature control.
Disadvantages: The pump may require professional setup to ensure optimal functionality and regular maintenance to prevent malfunctions.
Usage in the Field
In real-world medical settings, the infusion suction pump is invaluable for administering fluids and medications accurately. Its intuitive interface and clear display make it easy for medical staff to set and monitor infusion parameters. Depending on the patient’s needs, the pump can adapt to various infusion requirements, whether it’s delivering long-term IV medications in a hospital or managing home healthcare scenarios.
Recommendations
To maintain the optimal function of your infusion pump, it is advisable to routinely check for software updates and calibrate the equipment regularly. It is also recommended to utilize the central monitoring system feature for enhanced oversight of multiple units in use, ensuring patient safety and efficient resource management.
Features
- Large, backlit LCD display suitable for various lighting conditions.
- Compatibility with any brand of disposable IV set.
- Three working modes: rate, volume, time.
- Purge and KVO functions.
- Optional heating function for temperature-sensitive infusions.
- Optional central monitoring system for real-time status updates.
- User-friendly operation with intuitive status feedback.
- Audible and visual alarms for various conditions.
Technical Specifications
| Pump type | Drip Type Infusion Pump | ||
| Pumping Form | Peristaltic fingers | ||
| Adjustable Fall Rate Range | 1 ~ 400 drops / min (step: 1 drop / min) | ||
| Adjustable Volume Rate Range | 1 ~ 1200 ml / h (when 1 ~ 99.9 ml / h, step: 0.1 ml / h; greater than 99.9 ml / h, step: 1 ml / h) | ||
| Flow Accuracy | Within 3% or so (using manufacturer’s designated IV kit or high quality calibrated IV kit) | ||
| Mechanical precision | Within 2% or so | ||
| Purge Rate | 800ml / h | ||
| KVO rate | 1 ml / hour (1 ~ 300 ml / hour) | ||
| 3 ml / h (more than 300 ml / h) | |||
| Infusion Volume Range | 1 ml ~ 9999.9 ml (step: 0.1 ml) | ||
| Maximum Accumulated Volume | 9999.9 ml (step: 0.1 ml) | ||
| Time interval | 1 min ~ 9999 min (step: 1 min) | ||
| Occlusion Alarm Threshold | Height: 800 mmHg + -200 mmHg (106.7 kPa + -26.7 kPa) | ||
| Medium: 500 mmHg + -100 mmHg (66.7 kPa + -13.3 kPa) | |||
| Low: 300 mmHg + -100 mmHg (40.7 kPa + -13.3 kPa) | |||
| Alarm | Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle. | ||
| Air Bubble Detector Method | Ultrasonic wave, sensitivity: greater than or equal | ||
| 25 l | |||
| Fuse | F1AL / 250V (“F” indicates fast, “L” indicates low breaking power), 2 pieces (installed inside the pump). | ||
| Power supply | AC 85 ~ 265V, 50 / 60Hz; | ||
| Internal Battery | 11.1V rechargeable lithium-ion battery. Capacity: greater than or equal to 2000 mAh; | ||
| The pump can run more than 4 hours at a flow rate of 25ml / h after charging for 8 hours (average flow rate specified by GB 9706.27-2005). | |||
| Energy | Less than or equal to 40VA | ||
| Size | 188mm (length) x 198mm (width) x 228mm (height) | ||
| Weight | 2.2 kg | ||
| Environmental requirements | Transport | ||
| Ambient temperature: -30 ° C ~ + 55 ° C | |||
| Relative humidity: 20% ~ 95% (non-condensing) | |||
| Atmospheric pressure: 70kPa ~ 106kPa | |||
| Storage | |||
| Ambient temperature: -30 ° C ~ + 55 ° C | |||
| Relative humidity: 20% ~ 95% | |||
| Atmospheric pressure: 70kPa ~ 106kPa | |||
| Operation | |||
| Ambient temperature: + 5 ~ + 40 ° C | |||
| Relative humidity: 20% ~ 90% | |||
| Atmospheric pressure: 86kPa ~ 106kPas | |||
| Calibration function | Disposable IV set of any brand is suitable for this pump | ||
| Three Working Modes | Rate / volume / time mode | ||
| Alarm | Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle. | ||
