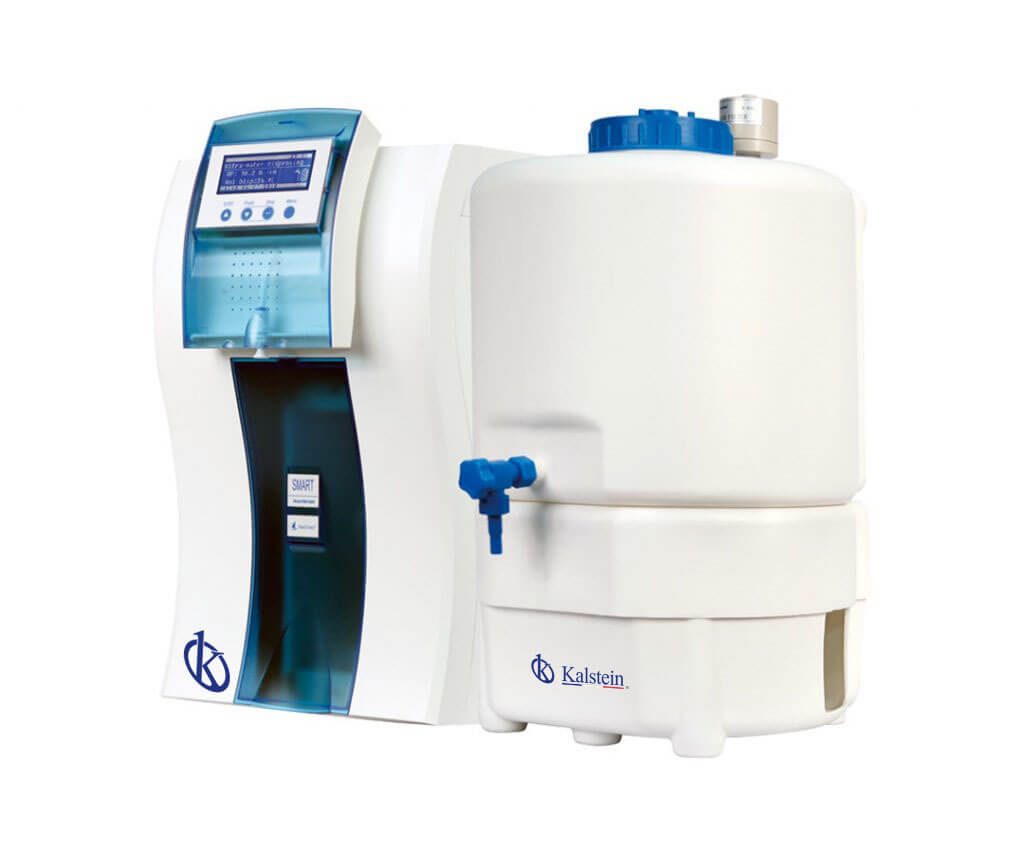

Installation and Commissioning Guide for the YR53-1 Ultrapure Water System
The YR53-1 Ultrapure Water System is designed for high-demand laboratory environments where precision and reliability are crucial. This guide will walk you through the installation and commissioning process, ensuring that your system operates effectively from the very first use.
Unboxing and Initial Setup
Before you begin installation, carefully unbox the YR53-1 and check for all components. Ensure you have the following items:
- YR53-1 main unit
- Set of consumable filters
- 12L pressure tank
- Accessory package
- User manual
Inspect all components for any visible damage. If any parts are missing or damaged, contact customer support before proceeding.
Site Preparation Requirements
Proper site preparation is essential for optimal performance of the YR53-1. Ensure the following conditions are met:
| Requirement | Description |
|---|---|
| Water Supply | Urban tap water, inlet pressure: 0.15-0.5MPa, temperature: 5-40°C |
| Electrical Supply | 220V/50Hz; 48-72W |
| Ventilation | Ensure adequate ventilation to avoid overheating. |
| Clearances | Maintain sufficient clearances around the unit for service access and airflow. |
Anchoring and Leveling the System
Once the site is prepared, place the YR53-1 on a level surface. Leveling is crucial to ensure proper water flow and system operation. Use leveling tools to adjust the feet of the unit until it is perfectly horizontal.
Power-Up Sequence and Initial Calibration
After leveling, connect the power supply. Follow this power-up sequence:
- Ensure all connections are secure.
- Turn on the main power switch.
- Wait for the system to perform self-checks.
- Once the self-check is complete, the LCD display will show the operational status.
For initial calibration, follow the guidelines in the user manual. This will include setting up water quality parameters and testing the system with the TDS pen provided.
First Run and Validation of Measurements
After calibration, initiate the first run by selecting the desired water quality. The YR53-1 can produce both RO and ultrapure water. Monitor the LCD for real-time data on water quality. Validate the first measurements using the TDS pen to ensure that the system meets the specified standards:
- RO water quality: Desalination rate 95-99%
- Ultrapure water quality: Resistivity 18.25MΩ.cm@25°C; TOC <3ppb
Common Installation Mistakes to Avoid
Be aware of typical installation errors to ensure a smooth commissioning of the YR53-1:
- Improper leveling can lead to poor water flow.
- Neglecting to check all connections before power-up.
- Not following the calibration steps can affect water quality.
- Ignoring site preparation requirements such as adequate water pressure and temperature.
Technical Specifications of the YR53-1
| Specification | Details |
|---|---|
| Model | YR53-1 |
| Water Inlet Source | Urban tap water, pressure: 0.15-0.5MPa, temperature: 5-40°C |
| Water Flow Rate | 1.5-2L/min |
| Water Production Rate | 15 L/H |
| Water Quality (RO) | Desalination rate 95-99% |
| Water Quality (Ultrapure) | Resistivity 18.25MΩ.cm@25°C, TOC <3ppb |
| Power Supply | 220V/50Hz; 48-72W |
| Dimensions (mm) | 312 x 475 x 475 |
Frequently Asked Questions
What are the initial setup requirements for the YR53-1?
The initial setup for the YR53-1 includes ensuring proper water supply conditions, electrical power connections, and adequate ventilation. Ensure the system is placed on a level surface for optimal operation.
How do I validate the first measurements from the YR53-1?
To validate the first measurements, initiate the first run of the system and monitor the LCD display for real-time data. Use the TDS pen to check parameters like resistivity and TOC to confirm they meet the specified standards.
What common mistakes should I avoid during installation?
Common mistakes include not leveling the system properly, neglecting to check all connections before turning on the power, skipping calibration steps, and overlooking site preparation requirements such as water pressure and temperature.
Is there a warranty for the YR53-1 Ultrapure Water System?
Yes, the YR53-1 typically comes with a manufacturer’s warranty. It is important to review the warranty terms provided in the user manual for specific coverage details.
Can the YR53-1 be customized with additional features?
Yes, the YR53-1 supports optional modules and upgrades. Users can enhance functionality based on specific laboratory needs, such as adding remote monitoring capabilities.
What should I do if the YR53-1 displays an error code?
If the YR53-1 displays an error code, consult the user manual for troubleshooting steps. Common issues may include water supply problems or maintenance needs.
How can I request a quote for the YR53-1?
You can request a quote through our contact form or by reaching out to our sales team for personalized assistance.
