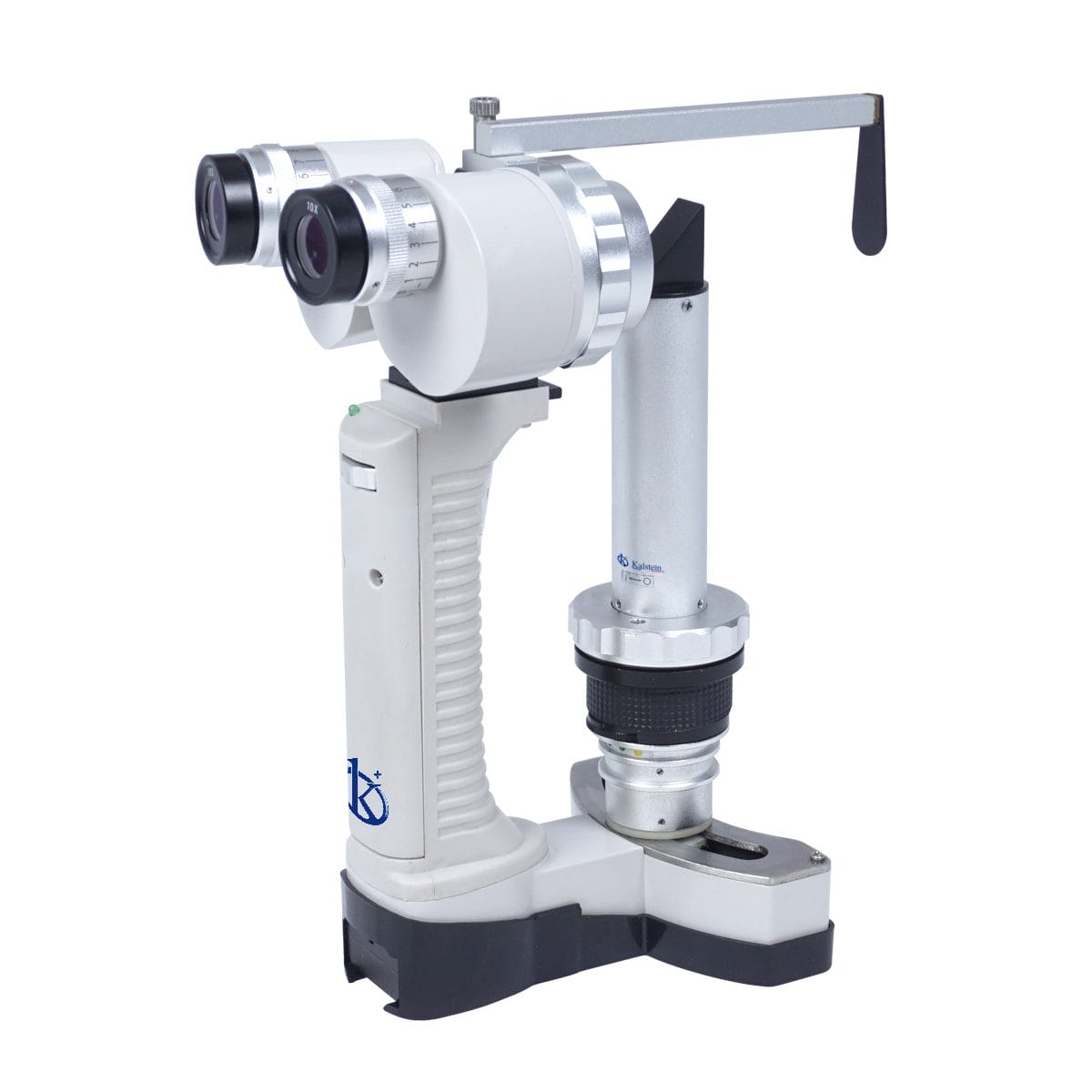

The YR06199 Handheld Veterinary Slit Lamp is an essential diagnostic device in the field of veterinary medicine, specifically for ophthalmology. This tool provides a detailed view of the eye and facilitates the diagnosis of eye conditions in a variety of animal species.
The YR06199 model stands out for its compact and lightweight design, a 7.4V, 680mAh Li-ion battery is included, sufficient to provide 5-6 hours of continuous work. In addition, its weight is less than 700g (including the battery), which makes it especially useful for mobile clinics or field work.
If you want to know the catalog of high-end products in KALSTEIN we have for you visit us https://kalstein.co.il/ we assure you that through our online SHOP channels, you can easily and feasibly find the best market PRICES, reminding them that we are a MANUFACTURING Company of high-level Laboratory Equipment for SALE. https://kalstein.co.il/product/veterinary-handheld-slit-lamp-2-magnification-yr06199/
Detail Vision with a Convergence Microscope
The YR06199 features a convergent type microscope that offers two magnification ranges, 10X and 16X, providing a detailed and versatile view of the animal’s eye. This type of microscope is characterized by its ability to give a great depth of field, facilitating the detailed inspection of the posterior parts of the eye.
The diopter settings are from -8D to +8D, which allows to customize the focus according to each case. In addition, the adjustable intraocular distance of 45mm-78mm makes it a versatile equipment for several animal species.
Superior Illumination for Accurate Diagnosis
The YR06199 slit lamp incorporates a high-brightness white LED illuminating bulb. It provides bright and clear light, making it easy to evaluate eye structures in detail. Also, it has a variety of slit angles and different colored filters that help to observe different eye structures and detect anomalies.
The lamp’s maximum brightness is 30,000 Lux, ensuring sufficient illumination for an accurate diagnosis even in poor ambient lighting conditions.
Advanced Technical Features for a Comprehensive Diagnosis
One of the most critical components in a slit lamp is its ability to adjust the width and height of the light slit. With a range of 0-12 mm, in both width and height, YR06199 provides a gradual and accurate adjustment.
In addition, it has four filters: heat absorption, yellow, no red (Green), and cobalt blue, which can be used to highlight specific features during eye inspection.
Usage Recommendations and Clinical Applications
The YR06199 slit lamp is an essential equipment for any veterinarian dedicated to ophthalmology. Its use is recommended for the diagnosis of eye diseases such as glaucoma, cataracts, corneal ulcers, among others.
Furthermore, thanks to its mobility and autonomy, it is especially useful for field work or mobile clinics. However, due to its delicate internal mechanism, it should be handled with great care and it is advisable to perform a regular review and maintenance to maintain its optimal performance.
| Model Item | YR06199 | |
| Microscope | Microscope Type | Converging |
| Objective Lens | 1.0X、1.6X | |
| Eyepiece | 10X | |
| Total Magnifications | 10X、16X | |
| Working Distance | 81mm | |
| Intraocular Distance | 45mm―78mm | |
| Diopter Adjustment | -8D―+8D | |
| Illumination | Slit Width | 0―12mm Continuous |
| Slit Height | 1-12mm | |
| Slit Angle | ф0.2mm，ф1mm，ф5mm，ф12mm | |
| Filters | Heat Absorption; Yellow; Redfree(Green); Cobalt Blue | |
| Illumination Bulb | High-Brightness White LED | |
| Brightness | ≥30000Lux | |
| Power | LED Working Voltage | d. c. 3 V |
| Battery | Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously | |
| Weight and Dimension | Dimension | 169.5mm×109.5mm×228.5mm |
| Weight | ≤4kg (Including Battery) | |
