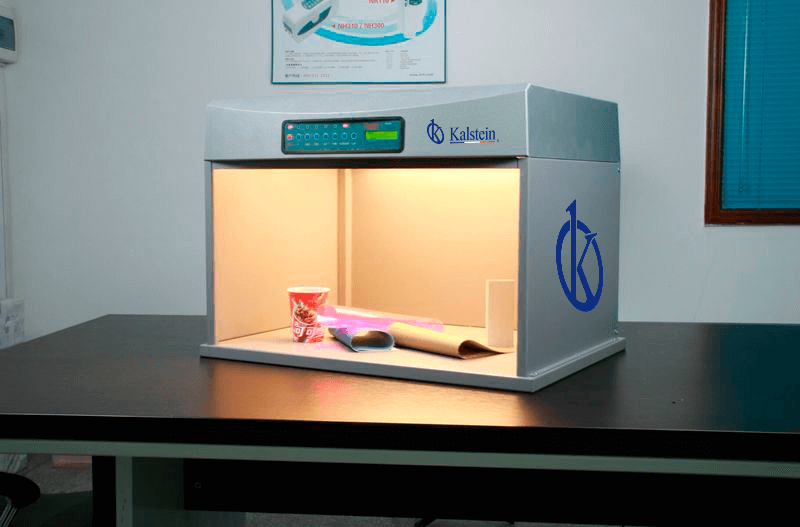

Frequent Errors and Troubleshooting Symptoms for the YR05520 Color Light Box
The YR05520 Color Light Box is a critical tool for various industries requiring precise color evaluation. However, like any sophisticated equipment, it may experience errors or operational issues. Understanding the symptoms and troubleshooting methods related to the YR05520 can drastically improve reliability and efficiency. This article will explore common problems, their causes, and solutions, helping operators maintain optimal performance.
Understanding the YR05520 Color Light Box
The YR05520 model is designed to ensure accurate color representation with six different light sources. This color light box adheres to international standards for visual color evaluation, making it suitable for industries such as textiles, printing, and automotive. Here, we focus on the symptoms of malfunctions that operators may encounter during regular use.
Technical Specifications of the YR05520
| Specification | Details |
|---|---|
| Model | YR05520 |
| Light Sources | D65, TL84, UV, F, CWF, TL83 |
| Dimensions (W x D x H) | 695 x 552 x 502 mm |
| Voltage | 220V/50Hz – 110V/60Hz |
| Weight | 19.5 kg |
| Power Consumption | Varies based on light source |
Troubleshooting Symptoms
Power Failure
If the YR05520 does not power on, several factors could be at play. Check the following:
- Ensure the power cable is securely connected.
- Check the outlet for power by plugging in another device.
- Inspect the fuse for any signs of damage.
To resolve this, replace any faulty components or connect to a different power source.
Inconsistent Color Readings
Inconsistent color outputs can be frustrating. Possible reasons include:
- Misalignment of the light sources.
- Dirty filters or light sources.
- Environmental factors such as ambient light interference.
To address this, clean the light sources and ensure proper alignment according to the user manual.
Error Code E-03
Error codes can indicate various issues. If you encounter E-03, it typically signifies:
- Overheating due to extended use.
- Malfunctioning light source.
Allow the unit to cool down and check each light source for functionality. Replace any defective components.
Symptom-Cause-Solution Matrix
| Symptom | Possible Causes | Solutions |
|---|---|---|
| Power Failure | Loose connections, damaged outlet, blown fuse | Check connections and replace faulty components |
| Inconsistent Color Readings | Dirty filters, misaligned sources, ambient light | Clean filters, realign sources, control ambient light |
| Error Code E-03 | Overheating, light source failure | Cool the unit, check and replace failed sources |
Frequently Asked Questions
How can I improve the accuracy of color readings with the YR05520?
To improve accuracy, ensure the environment is free from external light sources. Regularly clean the light sources and filters, and follow calibration procedures as outlined in the user manual.
What should I do if the YR05520 shows a flickering light?
A flickering light usually indicates a failing light source. Inspect and replace the faulty light bulbs. Check the power supply to ensure stability.
Can I use the YR05520 in different environmental conditions?
Yes, but ensure that you operate the unit within the specified temperature and humidity ranges for optimal performance. Extreme conditions can affect functionality.
What are the recommended maintenance practices for the YR05520?
Regularly clean the internal and external components, check connections, and calibrate the unit periodically. Schedule inspections after extensive use.
Is a warranty available for the YR05520 Color Light Box?
Yes, the YR05520 typically comes with a warranty that covers manufacturing defects. Always check the warranty terms provided at the time of purchase.
How do I replace the light sources in the YR05520?
To replace the light sources, ensure the unit is powered off. Open the access panel, remove the old light sources, and install new ones according to the specifications in the manual.
Where can I find spare parts for the YR05520?
Spare parts can typically be sourced from the original manufacturer or authorized distributors. Always use recommended parts for replacements to maintain quality.
