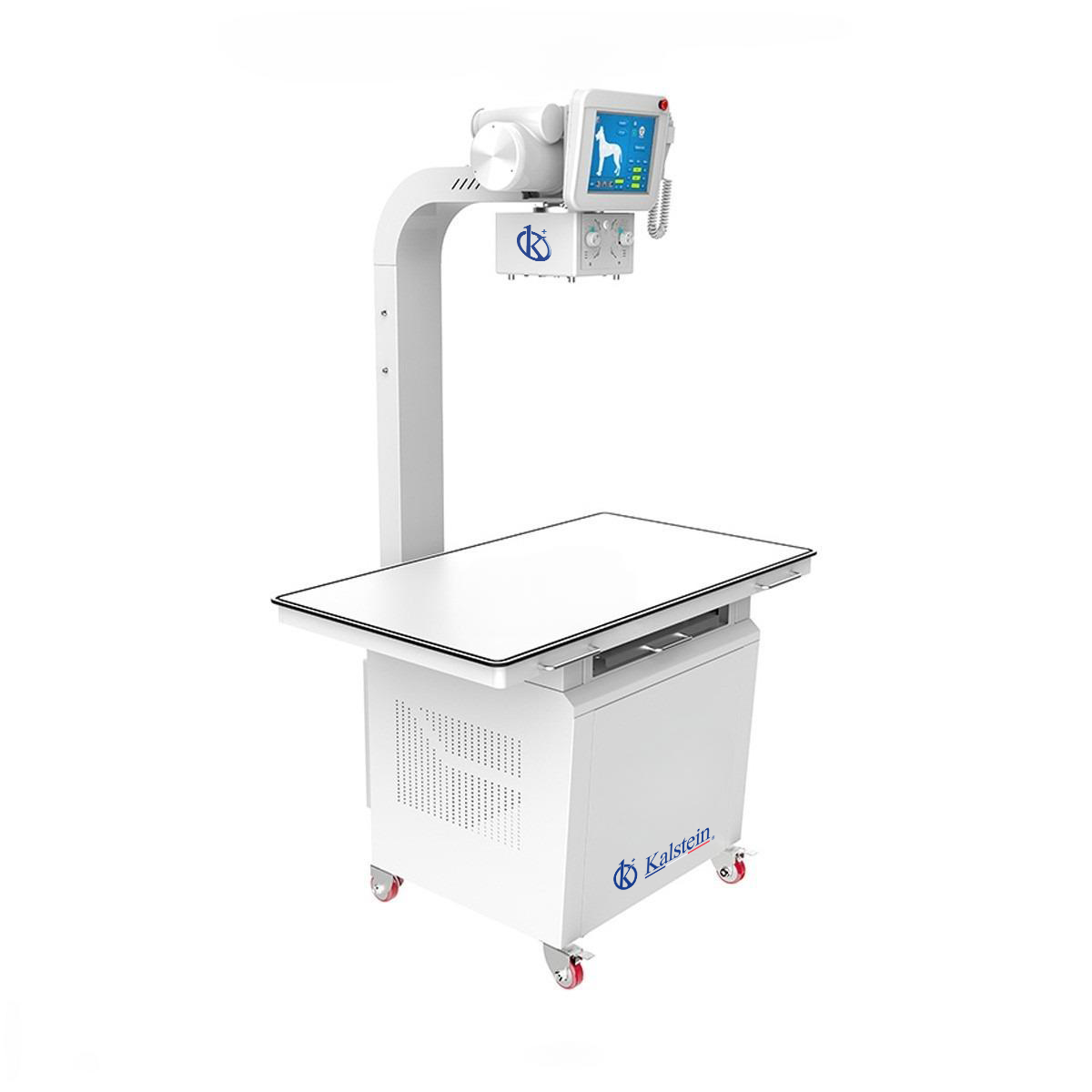

Digital Veterinary X-rays YR06162: Technical Overview and Specifications Comparison
The Digital Veterinary X-rays YR06162 represents a significant advancement in veterinary imaging technology. With its high-frequency generator and advanced imaging capabilities, it is designed for effective radiography in various veterinary applications. This article aims to provide a comprehensive overview of the YR06162 model, including its specifications, market price, and practical usage recommendations, ensuring that veterinary professionals make informed decisions.
Product Description
The YR06162 model is equipped with a plethora of features designed to enhance the veterinary imaging process. Below is a detailed technical specifications comparison table of the YR06162.
| Specification | Details |
|---|---|
| Model | YR06162 |
| Maximum Output Power | 16 kW |
| Input Voltage Range | AC 220V±22V |
| Applicable Support | Radiography |
| Inverter Frequency | ≥30kHz |
| Tube Voltage Range | 40kV~125kV |
| Range of Tube Current | 16~200mA |
| Exposure Time Range | 0.0025s~6.4s |
| mAs Range | 0.5mAs~320mAs |
| Communication Interface | RS-232 |
| Max. Tube Voltage | 125 kV |
| Focus (Small/Large) | Small focus: 1.0mm / Large focus: 2.0mm |
| Anode Input Power | Small focus: 20KW / Large focus: 40KW |
| Anode Speed | 2800 R/M |
| Target Angle | 17.5° |
| Anode Heat Content | 100kJ(140kHU) |
Market Price
The current market price for the Digital Veterinary X-ray YR06162 is approximately $15,600. This price reflects the advanced technology and features available in this model, making it a worthwhile investment for veterinary practices seeking high-quality imaging capabilities.
Frequently Asked Questions
What is the maximum output power of the YR06162 model?
The maximum output power of the YR06162 model is 16 kW, which allows for efficient imaging across various veterinary applications.
What is the tube voltage range for radiography?
The tube voltage range for radiography in the YR06162 model is from 40kV to 125kV, offering flexibility for different imaging needs.
How does the YR06162 support communication with other systems?
The YR06162 model supports communication through an RS-232 interface, allowing for seamless integration with existing veterinary software systems.
What are the focus options available in the YR06162?
The YR06162 offers both small focus (1.0mm) and large focus (2.0mm) options, catering to diverse imaging requirements.
What is the exposure time range for this digital X-ray system?
The exposure time range for the YR06162 is between 0.0025 seconds and 6.4 seconds, accommodating a variety of imaging scenarios.
What are the additional features of the YR06162 model?
This model includes features such as automatic capacity lock, automatic fault diagnosis, and self-protection mechanisms to enhance user safety and operational efficiency.
Pros and Cons
Like any advanced medical technology, the Digital Veterinary X-ray YR06162 has its strengths and weaknesses. Here is a brief overview:
- Pros:
- High output power for effective imaging.
- Wide range of tube voltage for versatile applications.
- User-friendly interface with RS-232 communication.
- Automatic fault diagnosis enhances operational safety.
- Cons:
- Higher initial investment cost compared to traditional systems.
- Requires training for optimal use of advanced features.
Field Usage
The Digital Veterinary X-rays YR06162 is designed for use in veterinary clinics and animal hospitals where high-quality imaging is essential for accurate diagnosis. Its range of features allows veterinarians to perform various imaging procedures, including examinations on small and large animals. The model's advanced capabilities support both routine check-ups and emergency diagnostics, making it an invaluable tool in veterinary practice.
Recommendations
For veterinary professionals considering the YR06162 model, it is recommended to ensure that staff are adequately trained to utilize the advanced features offered. Regular maintenance and calibration will also be necessary to sustain optimal performance. Moreover, integrating the system with existing digital record-keeping systems can enhance workflow efficiency.
