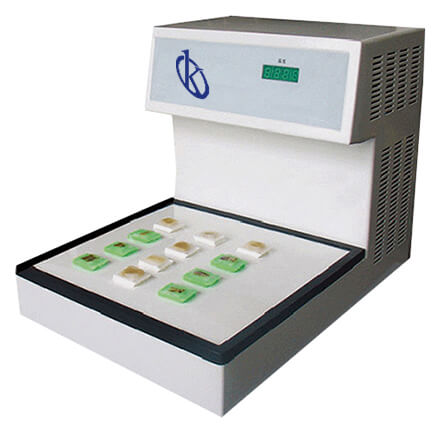

Cooling Plate YR440: Installation and Setup Guide 2026
The Cooling Plate YR440 is an essential tool in histology laboratories, playing a crucial role in the cooling process required to achieve high-quality paraffin block sections. This article aims to provide a comprehensive guide to the installation and setup of the YR440 model, ensuring that laboratory operators can maximize its features for optimal performance.
Understanding the Importance of Cooling in Histology
Cooling is a fundamental step in histological procedures, as it significantly affects the quality of tissue sectioning. The YR440 model utilizes advanced cooling technology to efficiently lower the temperature of paraffin blocks, enabling cleaner and more precise cuts. The improved cooling process not only facilitates the cutting of thinner sections but also helps maintain the integrity of the samples by preventing cracks and inconsistencies.
Technical Specifications of the YR440
| Model | YR440 |
|---|---|
| Cooling Plate Area | 320x300mm |
| Voltage | AC220V 50Hz, AC110V 60Hz |
| Power | 300W |
| Dimensions | 590×345×385 mm (Width×Depth×Height) |
| Weight | 27 kg |
Unboxing and Initial Setup of the YR440
When you first receive the YR440, it is essential to follow a systematic approach for unboxing and initial setup:
- Unboxing Checklist: Verify that all components (Cooling Plate, power cord, user manual) are included.
- Inspect for Damage: Check for any visible damage during shipping.
- Placement: Choose a stable, flat surface in a well-ventilated area away from direct sunlight.
- Leveling: Ensure that the unit is level to avoid operational issues.
Power-Up Sequence and Calibration
To ensure the YR440 operates correctly, follow these power-up sequence steps:
- Connect the Power Cord: Ensure the cooling plate is connected to the proper power source.
- Turn On the Unit: Locate the power switch and turn on the unit.
- Temperature Calibration: Adjust the cooling temperature settings as per the requirements of your samples.
Common Setup Errors and Troubleshooting
Operators may encounter some common setup errors. Here are a few issues and their solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Unit Does Not Power On | Power connection issue | Check power cord and outlet |
| Temperature Not Reaching Set Point | Calibration error | Perform a recalibration |
| Inconsistent Cooling | Environment too hot | Relocate to a cooler area |
Site Requirements for Optimal Performance
Before installation, ensure that the site meets the following requirements:
- Temperature Range: Ideal operating temperature is between 15°C and 30°C.
- Humidity: Maintain humidity levels between 30% and 70%.
- Voltage Stability: Ensure stable AC220V or AC110V power supply.
Frequently Asked Questions
How do I ensure the temperature settings for the YR440 are correct?
To ensure correct temperature settings, always refer to the user manual for recommended settings based on the type of samples you are using. Conduct a calibration check if temperatures deviate from expected values.
What maintenance is required for the YR440?
Regular cleaning of the cooling surface and periodic checks of the electrical components are crucial for maintaining optimal performance. Follow the maintenance schedule provided in the user manual.
Can the YR440 be used for different types of paraffin blocks?
Yes, the YR440 is designed to accommodate various types of paraffin blocks, making it versatile for different histological applications.
What should I do if the YR440 generates error codes?
Refer to the user manual's troubleshooting section to identify the meaning of the error codes and follow the recommended steps to address the issues.
Is the YR440 energy efficient?
Yes, the YR440 is designed to be energy-efficient, consuming only 300W, while delivering effective cooling performance to facilitate laboratory operations.
Where can I request a quote for the YR440?
You can easily request a quote for the YR440 by contacting our sales team through the appropriate channels.
Final Thoughts on the YR440 Cooling Plate
By following this guide, operators can ensure that the Cooling Plate YR440 is installed and set up correctly, thus optimizing its performance for histological applications. This model's innovative cooling technology significantly contributes to the quality of tissue sectioning and enhances laboratory efficiency.
