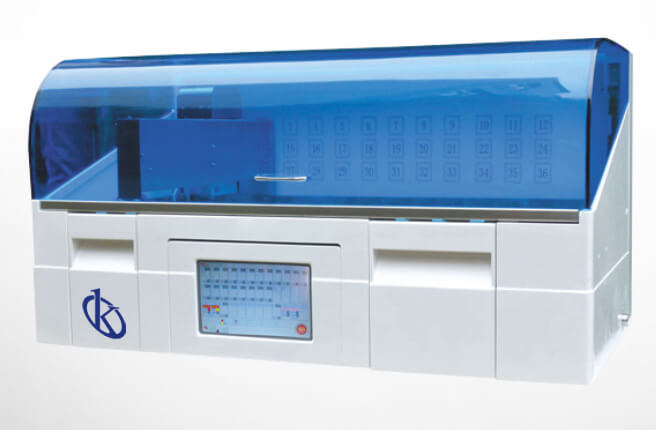

Automatic Slide Staining YR435-1: Principles of Operation and Scientific Foundations
The Automatic Slide Staining YR435-1 is an innovative laboratory instrument designed to enhance the efficiency of slide staining processes. Understanding the principles of operation and the scientific foundations of this model will ensure optimal performance and results in your laboratory.
Understanding the Principle of Operation
The YR435-1 operates based on fundamental physical and chemical principles that govern staining processes. The primary function is to automate the application of staining reagents to microscopic slides, providing consistent results.
This automatic slide stainer utilizes a mechanical arm to manipulate the staining racks, ensuring precise movement. The mechanism's speed and efficiency are designed to optimize staining time without compromising quality.
Scientific Foundations of Staining Techniques
The chemistry behind slide staining often involves interactions between biological tissues and various chemical agents. The YR435-1 leverages these interactions by applying reagents in controlled environments, enabling effective staining.
Key principles include:
- Diffusion: The movement of staining agents into tissues is crucial for achieving optimal coloration.
- Adsorption: Certain dyes adhere to tissue components, providing contrast necessary for microscopic examination.
- pH and Temperature Control: These variables significantly impact the staining process and are monitored in the YR435-1.
Technical Data Table for YR435-1
| Model | YR435-1 |
|---|---|
| Staining Capacity | 400 slides per hour |
| Staining Racks Capacity | 30 slides |
| Loading Capacity | Up to 10 different racks for various programs (continuous loading) |
| Station Capacity | 36 |
| Reagent Station Capacity | 26 |
| Washing Tank Capacity | 5 |
| Reagent Station Volume | 500 ml |
| Discharge Capacity | 2 |
| Voltage | 220VAC ± 10%, 50 / 60HZ |
| Power Consumption | 200W |
| Overall Dimensions | 1050 mm × 615 mm × 590 mm (Width x Depth x Height) |
Common Installation and Setup Procedures
Proper installation and setup of the YR435-1 are crucial for optimal performance. Here are key steps to follow:
- Unboxing Checklist: Ensure all components are included, such as power cords, brackets, and manuals.
- Anchoring and Leveling: Secure the unit to prevent movement during operation. Use a level to ensure accuracy.
- Power-Up Sequence: Connect the power source and follow the manual for the initial startup procedure.
- Calibration: Perform a calibration check to confirm accurate staining results.
- Common Setup Mistakes: Avoid overloading the racks and ensure that reagents are correctly placed.
Symptom and Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| No Power | Power cord disconnected | Check the power connection |
| Error Code E-03 | Mechanical arm jammed | Inspect and clear any obstructions |
| Inconsistent Staining | Improper reagent concentration | Verify and adjust reagent levels |
Frequently Asked Questions
What are the key features of the YR435-1 Automatic Slide Stainer?
The YR435-1 features a touchscreen interface for easy operation, the ability to run 10 staining programs simultaneously, and a fast mechanical arm for efficient processing.
How does the YR435-1 ensure consistent staining results?
It maintains precise control over staining times, reagent volumes, and environmental conditions, preventing common errors associated with manual staining.
What types of staining protocols can be programmed into the YR435-1?
The YR435-1 can accommodate both conventional and special staining protocols, making it versatile for various laboratory applications.
How often should the reagents be replaced in the YR435-1?
Reagents should be checked regularly and replaced according to the manufacturer's recommendations or when performance declines.
Can the YR435-1 be used in different laboratory settings?
Yes, the YR435-1 is suitable for clinical, educational, and research applications, adapting to various protocols required in these environments.
What maintenance is required for the YR435-1?
Regular cleaning, calibration checks, and inspections of mechanical components are essential to maintain optimal performance.
How can I request a quote for the YR435-1?
You can easily request a quote through our online platform, ensuring you receive the most competitive price for the YR435-1.
