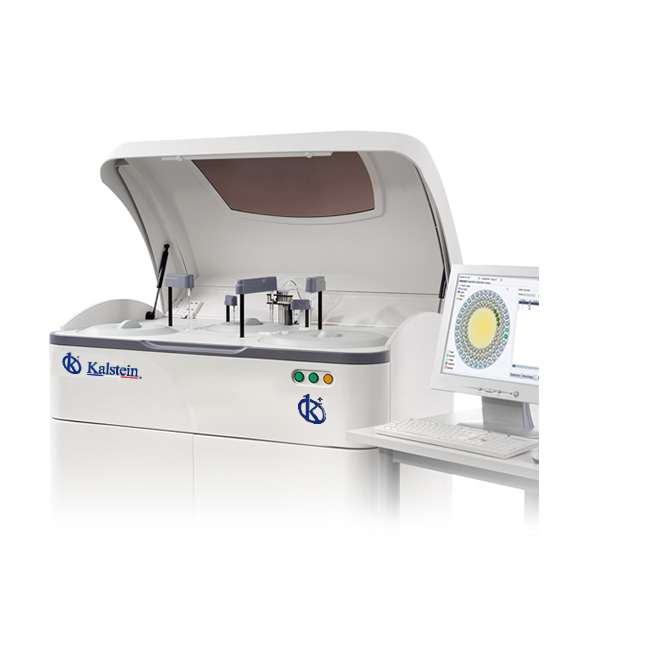

How the YR06076 Automatic Chemistry Analyzer Operates: Scientific Principles and Applications
The YR06076 Automatic Chemistry Analyzer represents a significant advancement in laboratory technology, combining high performance with accuracy in chemical analysis. This article delves deep into the principles of operation, scientific fundamentals, and practical applications of this sophisticated instrument, providing valuable insights for laboratory operators and technicians.
Understanding the Principle of Operation
The YR06076 employs a sophisticated system of optical measurements based on the principles of photometry. The analyzer utilizes a halogen tungsten lamp as its light source, emitting light across a spectral range from 340nm to 795nm. The system operates on the principle of absorbance, measuring how much light is absorbed by a sample solution at specific wavelengths.
Absorbance (A) is calculated using the Beer-Lambert law, which states that A = log(I0/I), where I0 is the intensity of the incident light, and I is the intensity of the transmitted light. This relationship allows the YR06076 to quantify the concentration of analytes in solution, making it an essential tool in various laboratory settings.
Technical Specifications of the YR06076
| Specification | Details |
|---|---|
| Model | YR06076 |
| Tests per Hour | 560 |
| Washing System | 8 Steps |
| Power Supply | 100-240 VAC 50/60 Hz, 1500w |
| Temperature Range | 100℃ to 300℃ |
| Humidity Range | 40% to 85% |
| Dimensions | 1150mm(L) x 726.5mm(W) x 1150mm(H) |
| Light Source | Halogen Tungsten Lamp |
| Photometry Type | Grid Photometry |
| Wavelengths | 340nm, 405nm, 450nm, 505nm, 540nm, 570nm, 600nm, 635nm, 670nm, 700nm, 760nm, 795nm |
| Absorption Range | 0 to 2.500 Abs |
| Resolution | 0.0001 Abs |
Applications in Laboratory Settings
The YR06076 is particularly designed for high-demand laboratory environments such as clinical, industrial, and research laboratories. Its ability to perform 560 tests per hour makes it an invaluable asset in clinical settings where rapid test results can impact patient care. The analyzer's spectral coverage enables it to assay a multitude of analytes, making it versatile across different applications.
In industrial laboratories, the YR06076 can be utilized for quality control, ensuring that products meet certain chemical specifications. Research facilities benefit from its precise measurements, facilitating accurate data collection in experiments.
Key Features of the YR06076
Several features distinguish the YR06076 from other analyzers. The built-in automatic washing system, which operates in 8 steps, minimizes contamination between tests, thereby ensuring the accuracy and purity of each result. This feature is critical in laboratories where cross-contamination can lead to erroneous results.
Additional modules, such as the optional ISE module for potassium (K), sodium (Na), and chloride (Cl) measurements, enhance the analyzer's capabilities, allowing laboratories to customize the instrument to meet their specific needs.
Maintenance and Calibration
Regular maintenance and calibration of the YR06076 are essential for ensuring accurate performance. Following the manufacturer's guidelines for routine checks, including cleaning of optical components and verification of calibration standards, will extend the lifespan of the device and maintain its reliability.
Operators should establish a maintenance schedule that includes cleaning the optical path, checking the washing system for efficiency, and confirming that all firmware is up to date. This not only enhances the operational efficiency but also prevents unexpected downtimes.
Common Troubleshooting Techniques
As with any sophisticated equipment, operators may encounter issues while using the YR06076. Common symptoms include:
- Equipment Does Not Power On: Check power connections and ensure the power source is functioning.
- Error Code E-03: This may indicate a calibration error; refer to the troubleshooting guide to reset calibration.
- Inconsistent Readings: Ensure that the sample paths are clear and check the integrity of reagents.
Frequently Asked Questions
What is the maximum number of tests the YR06076 can perform per hour?
The YR06076 can perform up to 560 tests per hour, making it ideal for high-throughput laboratory environments.
What wavelengths does the YR06076 operate at?
The YR06076 operates across a spectral range of 340nm to 795nm, covering 12 distinct wavelengths for precise analysis.
How does the automatic washing system of the YR06076 work?
The analyzer features an 8-step automatic washing system designed to minimize carryover contamination between tests, ensuring the purity of measurement results.
What are the power requirements for the YR06076?
The YR06076 requires a power supply of 100-240 VAC at 50/60 Hz, with a maximum power consumption of 1500 watts.
What maintenance is recommended for the YR06076?
Regular cleaning of the optical components, checking the efficiency of the washing system, and ensuring proper calibration are essential maintenance measures for the YR06076.
Can the YR06076 be customized with additional modules?
Yes, the YR06076 supports various optional modules, including ISE modules for measuring potassium, sodium, and chloride levels.
How can I request a quote for the YR06076?
You can request a quote by visiting the appropriate platform and providing your requirements to receive a tailored pricing proposal.
